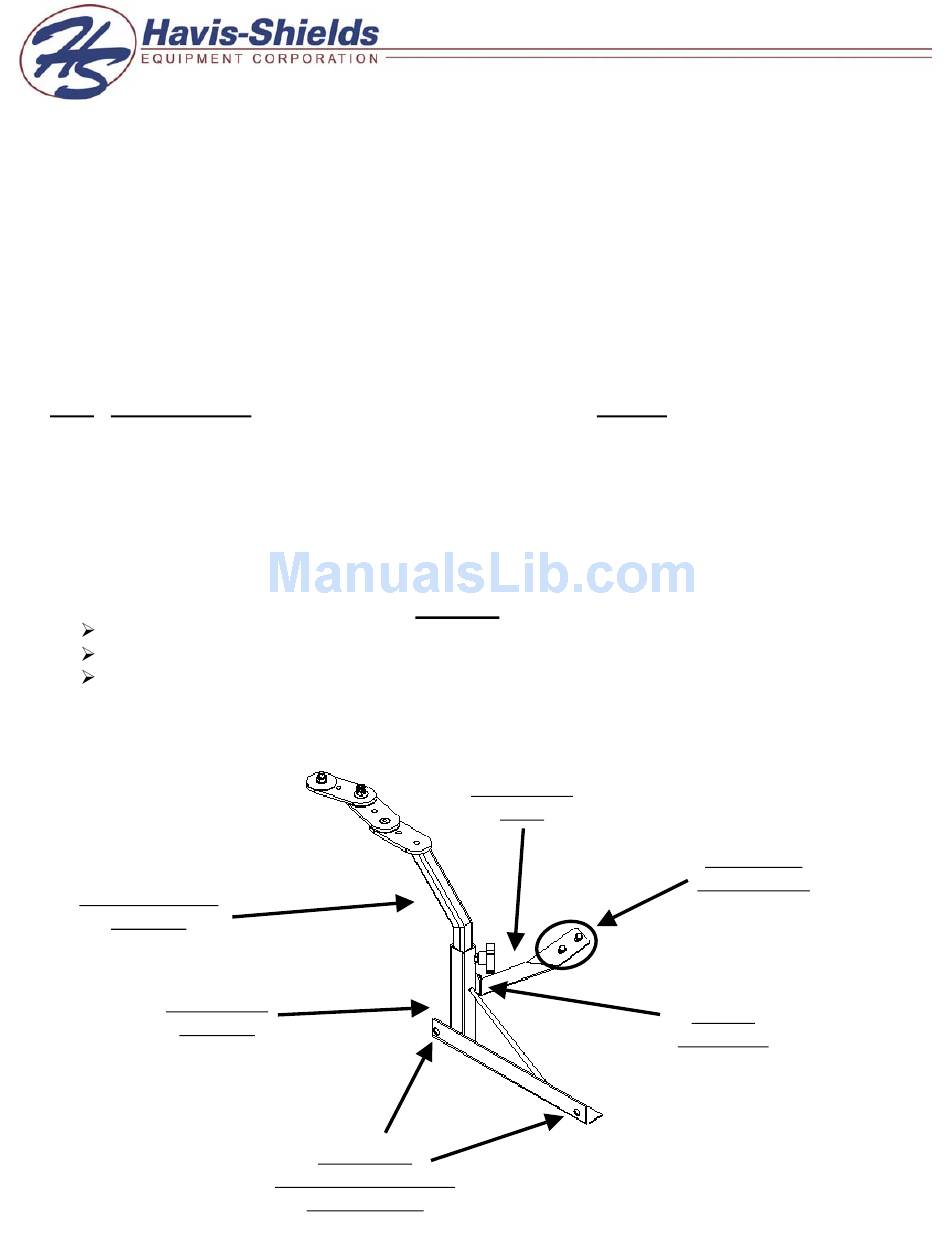

INSTALL INSTRUCTIONS C-TCB-21

TOOLS REQUIRED:

3/16" Allen wrench
3/8" Standard socket set
3/8" Metric socket set
HARDWARE & COMPONENTS:
QTY DESCRIPTION
1
Pole support assembly
1
Telescoping pole assembly
1
Side support brace
1
5/16-18 Nylock nut
1
5/16" Flat washer
2
¼" x 1" Hex head lag bolts
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
Telescoping pole
assembly
Pole support
assembly
TELESCOPING COMPUTER BASE
1998-2003 DODGE DURANGO
Always
Location of
passenger side factory
seat base bolts
Ratcheting wrench (3/8" drive)
Powered drill w/ 3/16" drill bit
Open-end wrench set
PART #
CM93071-21
CM93072-3
CM93146
GSM30017
GSM31006
GSM33060
!
Side support
brace
¼" x 1"Hex
head lag bolts
5/16-18
Nylock nut
C-TCB-21-INST-12-04
