Havis-Shields C-TCB-27 Installation Instructions

INSTALL INSTRUCTIONS C-TCB-27
DODGE RAM 2500 & 3500 PICK-UP 2003-2007

TOOLS REQUIRED:

3/16" Allen wrench
3/8" Standard Socket Set
3/8" Metric Socket Set

HARDWARE:

QTY DESCRIPTION
1 Pole support assembly
1 Telescoping pole assembly
1 Lag bolt ¼ x 1
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit

SUB ASSEMBLY:

1. Confirm receipt of all hardware and components.
2. Remove front inner and outer passenger seat bolts on
vehicle.

INSTALLATION:

1. MOUNT C-TCB-27 INTO VEHICLE:
• Position pole support assembly on top of
passenger seat base mount and align holes in
pole support assembly with holes in seat base.
• Loosely attached factory seat bolts that were
removed during sub assembly.
Tighten down factory passenger seat bolts and
•
5/16-18-nylock nut holding side support brace
to pole support assembly.
• Mount optional C-3090, computer-mounting
platform, to telescoping pole assembly using
hardware and instructions provided with
C-3090.
DODGE RAM 1500 PICK-UP 2002-2007
Always
3/8" Ratcheting Wrench
Powered drill w/ 3/16" drill bit
Open-end wrench set
PART #
CM93071-27W
CM93072-3
GSM33060
!

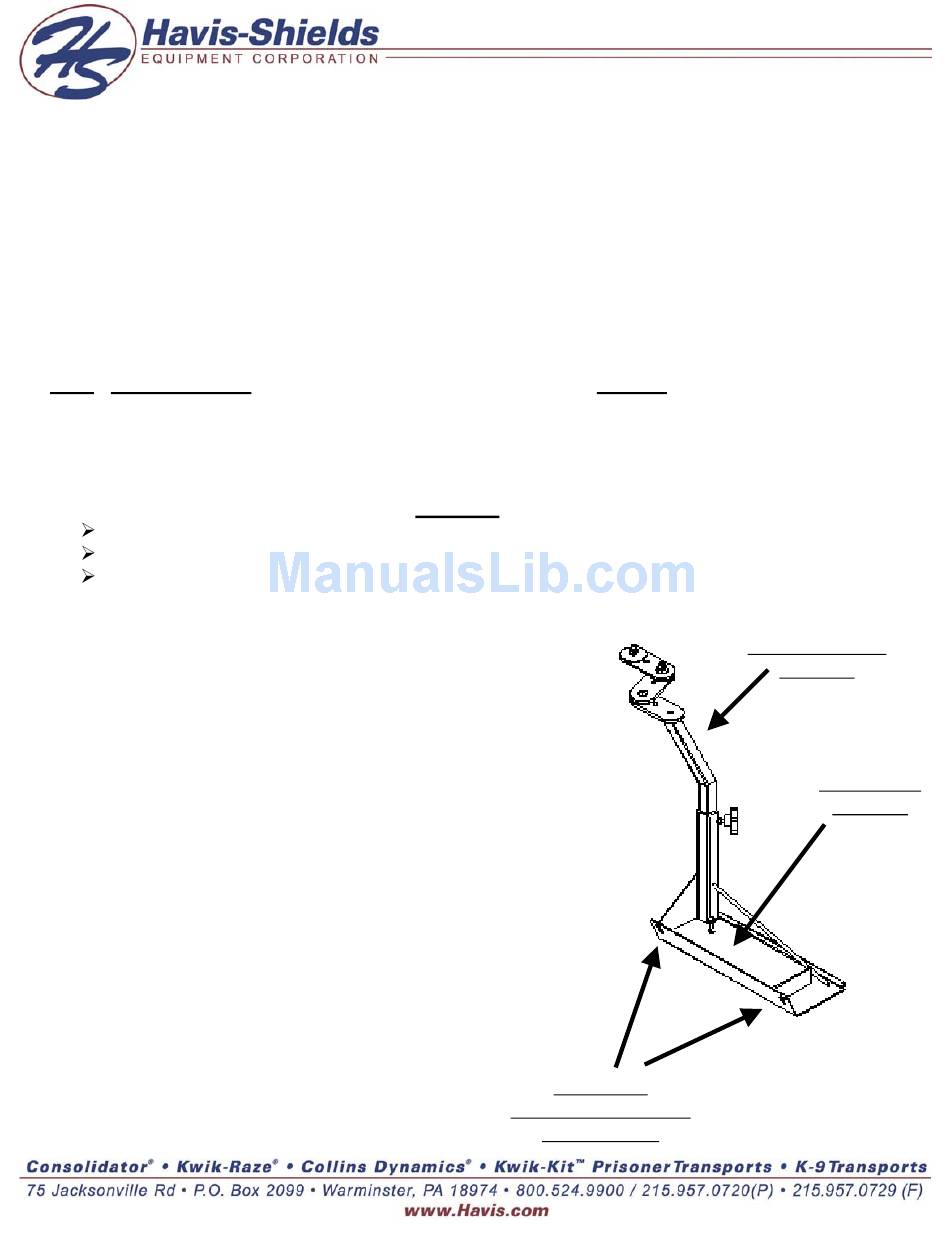

Location of
passenger side factory
seat base bolts
Telescoping pole
assembly
Pole support
assembly
C-TCB-27-INST-3-07
