INSTALL INSTRUCTIONS C-VS-1100-F150
TOOLS REQUIRED:
Metric Socket Set
Ratcheting Wrench
Panel Pulling Tool
HARDWARE:
QTY DESCRIPTION
6
#8 x ¾" Phillip Sheet Metal Screws
1
C-HK-1 (32 Torx Screws)
SUB ASSEMBLY:
1. Remove necessary components to access mounting area.
• Armrest Pad (3 Metric Hex Head screws)
• Forward Console Face Plate (Panel Pulling Tool)
• Rear Console Face Plate (Panel Pulling Tool & 2 Metric Hex Head Screws)
INSTALLATION:
1. ATTACH HAVIS-SHIELDS CONSOLE:

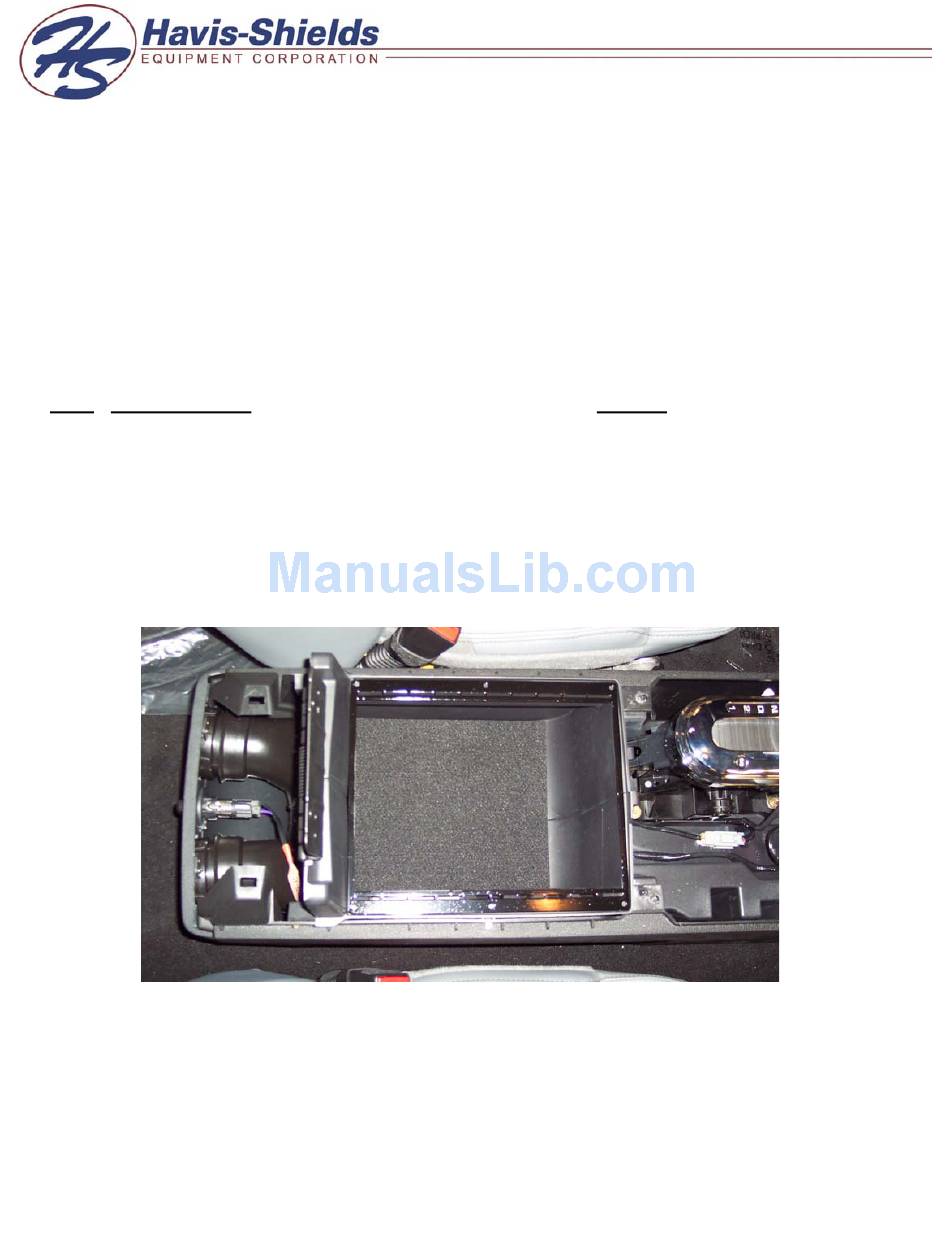

• Position console plate as shown in the above view.
• Pre-drill mounting holes with 1/8" drill bit.
• Attach console plate using #8 x ¾" Sheet Metal Screws.

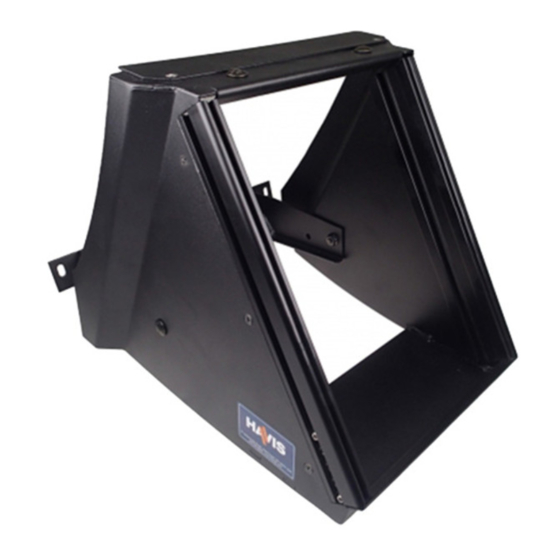

VEHICLE SPECIFIC CONSOLE
2004-2007 FORD F-150 PICK UP
1/8" Drill Bit
Phillips Screwdriver
Power Drill
PART #
GSM33189
CM86508
Advertisement
Table of Contents
Related Manuals for Havis-Shields Vehicle Specific Console C-VS-1100-F150
Summary of Contents for Havis-Shields Vehicle Specific Console C-VS-1100-F150
- Page 1 • Forward Console Face Plate (Panel Pulling Tool) • Rear Console Face Plate (Panel Pulling Tool & 2 Metric Hex Head Screws) INSTALLATION: 1. ATTACH HAVIS-SHIELDS CONSOLE: • Position console plate as shown in the above view. • Pre-drill mounting holes with 1/8” drill bit.
- Page 2 2. REPLACE COMPONENTS REMOVED IN SUB ASSEMBLY: • Replace Rear Console Face Plate. • Replace Forward Console Face Plate. • Replace Armrest Pad. 3. INSTALL CONTROLS: • Wire all controls prior to installation. Note: A hole must be drilled in the bottom of the OEM console for routing of wires. •...
