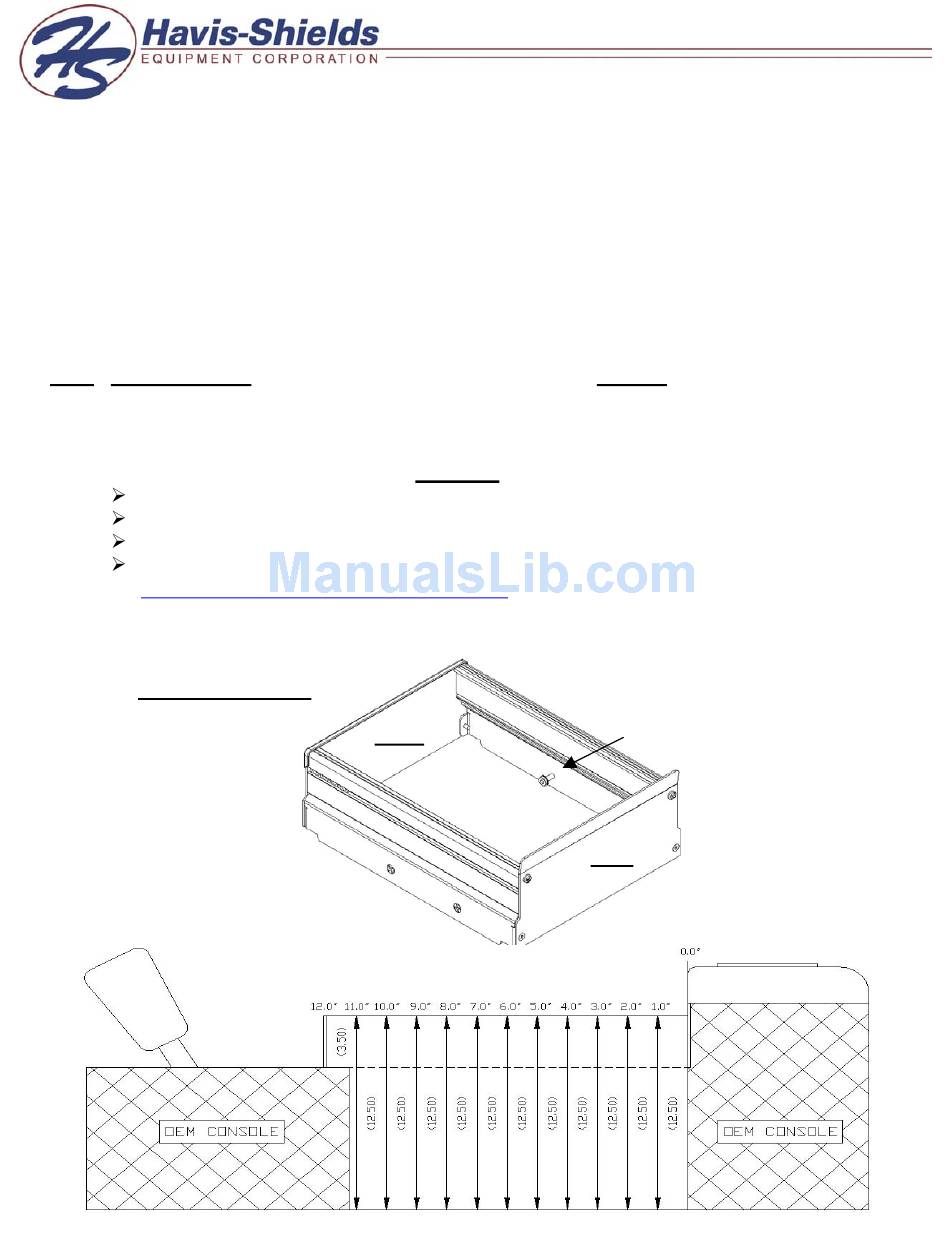

INSTALL INSTRUCTIONS C-VS-1200-EXPD-1

2007-2008 FORD EXPEDITION (w/ Console shifter)

TOOLS REQUIRED:

Ratcheting wrench

Sockets Set

Panel pulling tool

HARDWARE:

QTY DESCRIPTION

#10 x ½" Phillips machine screw

#10 Keps nut

Read all instructions before installing any Havis-Shields Equipment Corp products.

Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!

Use hardware provided with install kit

For product support, visit the Install Instructions Section of our website at

http://havis.com/Installation/Installation.html

C-VS-1200-EXPD-1

VEHICLE SPECIFIC CONSOLE

Always

Front

Screwdriver set

T-20 torx bit

PART #

GSM33118

GSM30028

#10 x ½" Machine

screws and keps nuts

Rear

Need help?

Do you have a question about the C-VS-1200-EXPD-1 and is the answer not in the manual?

Page 1 QTY DESCRIPTION #10 x ½” Phillips machine screw #10 Keps nut Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit For product support, visit the Install Instructions Section of our website at http://havis.com/Installation/Installation.html...
Page 2 View of vehicle w/ full console Remove accessory pocket liner & console shifter as shown above Remove hex head screw from CAREFULLY remove trim Remove trim from around the accessory pocket from around gear shifter cup holders Remove trim panel from View of panel removed Remove hex head screw from console.
Page 3 Remove (4) hex screws holding Remove the rear OEM cup Pry up on accessory pocket trim armrest pad from hinge holder panel and remove Remove hex head screws holding Remove hex head screws side of accessory pocket holding rear of accessory pocket Remove hex head screws holding Completely remove the container Parts removed from OEM...
Page 4 Replace the trim panel Replace trim panel around Replace the trim panel around previously removed earlier factory cup holder gear shifter Replace rear cup holders Replace hex head screw on Position console so holes in side accessory pocket of console align w/ holes in factory console Install #10 x ½”...
