Havis-Shields 2006-2007 Dodge Charger and Magnum C-VS-2400-CHGR Install Instructions

For 2006-2007 dodge charger and magnum, 2008 dodge charger and magnum

Advertisement

C-VS-2400-CHGR & C-VS-2400-CHGR-1
2006 – 2007 DODGE CHARGER and MAGNUM
2008 DODGE CHARGER and MAGNUM

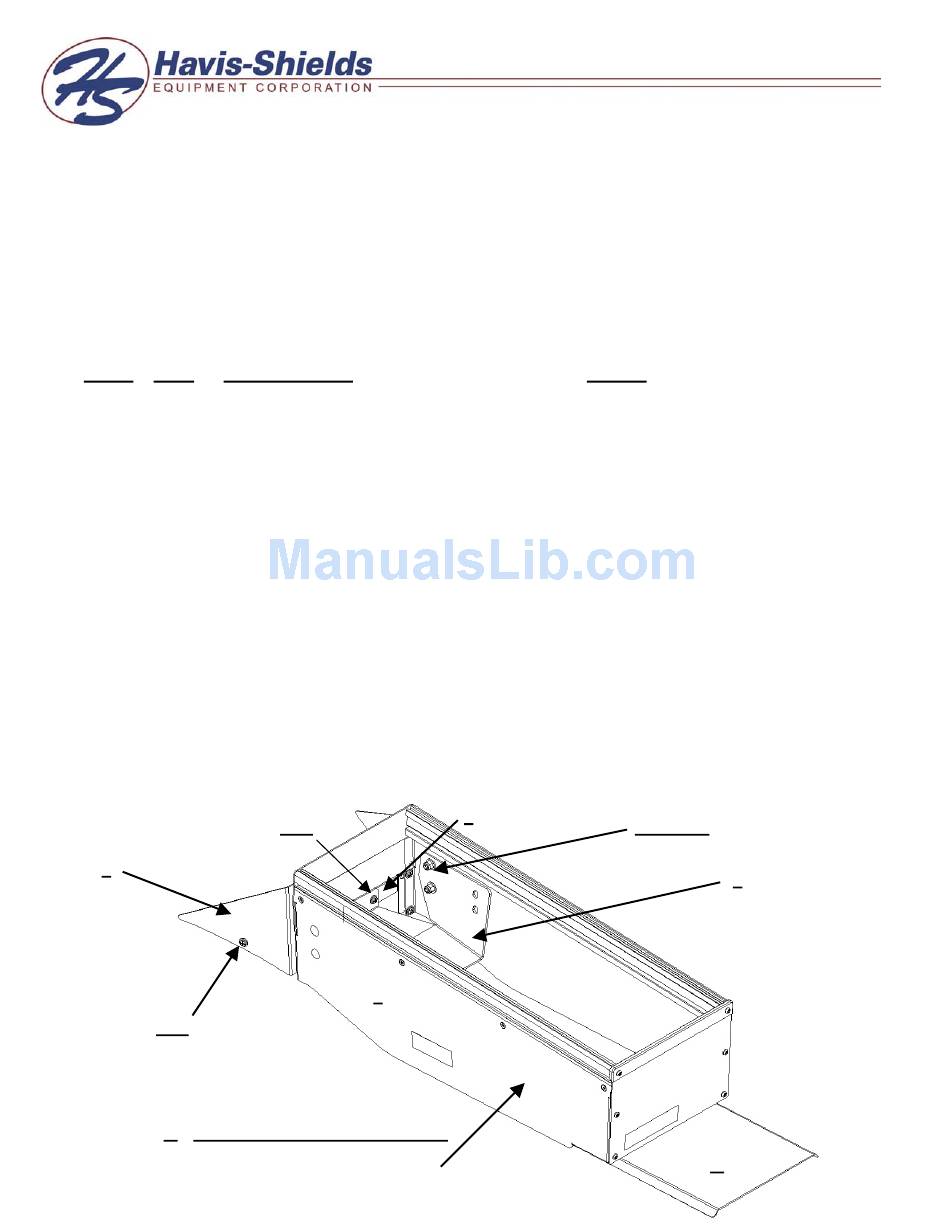

TOOLS REQUIRED:

Ratcheting wrench
Sockets - 7/16", 10mm, 8mm

HARDWARE:

ITEM
QTY
DESCRIPTION
1
1
Console housing assembly
2
1
Front support bracket
3
2
Side trim panels - 2006 – 2007 Charger
3
2
Side trim panels - 2008 Charger
4
1
Front floor bracket
5
1
Sensor guard
6
1
Rear floor panel
7
6
#10 x ½" machine screws
8
2
#10 keps nuts
9
4
#10 flat washers
10
4
¼" flat washer
11
4
¼" x ½" carriage bolt
12
4
¼" Nylock nut
2
¼" x ¾" self threading bolt
2
¼" x 1" fender washer
2
6mm hex nut
1
1-1/16" diameter plug
1
Hardware Kit
1
Torx Hardware Kit
3
7, 9
5 - Not shown, approximate location
INSTALL INSTRUCTIONS
7, 9
1
Screwdriver set
T-20 Torx bit
PART#
C-VS-2400-CHGR-H
CM001593
CM001598-D and P
CM002164 and CM002165
CM001595
CM001638
CM001642
GSM33118
GSM30028
GSM31003
GSM31005
GSM31999
GSM30016
GSM33060-1
GSM31014
GSM30201
GSM20017-1
C-HK
C-HK-1
2
10, 11, 12
4
6
