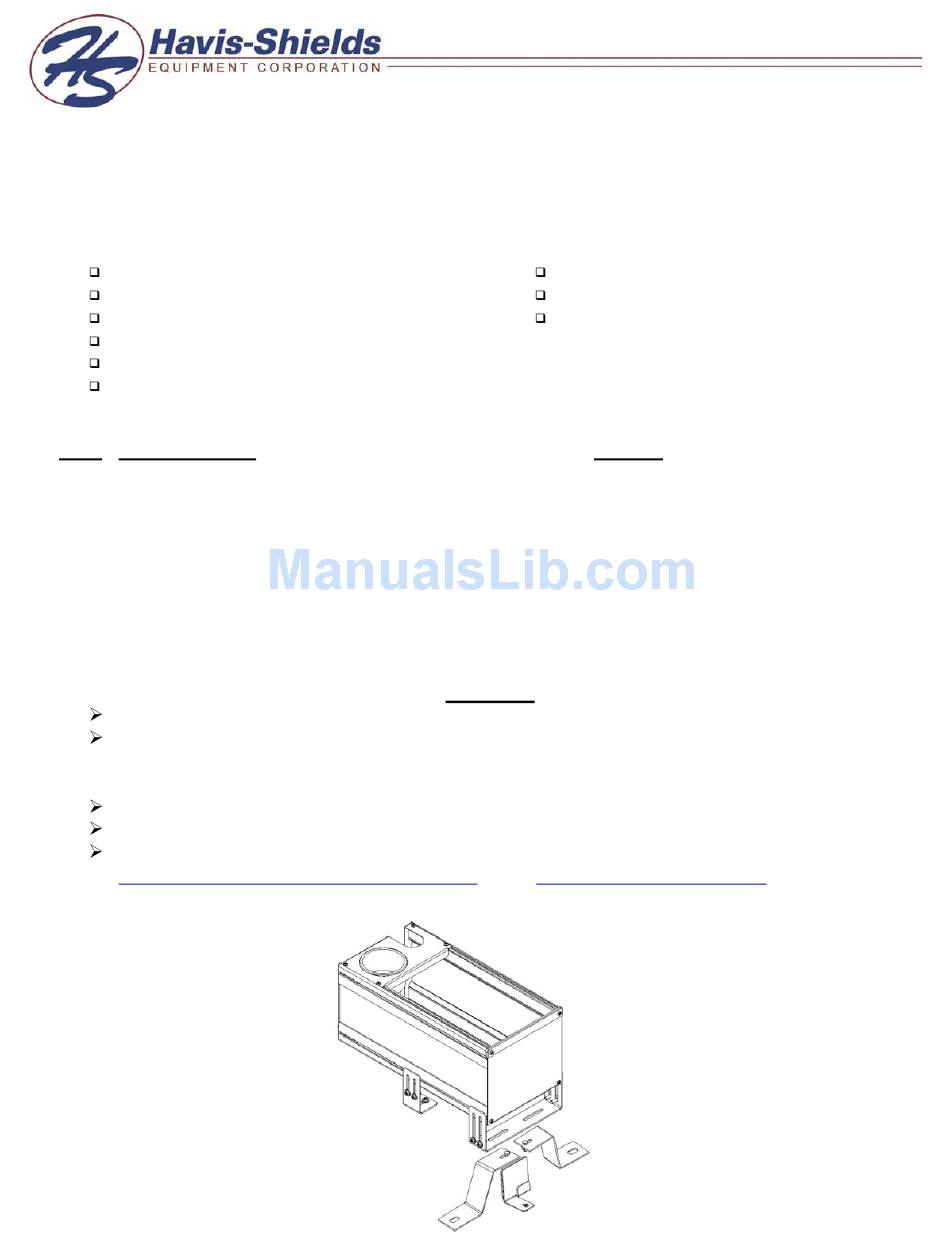

INSTALL INSTRUCTIONS C-VS-1300-TBZ
2006-2008 CHEVROLET TRAILBLAZER

TOOLS REQUIRED:

Phillips screwdriver
T-15 Torx driver
T-20 Torx driver
7/16 wrench
Ratchet wrench
7/16" socket

HARDWARE:

QTY DESCRIPTION
1 Trailblazer vehicle specific console
1 Bail bracket
1 Rear hump bracket set
1 Duct block off plate
2 Side "L" brackets
1 Console hardware kit
1 Torx screw kit
1 #10x1/2 PPHSMS (Block off plate screw)
Read all instructions before installing any Havis-Shields Equipment Corp products.
Disconnect the vehicle battery. Removing seat bolts on some vehicles may give the vehicles
computer a false reading, causing a warning light on the instrument cluster. This requires the
vehicles' computer to be reset with a vehicle diagnostics tool.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use only hardware provided with install kit.
For product support, visit the Install Instructions Section of our website at
http://havis.com/Installation/Installation.html, email
1-800-524-9900 and ask for technical support.
VEHICLE SPECIFIC CONSOLE
Always
15mm socket
Jig Saw or plastic cutting tool
Eye goggles
PART #
C-VS-1300-TBZ-H
C-B1
C-B27
CM001516
CM93594
C-HK
C-HK-1
GSM33194
!
