Summary of Contents for Audionet AMP II G2

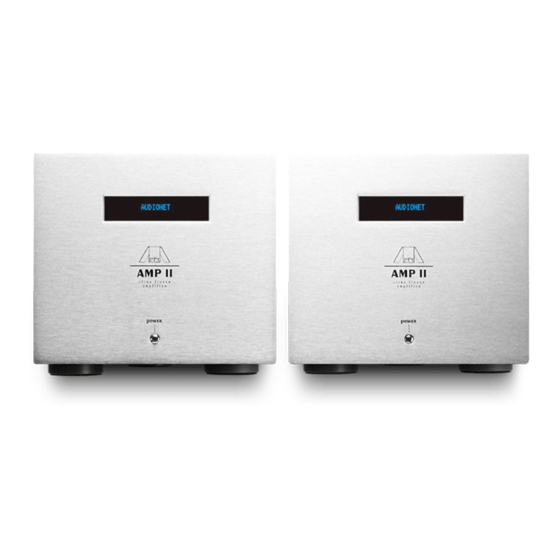

- Page 1 P II G2 Mono - Amplifier Owner's Manual...
- Page 2 Owner's manual The Audionet-Team would like to congratulate you to purchasing the Audionet AMP II G2! Your Audionet AMP II G2 is designed for abso- lutely natural music reproduction at highest user comfort embedding total system security. Please read this manual before first use to make sure that you are able to use all provided functions of your new amplifier.
-
Page 3: Setting Up Your System
Placing Your Audionet AMP II G2 have the perfect dimensions to be placed near your speakers. But positioned side by side both AMP II G2 are 43 cm in width (standard width). Do not cover the top to prevent the amplifiers from overheating! -
Page 4: Inputs And Outputs
Bi-Wiring Your Audionet AMP II G2 supports bi-wiring of loudspeakers. Connect your speaker with two separate cables to each AMP II G2. Using the bi- wiring method to connect your speakers can lead to enhanced sound qual- ity. - Page 5 For switching on and off please press the “power” button at the front of the AMP II G2. The main switch at the back is only to be used if you are absent for a longer time. It must only be operated while the AMP II G2 is...
- Page 6 "Warm Up" Countdown While you are absent your AMP II G2 can switch on automatically and will be pre-heated for use when you get back. To activate this feature please use a long key press on the "power" button at the front. The display changes to show the countdown timer.
-
Page 7: Protection System
Protection system Your Audionet AMP II G2 and your loudspeakers are protected by a complex protection circuitry. The display will report in clear every de- tected error: § Overload: Shorted loudspeaker cables or defective loudspeaker (your AMP II G2 is capable of driving even 1W loads) §... - Page 8 To change settings use short or long key presses on the "power" button at the front of the AMP II G2. Switch on your AMP II G2 and hold the but- ton pressed for at least 2 seconds to enter the menu.
- Page 9 OFF IN 5 MIN automatic power down OFF IN 15 MIN OFF IN 60 MIN OFF IN 120 MIN SET OFF TEXT AUDIONET Select text to be displayed in stand by mode EXIT... Legend: long key press...
-
Page 10: Technical Information
Class A mode. Peak level meter In order to determine the impulse peak level the AMP II G2 detects a voltage maximum and measures the current flowing at that point of time. By that impedance critical loudspeakers are processed automatically and according to that a higher peak level is displayed. -
Page 11: Security Advice
Security advice ¨ Avoid packaging material, especially plastic bags, to come into children’s hands. ¨ Store and operate the unit in a dry room at a reasonable room temperature. ¨ Avoid moisture or any liquid to get into the unit. ¨... -
Page 12: Technical Data
350 Watt in 4W 550 Watt in 2W 750 Watt in 1W, all true RMS at 1% THD Bridged operations 1400 Watt in 4W, two AMP II G2 per channel Frequency response 0 - 300.000Hz (-3dB) Damping factor > 1.800 at 10kHz, (8W) >...
