4 .

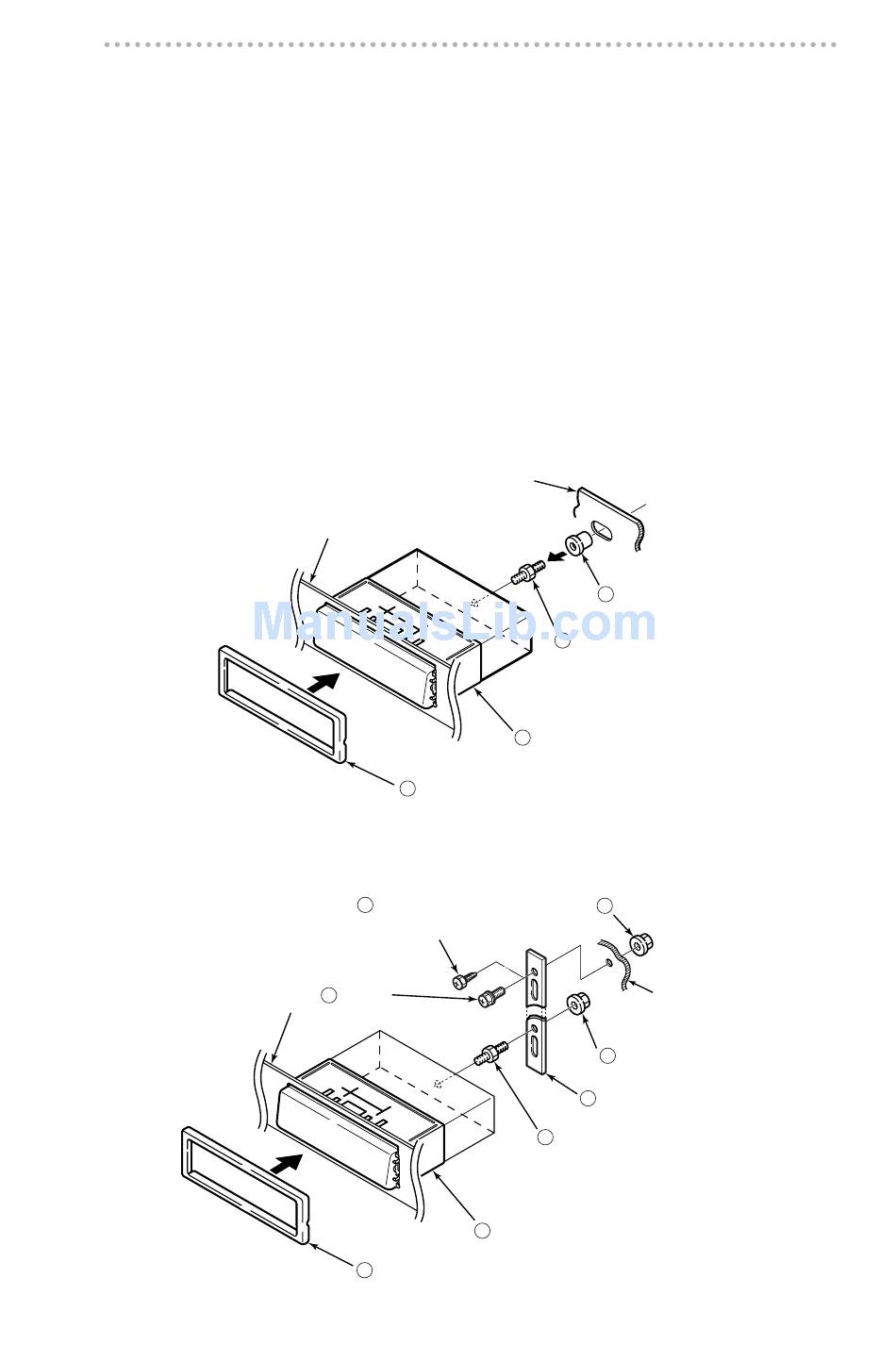

Mount the stud bolt to the main unit.
5 .
Insert the main unit into the mounting sleeve
until it locks in place.
6 .
Fasten the rear of the main unit using either
method [A] or [B].
Select method [A] or [B] to suit the interior configuration
of the vehicle.
7 .
Install the bezel on the main unit.
[A]
DASH BOARD
OR CONSOLE
[B]
DASH BOARD
BOLT
10
OR CONSOLE
(5 x 20mm)
METAL OF
VEHICLE
2
BEZEL
5
SELF TAPPING
7
SCREW (6 x 16mm)
2
MOUNTING SLEEVE
5
BEZEL
Mounting instruction
6
BUSHING
STUD BOLT
8
MOUNTING SLEEVE
NUT (5mm)
11
METAL OF
VEHICLE
NUT (5mm)
11
REAR BRACKET
4
STUD BOLT
8
