Mounting instruction

Mounting instruction

Mounting the main unit

1 .
2 .
DASH BOARD
OR CONSOLE
3 .
98

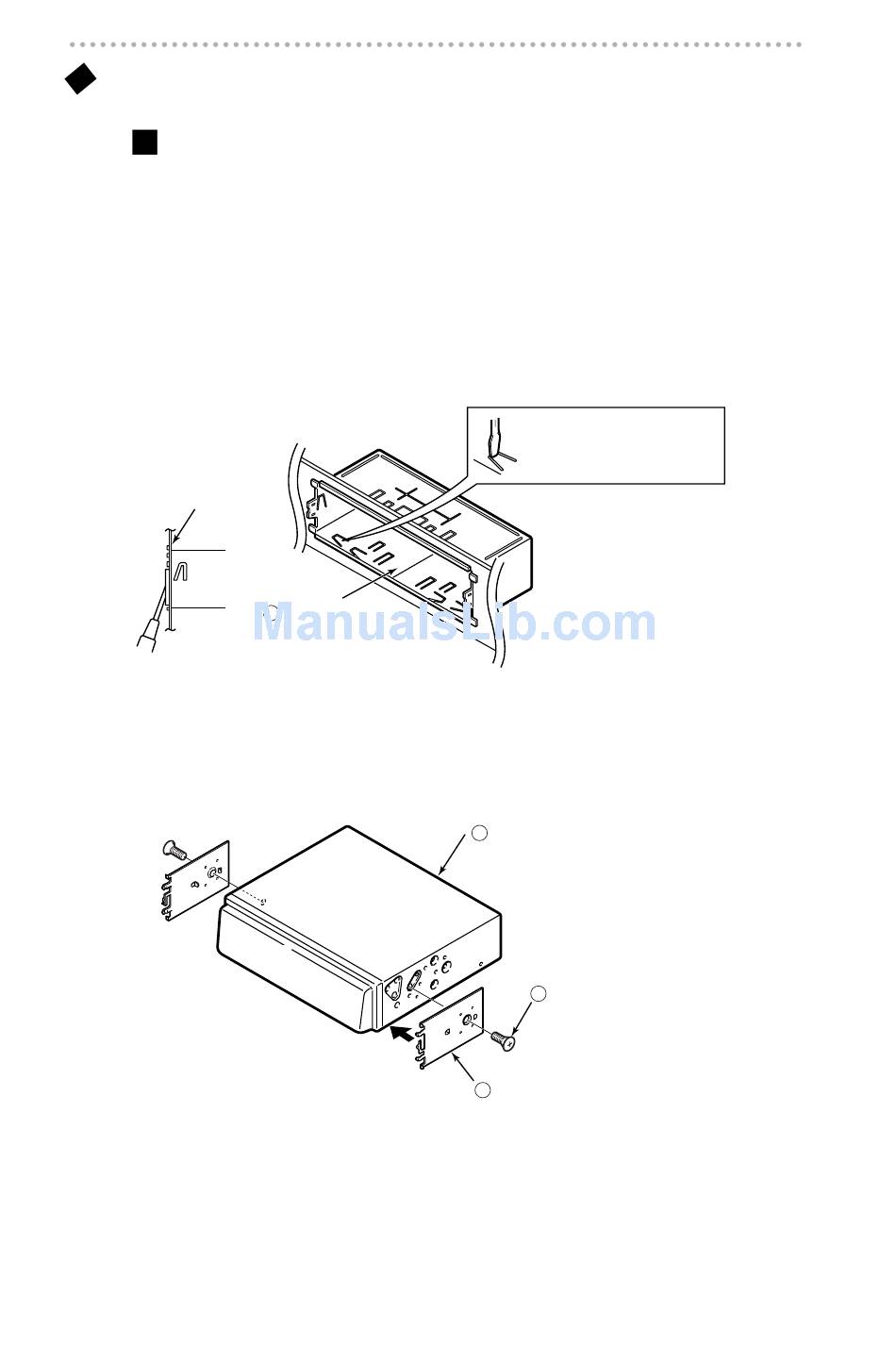

Insert the mounting sleeve into the opening in
the vehicle console.
Use a screwdriver or the like to bend the tabs in
the mounting sleeve to secure the mounting
sleeve.
MOUNTING
2
SLEEVE
Attach the side brackets to the main unit using
flathead screws.
BEND THE MOUNTING
TABS.
MAIN UNIT
1
FLAT HEAD
9
SCREWS [ x 2 ]
(5 x 8mm)
3
SIDE BRACKETS [ x 2 ]
