Page 1: Instruction Manual

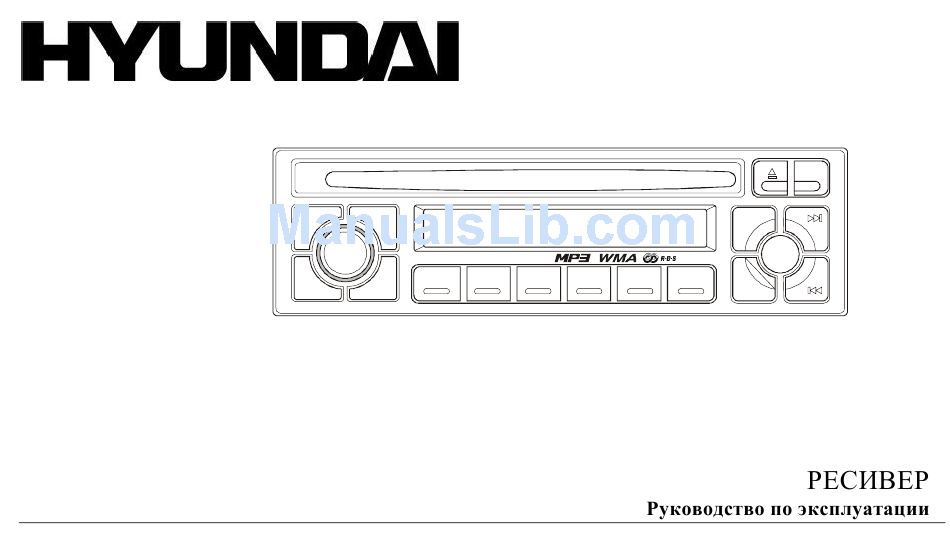

H-CDM8010 BAND MODE H-CDM8010 50Wx4 1 PAU 2 INT 3 RPT 4 RDM 5 DN10 6 UP10 F/PS CD/MP3-RECEIVER CD/MP3- Instruction manual... -
Page 2: Table Of Contents
The unit is recommended for installation in cars by Hyundai, Kia, as well as other cars equipped with installation place for 1 DIN head units. -
Page 3: Important Safeguards
Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Read carefully through this manual to familiarize yourself with this high-quality system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. -
Page 4: Accessories
Accessories 1. Nut 5 mm 1 pc. 2. Spring washer 2 pcs. 3. Screw M5x25 mm 1 pc. 4. Screw 1 pc. 5. Plain washer 2 pcs. 6. Strap 1 pc. 7. Operating instructions 1 pc. 8. Key 2 pcs. 9. -
Page 5: Installation/Connections
Installation/Connections First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. Before installation 1. - Page 6 Take a length of masking tape and fold it around the wire so it forms a flag. On the masking tape mark the polarity of the speaker wires (+ and -), as well as left or right, and front or rear. Repeat this procedure for all of the speakers.
- Page 7 Installation method A WARNING: Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. 1. After removing the old unit and mounting sleeve, insert supplied mounting sleeve in the opening. 2. Bend the tabs on the mounting sleeve to keep the mounting sleeve firmly in place. 3.
- Page 8 Installation method B Note: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
- Page 9 Electrical connections Speaker Wiring Notes Follow the above wiring diagram to install the head unit with new or existing speakers. This unit is designed for use with four speakers with impedance between 4 Ohms to 8 Ohms. An impedance load of less than 4 Ohms could damage the unit.
- Page 10 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector;...
-
Page 11: Panel Controls
Panel controls Front panel 1. PWR button 2. AF button 3. Disc slot 4. LCD display 5. BAND button 6. EJECT button 7. CLK button 8. PTY button 9. SEL knob 10. TA button 11. 1/PAU button 12. 2/INT button 13. -
Page 12: General Operations
General operations Turning On/Off Press any button to turn the unit on, the display will show a message “WELCOME” to indicate it is ready to use. Press and hold PWR button to turn the unit off. Mode selection Press MODE button to switch between Radio and CD play mode. Volume control The volume level can be adjusted by rotating SEL knob in any mode. - Page 13 BEEP function Press and hold SEL knob for 2 seconds; the display will show “TA SEEK”. Press SEL knob repeatedly until the display shows “BEEP OFF”, rotate SEL knob to toggle between BEEP ON and BEEP OFF, then leave the unit idle for your desired setting to take effect.
-
Page 14: Rca Output
You can rotate SEL knob to switch to “VOL ADJ”. Press SEL knob to confirm, then “A-VOL” will be displayed. At this time, rotate SEL knob to set the volume level you need. This will be the preset sound level for unit. Then every time the unit will be turned on with this volume level. -
Page 15: Radio Operations
Radio operations Choose Radio Band Press BAND button to activate the Radio mode. The unit is equipped with 3 FM bands (FM1, FM2 and FM3) and 2 AM bands (MW1 and MW2). Each of the bands can store up to 6 preset stations, making total 30 preset memory stations. Radio Tune/Seek Function In Radio mode, press PREV/NEXT buttons to manually adjust the radio frequency. - Page 16 Save Your Preset Stations There are six numbered preset buttons, which can store and recall stations for each band. While listening to a radio station you would like to save as a preset, press and hold one of the buttons numbered 1-6 until you hear a beep. The button you pressed is now the preset button for that station.
-
Page 17: Rds Operations
RDS operations Following functions are available for radio FM band mode. RDS-EON Control This unit is equipped with the latest technology of EON control, so that when you are listening to Radio or CD, if there is any travel announcement from a nearby local station, the radio will already know the frequency of that radio station. Then it will receive the station, turn up the volume, or interrupt the playback of the music for the duration of the announcement. - Page 18 PTY – Program type This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program. Press PTY button once to show the music type. Then press numbered 1-6 buttons to choose different music types available.
-
Page 19: Cd/Mp3/Wma Operations
CD/MP3/WMA operations Electronic Shock Protection (ESP) The electronic shock protection is ideal for driving uneven road. For MP3 discs Electronic Skip Protection for MP3 discs is a default feature. Please note that this feature supports the CDs with songs encoded by 96 Kb/s and 32000 Hz. For songs encoded in higher quality, the anti-shock duration will decrease proportionally to the file size. - Page 20 MP3 Track search mode You can use the 4 search modes to find your favorite MP3 songs. The search modes work only with MP3 discs. Simple search Press PREV/NEXT buttons to choose your song. Press the 5/DN10 and 6/UP10 button to advance 10 songs up or down. Track search Press F/PS button and the display will show “TRK SCH”.
- Page 21 Selecting tracks/Fast Forward/Rewind Press NEXT button to advance to the next track. Track numbers will be shown on the display. Press and hold NEXT button to fast forward. Press PREV button to go to a previous track. Track numbers will be shown on the display. Press and hold the PREV button to fast reverse.
-
Page 22: Mp3 Overview
MP3 Overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. - Page 23 For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder). When CD-R disc is used, playback is possible only for discs, which have been finalized. Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.
-
Page 24: Handling Discs
Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust. - Page 25 gently wiping them with a soft cloth should remove must panicles. Wipe in a straight motion from the center to the edge. Never use thinner benzine, record cleaner or anti static spray on a compact disc. Such chemicals can damage its plastic surface.
-
Page 26: Troubleshooting Guide
Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc Presence of disc inside the player. Remove the disc in the player then put a new Disc cannot be loaded. - Page 27 Sound skips. The installation angle is more than 30 Adjust the installation angle to less than 30 degrees. degrees. disc extremely dirty Clean the compact disc/try to play a new one. defective. radio does The antenna cable is not connected the Insert the antenna cable firmly.
-
Page 28: Specification
Specification General Power supply: 12V DC Fuse: 10 A and 1 A Maximum power output: 50W x 4 Dimensions (W x H x D): 178 x 51 x 178 mm ESP function 45 sec. for Audio-CD, 120 sec for MP3, 300 sec for WMA Supported discs CD/CD-R/CD-RW Supported formats... - Page 29 Audio specification Frequency response: 20 Hz to 20 KHz Signal to Noise ratio: >80dB Line out Output: 2 channels RCA line-out (2V) Specifications are subject to change without notice. Dimensions are approximate.
- Page 30 Hyundai, Kia, 1 DIN................................30 ............................31 ..............................33 ............................34 ............................... 40 ..............................41 ..............................44 RDS................................46 D/MP3/WMA........................48 3................................. 52 ............................... 54 ................................54 ......................56 ............................ 58...
- Page 31 -10º...
- Page 33 (5x25 14. ISO...
- Page 35 –),...
- Page 39 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
- Page 40 BAND EJECT 1/PAU 2/INT 3/RPT 4/RDM 5/DN10 6/UP10 F/PS MODE PREV NEXT...
- Page 41 WELCOME, MODE CD/MP3. LOUD SEL; “TA SEEK”. SEL, “LOUD OFF”. LOUD ON ( LOUD LOUD OFF ( LOUD : bass ( ), treble ( balance ( fader ( SEL,...
- Page 42 BEEP «TA SEEK». SEL, «BEEP OFF»; BEEP ON ( BEEP OFF ( CLK, CLK, “TA SEEK”. SEL, «DSP OFF». SEL, DSP: ROCK CLASSIC FLAT DSP OFF (...
- Page 43 SEL; «TA SEEK». SEL, «VOL LAST». «VOL ADJ». «A-VOL». SEL,...
- Page 44 BAND, 3 FM (FM1, FM2 FM3) 2 AM (MW1 MW2). PREV/NEXT, SEL, «TA SEEK»; SEL, «SEEK 1». SEL, «SEEK 1» «SEEK 2» ( PREV/NEXT PREV/NEXT SEL; «TA SEEK». «MONO». «MONO» «STEREO».
- Page 45 F/PS. F/PS. F/PS F/PS SEL; «TA SEEK»; SEL, “DX”. “LOCAL” ( “DX” (...
- Page 46 RDS-EON EON ( AF – «AF», «AF» TA – «TA SEEK». «TA SEEK» «TA ALARM»; TA SEEK TA ALARM...
- Page 47 PTY – PTY, (1-6) PTY, (1-6) MASK DPI/MASK ALL «TA SEEK». «MASK DPI». «MASK DPI» «MASK ALL». MASK DPI, MASK ALL RDS. RETUNE S/L TA SEEK. SEL, «TA SEEK»; «RETUNE_S». «RETUNE_S» «RETUNE_L». «RETUNE_S». «RETUNE» . «S» , «L»...
- Page 48 D/MP3/WMA (ESP) 32000 «TA SEEK». «ESP 12», «ESP 45». «MP3 DISC». «ROOT», «LOAD», EJECT...
- Page 49 PREV/NEXT 5/DN10 6/UP10. F/PS, «TRK SCH». SEL, «TRK». F/PS, «FILE SCH». SEL, F/PS, «CHAR SCH». SEL, SEL, «TA SEEK», «MULT OFF». «MULT ON» ( «MULT OFF» ( MULT OFF.
- Page 50 NEXT NEXT. PREV PREV. PREV/NEXT 1/PAU, 2/INT 3/RPT «RPT ON» ( 4/RDM «RDM» ( «RDM ON» (...
- Page 51 MP3/WMA ID3, : File ( ) => Folder ( ) => Music ( => Album ( ) => Artist (...
- Page 52 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. «.mp3». «.mp3», « MP3» « », PC « » « » 256. . VBR: CD-R CD-RW, MP3. 44,1...
- Page 53 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
- Page 56 « ».
- Page 58 10 A 1 A 178 x 51 x 178 mm ESP: CD/120 c MP3/300 CD/CD-R/CD-RW CDDA/MP3/WMA 87,5 – 108,0 – 1620...
- Page 59 - 20 >80 RCA- (2 )
