Hyundai H-CDM8019 Instruction Manual

Hyundai H-CDM8019 Instruction Manual

Cd/mp3-receiver + 13 cm 2 way coaxial acoustic system
Hide thumbs Also See for H-CDM8019:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual
H-CDM8019
CD/MP3-RECEIVER + 13 cm 2 way coaxial acoustic system
CD/MP3-
+ 13
2-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-CDM8019 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hyundai H-CDM8019

Summary of Contents for Hyundai H-CDM8019

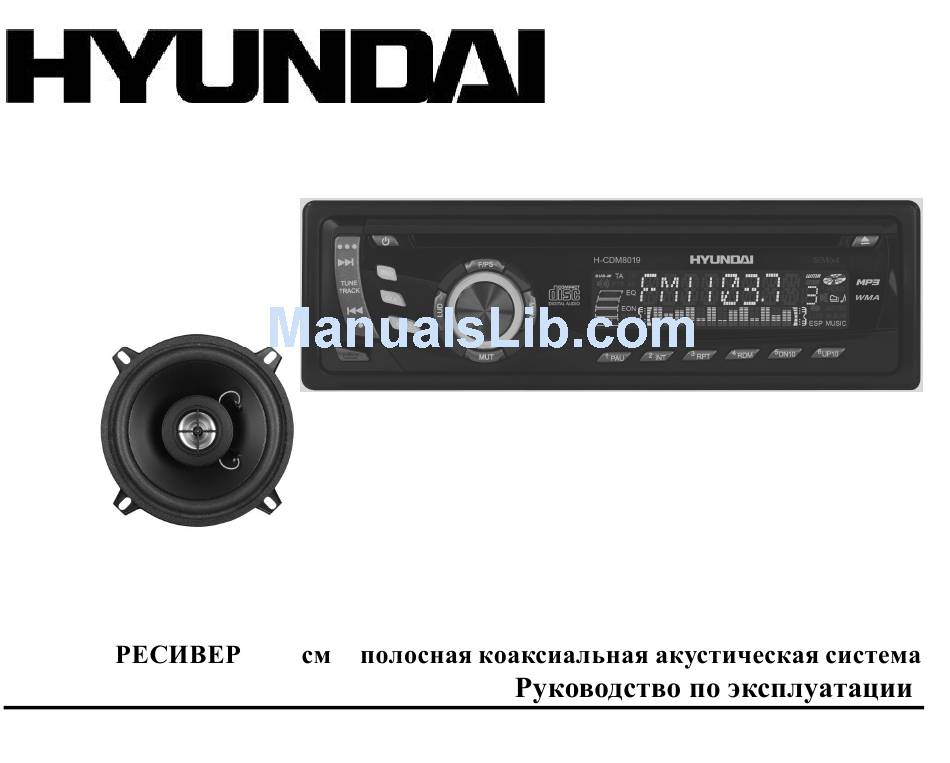

  • Page 1 H-CDM8019 CD/MP3-RECEIVER + 13 cm 2 way coaxial acoustic system CD/MP3- + 13 Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..............................3 Instruction manual for CD/MP3-Receiver......................4 Important safeguards..............................4 Accessories ................................5...

  • Page 3: Instruction Manual For Cd/Mp3-Receiver

    Instruction manual for CD/MP3-Receiver Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Read carefully through this manual to familiarize yourself with this high-quality system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Accessories

    Accessories 1. Nut 5 mm 1 pc. 2. Spring washer 2 pcs. 3. Screw M5x25 mm 1 pc. 4. Screw 1 pc. 5. Plain washer 2 pcs. 6. Strap 1 pc. 7. Operating instructions 1 pc. 8. Key 2 pcs. 9.

  • Page 5: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed. Before installation 1.
  • Page 6 Installation method A WARNING: Disconnect negative battery terminal from battery before starting installation. Consult the vehicle’s owner’s manual for proper instructions. 1. After removing the old unit and mounting sleeve, insert supplied mounting sleeve in the opening. 2. Bend the tabs on the mounting sleeve to keep the mounting sleeve firmly in place. 3.
  • Page 7 Installation method B Note: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
  • Page 8 Detaching the front panel Press RELEASE button to remove the panel. Attaching the control panel Insert the left side of the control panel into the main unit. Press the control panel on to the right side of middle of it until a “click”...

  • Page 9: Electrical Connections

    Electrical connections Speaker Wiring Notes Follow the above wiring diagram to install the head unit with new or existing speakers. This unit is designed for use with four (4) speakers with the impedance between 4 Ohms to 8 Ohms. An impedance load of less than 4 Ohms could damage the unit. Never bridge or combine the speaker wire outputs.
  • Page 10 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector;...

  • Page 11: Panel Controls

    Panel controls Front panel 1. NEXT/PREV button 2. CLK button 3. RELEASE button 4. MOD button 5. LUD button 6. MUT button 7. 1/PAU button 8. 2/INT button 9. 3/RPT button 10. 4/RDM button 11. 5/DN10 button MON button 12. 6/UP10 button F/PS button 13.

  • Page 12: General Operations

    General operations Turning On/Off Press any button to turn the unit on, the display will show a message “WELCOME” to indicate it is ready to use. Press and hold POWER button to turn the unit off. Mode selection Press MOD button to switch between AUX, Radio and CD play mode. Volume control The volume level can be adjusted by rotating VOL knob in any mode.
  • Page 13 The clock can be set anytime when the power is on. Press CLK button and then press and hold CLK button for 3 seconds, the time will blink on the display. 1. Rotate VOL knob clockwise to adjust the hour. 2.

  • Page 14: Radio Operations

    Radio operations Choose Radio Band Press BND button to activate the Radio mode (even when CD is playing). The unit is equipped with 3 FM bands (FM1, FM2 and FM3) and 2 MW bands (MW1 and MW2). Each of the bands can store up to 6 preset stations, making total 30 preset memory stations.
  • Page 15 press and hold F/PS button for more than 3 seconds. The receiver will automatically scan and save stations for that AM bands. 2. Scan saved stations: press F/PS button once to perform the scanning functions. In FM mode, press F/PS button and the stations in that FM band will be scanned;...

  • Page 16: Cd/Mp3 Operations

    CD/MP3 operations Electronic Shock Protection (ESP) The electronic shock protection is ideal for driving uneven road. For MP3 discs Electronic Skip Protection for MP3 discs is a default feature. Please note that this feature supports the CDs with songs encoded by 96 Kb/s and 32000 Hz. For songs encoded in higher quality, the anti-shock duration will decrease proportionally to the file size.
  • Page 17 Press F/PS button and the display will show “TRK SCH”. At this moment, press VOL knob so that “TRK” will blink on the display. Then rotate the knob to choose your desired track and press the knob again to confirm the selection. The selected track will be searched and play.
  • Page 18 Repeat Press 3/RPT button to repeat the same track continuously. “RPT ON" will appear on the display. Press this button again to stop repeating. Random playback Press 4/RDM button to play all the tracks in random order. “RDM” (for MP3 disc) or “RDM ON” (for CD disc) will appear on the display.

  • Page 19: Mp3 Overview

    MP3 Overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 20: Handling Discs

    Handling discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 21: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc Presence of disc inside the player. Remove the disc in the player then put a new Disc cannot be loaded.

  • Page 22: Specification

    Specification General Power supply: 12V DC Fuse: 10 A and 1 A Maximum power output: 50W x 4 Dimensions (W x H x D): 178 x 51 x 178 mm ESP function 45 sec. for Audio-CD, 120 sec for MP3 Supported discs CD/CD-R/CD-RW Supported formats...

  • Page 23: Instruction Manual 13 Cm 2 Way Coaxial Acoustic System

    Instruction manual 13 cm 2 way coaxial acoustic system Description The set of acoustic system includes: acoustic system speaker wire – 2 m screw – 8 pcs clip – 8 pcs (x 8) (x 8)

  • Page 24: Important Safeguards

    Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped.

  • Page 25: Mounting The Speakers

    Mounting the speakers Installation kits are available from your dealer or local stereo shop to help make your installation easy. These kits also give your installation a clean, custom appearance. Questions about installations methods please consult a professional auto sound dealer/installer for assistance. Choose the place of installation for acoustic system.

  • Page 26: Securing The Speakers

    Securing the speakers Position the speaker into the mounting hole and reconfirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip.

  • Page 27: If Unit Fails To Operate Properly

    If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position Bad power connections...

  • Page 28: Specification

    Specification woofer: polypropylene cone Loudspeaker one tweeter: 20 mm piezo Magnet 5.3 Oz Peak output power 120 W Rated output power 60 W Impedance 4 hm Sensitivity 90 dB Frequency response 80 – 20000 Hz Dimensions 138.5 x 49 mm Net/Gross weight 0.38 kg/0.8 kg Gift box dimension (L x W)
  • Page 29 ................................30 CD/MP3- ........................31 ...........................31 .............................32 ............................33 ............................39 ............................40 ...............................42 D/MP3..........................44 3................................47 ............................49 ..............................49 ....................50 ..........................51 .............52 ................................52 ............................53 ........................54 ........................55 ....................56 ..........................57...
  • Page 30 CD/MP3- -10º...
  • Page 31 (5x25 15. ISO...
  • Page 37 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- ACC+/ (+)--- (-)---...
  • Page 38 NEXT/PREV RELEASE 1/PAU 2/INT 3/RPT 4/RDM 5/DN10 6/UP10 F/PS EJECT POWER RESET...
  • Page 39 WELCOME, POWER Aux, CD/MP3. LOUD «LOUD ON», LOUD « » MUT, VOL. : bass ( ), treble ( balance ( fader ( VOL, BEEP «DSP OFF». VOL, «BEEP OFF», BEEP ON ( BEEP OFF (...
  • Page 40 CLK, CLK, DSP OFF. VOL, DSP: ROCK CLASSIC FLAT DSP OFF ( Aux, AUX IN MOD, AUX. VOL.
  • Page 41 BND, 3 FM (FM1, FM2 FM3) 2 MW (MW1 MW2). PREV/NEXT, VOL, «DSP OFF»; VOL, «SEEK 1». VOL, «SEEK 1» ( «SEEK 2» ( PREV/NEXT PREV/NEXT «MONO» «STEREO».
  • Page 42 F/PS F/PS F/PS F/PS...
  • Page 43 D/MP3 (ESP) 32000 «DSP OFF». «ESP 12», «ESP 45». «MP3 DISC». «ROOT», «LOAD», EJECT...
  • Page 44 PREV/NEXT 5/DN10 6/UP10. F/PS, «TRK SCH». VOL, «TRK». F/PS, «FILE SCH». VOL, F/PS, «CHAR SCH». VOL, VOL, «DSP OFF», «MULT OFF». «MULT ON» ( «MULT OFF» ( MULT OFF. NEXT NEXT. PREV PREV. PREV/NEXT...
  • Page 45 1/PAU, 2/INT 3/RPT «RPT ON» ( 4/RDM «RDM» ( «RDM ON» ( ID3, : File ( ) => Folder ( ) => Music ) => Album ( ) => Artist (...
  • Page 46 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. «.mp3». «.mp3», « MP3» « », PC « » « » 256. VBR: CD-R CD-RW, MP3. 44,1 ISO 9660, CD-R MP3 CD-R CD-RW...
  • Page 47 CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 49 « ». RESET.
  • Page 50 10 A 1 A 178 x 51 x 178 mm ESP: CD/120 c CD/CD-R/CD-RW CDDA/MP3 87,5 – 108,0 – 1620 - 20 >80 RCA- (2 )
  • Page 51 – 2 – 8 – 8 (x 8) ( 8)
  • Page 53 =115 , Ø =5...
  • Page 56 : 120 (150 ) 80 – 20000 138,5 x 49 0,38 /0,8...
