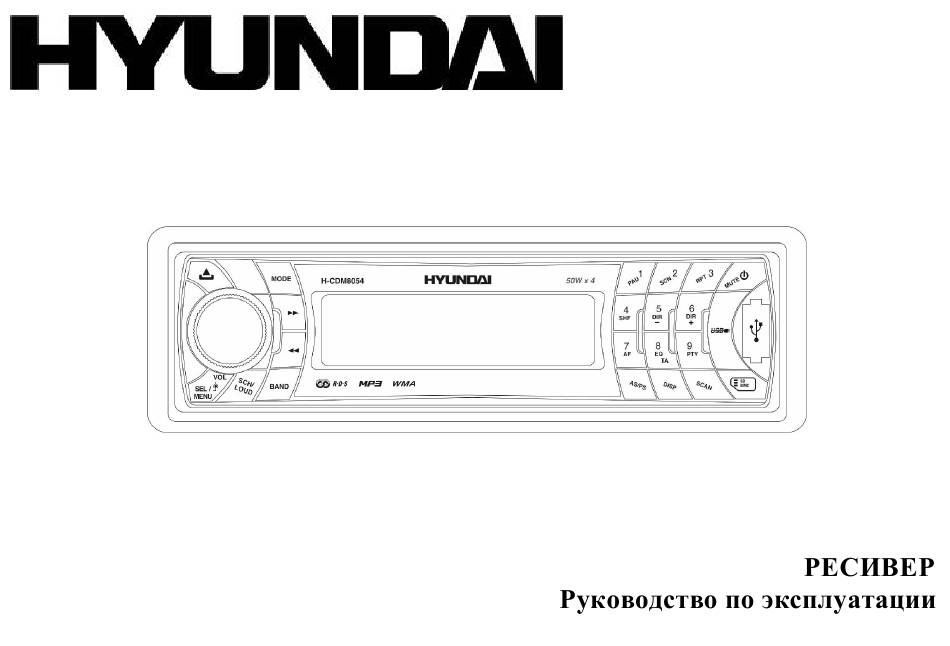

  • Page 1 H-CDM8054 CD/MP3/WMA RECEIVER CD/MP3/WMA- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents....................................2 Important safeguards..................................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Accessories

    Accessories Receiver 1 pc Carrying case 1 pc Mounting parts: Hexagon nut M5 1 pc Spring washer M5 1 pc Plain washer M5 1 pc Metal bar 1 pc Release Keys 2 pcs M5 x 25 screw 1 pc Mounting box 1 pc Customer information 1 pc...

  • Page 5: Installation/Connections

    Installation/Connections Notes: Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
  • Page 6 Installing the unit Be sure you test all connections first, and then follow these steps to install the unit. 1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery’s negative (-) terminal. 2. Disconnect the wire harness and the antenna. 3.
  • Page 7 Removing the unit 1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery’s negative (-) terminal. 2. Remove the metal strap attached the back of the unit (if attached). 3. Press RELEASE button to remove the front panel. 4.
  • Page 8 To Detach the Front Panel Press RELEASE button, then the front panel will be folded down. To remove the front panel, lift it up at a little angle from horizontal position, then first pull out the right side and then pull out the left side. For safekeeping, store the front panel in the supplied protective case immediately after being removed.

  • Page 9: Connection Diagram

    Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibited to make the conductors of auto antenna and ground touch with each other.

  • Page 10: Controllers

    Controllers Front panel 1. RELEASE button 2. VOL knob/SEL button 3. FWD/REW buttons 4. SCH/LOUD/BAND button 5. 7/AF button 6. AS/PS button 7. 8/EQ/TA button 8. DISP button 9. 9/PTY button 10. SCAN button 11. USB socket 12. MUTE/POWER button 13.

  • Page 11: General Operations

    General operations Resetting the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RELEASE button on the panel to open the front panel and press RESET button with a thin hard object to restore the unit to the original factory settings. Power ON/OFF Press MUTE/POWER button to switch the unit on.
  • Page 12 Display mode Press DISP button to change the display mode. Equalizer Press 8/EQ/TA button to turn on equalizer function and to select an equalizer mode as following: FLAT => CLAS => POP M => ROCK => OFF. System setting Press and hold SEL button to enter the system setting mode. Press repeatedly SEL button to select the item you want to change, and rotate VOL knob to change the corresponding setting.
  • Page 13 12. Screen Save: Off/Timer/Running car/Fish kiss/Dolphin - The unit has screen save function. You can set screen save mode in this menu. If there is no operation for about 10 seconds, the unit will enter screen save mode automatically. Off: Close screen save. Timer: when screen save, time will be displayed on display.

  • Page 14: Radio Operations

    Radio operations BAND selection Press SCH/LOUDBAND button repeatedly to select your desired radio band in RADIO mode: FM1, FM2, FM3, MW1 (AM1), MW2 (AM2). Each band can store 6 preset stations, for a total of 30 preset memory stations. Tuning Press FWD/REW buttons to enable automatic search of a radio frequency.
  • Page 15 RDS mode ON/OFF Press 7/AF button to switch on or off the RDS mode. Whenever RDS is switch on, “RDS” will flash on the display. PTY function Press 9/PTY button to enter PTY Select mode; the program name will be displayed on the display. You can use VOL knob to select the items and press FWD/REW buttons to begin searching the corresponding program.

  • Page 16: Cd/Mp3/Wma Disc Operations

    CD/MP3/WMA disc operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA. Loading/Ejecting a disc Press RELEASE button to open the front panel. Insert a disc with the printed side facing upward into the slot. The disc will play automatically.
  • Page 17 During MP3/WMA playback, press 3/RPT button to repeat all tracks in the current folder. The display will show “F-repeat”. Press again to cancel. Random playback During CD playback, press 4/SHF button to start random playback of all tracks in the disc. “Shuffle” will appear on the display. Press again to cancel.

  • Page 18: Sd/Mmc Card/Usb Operations

    SD/MMC card/USB operations Notes: USB format supports 2.0. Capacity: 8 MB ~ 2 GB. SD cards brands: Canon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: 8 MB ~ 2 GB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc. Capacity: 16 MB ~ 2 GB. Inserting the USB/SD/MMC device Insert the MMC/SD card or USB device into MMC/SD slot or USB socket.

  • Page 19: Mp3 Overview

    MP3 overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 20 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 21: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 23: Specification

    Specification General Power supply 12 V DC Maximum power output 50W x 4 Fuse Dimensions (L x W x H) 178 x 50 x 160 mm 40 sec. ESP for Audio-CD, 120 sec. ESP for MP3 FM stereo radio Frequency range 65.0 –...
  • Page 24 ....................................24 ................................25 ..................................26 ................................27 ..................................31 ................................... 32 ..................................33 CD/MP3/WMA ............................39 SD/MMC/USB ......................41 3..................................... 42 ..............................44 ....................................44 ..........................45 ................................ 46...
  • Page 26 M5 x 25...
  • Page 27 30° DIN, DIN.
  • Page 28 (-). RELEASE ("L") ("R") 5x25 – (-).
  • Page 29 (-). RELEASE, Nissan Toyota, T (Toyota), N (Nissan) (5x5...
  • Page 30 RELEASE,...
  • Page 32 RELEASE VOL/ FWD/REW SCH/LOUD/BAND 7/AF AS/PS 8/EQ/TA DISP 9/PTY SCAN 11. USB MUTE/POWER 3/RPT 6/DIR+ 2/SCAN 4/SHF 5/DIR- 1/PAU MODE EJECT SD/MMC RESET...
  • Page 33 RESET ( RELEASE. RESET. MUTE/POWER, «Have a nice day!». VOL. SEL, FWD/REW, : Bass ( ) => Treble ( ) => Balance ( ) => Fader ( VOL, MUTE/POWER, MODE, : RADIO ( ) => CD ( ) => USB => CARD => AUX.
  • Page 34 LOUD ( SCH/LOUD/BAND, “LOUD”. DISP, 8/EQ/TA, : FLAT => CLAS => POP M => ROCK => SEL, SEL, VOL, 1. BEEP: ON/OFF – 2. VOL select: Last/Adjust – Last; Adjust, “VOL PGM”; 3. Area: OIRT/USA - 4. Hour mode: 24 hour/12 hour – 5.
  • Page 35 11. Stand by LCD: Off/Timer/Running car/Fish kiss/Dolphin – Off: Timer: Running car/Fish kiss/Dolphin: 12. Screen Save: Off/Timer/Running car/Fish kiss/Dolphin – Off: Timer: Running car/Fish kiss/Dolphin:...
  • Page 36 SCH/LOUDBAND, : FM1, FM2, FM3, MW1 (AM1), MW2 ( FWD/REW, “Manual seeking”. FWD/REW “Auto seeking”. AS/PS; “Auto storing”. AS/PS, (1-6), (1-6), RDS (...
  • Page 37 7/AF, RDS. “RDS”. 9/PTY, PTY; FWD/REW, 9/PTY, RDS; FWD/REW, TA SEEK/TA ALARM TA SEEK, ALARM, MASK DPI/MASK ALL AF ( MASK DPI. MASK ALL. RETUNE Retune-Short Retune-Long – TA Seek. Retune Short: TA SEEK 30 Retune Long: TA SEEK 90 REGION: OFF/ON REGION ON (...
  • Page 38 REGION OFF ( TA-VOLUME: - 18; TA ( 8/EQ/TA, 8/EQ/TA.
  • Page 39 CD/MP3/WMA : CD/CD-R/-RW. MP3/WMA. RELEASE, MODE, EJECT, PAUSE, FWD/REW, FWD/REW, Intro 2/SCN, «Scan».
  • Page 40 MP3/WMA 2/SCN, «F-scan». «Repeat». MP3/WMA «F-repeat». 4/SHF, «Shuffle». MP3/WMA 4/SHF, «F-shuffle». MP3/WMA 6/DIR+ 5/DIR-, MP3/WMA SCH/LOUD/BAND, VOL, VOL,...
  • Page 41 SD/MMC/USB USB: USB 2.0. : 8 M ~ 2 : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, : 8 M ~ 2 MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, : 16 USB/SD/MMC MMC/SD MMC/SD CARD USB.
  • Page 42 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW, 44,1...
  • Page 43 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 45 “ ”. POWER...
  • Page 46 178 50 160 40 CD/ 120 MP3 65.0 – 74.0/87.5 – 108.0 10.7 MW (AM) 522-1620 D/CD-R/CD-RW/USB/SD/MMC – 18 RCA- (2 )
