Hyundai H-CDM8019 Instruction Manual

Hyundai H-CDM8019 Instruction Manual

Cd/mp3-receiver
Hide thumbs Also See for H-CDM8019:
Table of Contents

Advertisement

Quick Links

Download this manual
oo
H-CDM8019
CD/MP3-RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8019

Summary of Contents for Hyundai H-CDM8019

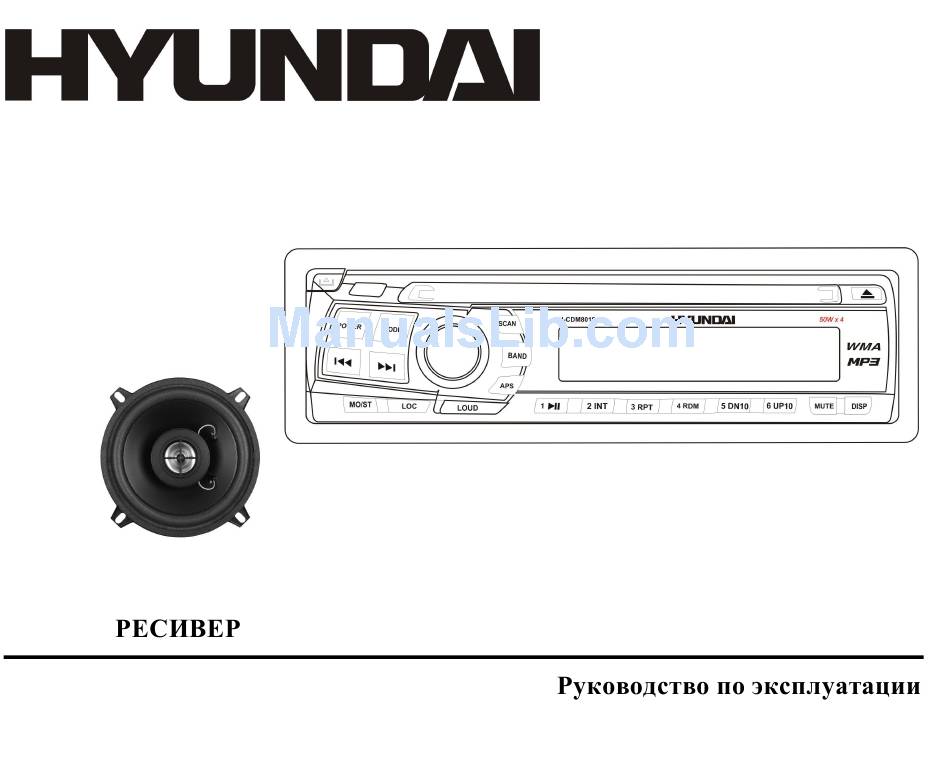

  • Page 1 H-CDM8019 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Instruction manual for CD/MP3-Receiver ......................4 Important safeguards ............................4 Installation/Connections ............................6...
  • Page 3 If unit fails to operate properly.........................28 Specification..............................29...

  • Page 4: Instruction Manual For Cd/Mp3-Receiver

    Instruction manual for CD/MP3-Receiver Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Use only in a 12-volt DC negative-ground electrical system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating.
  • Page 5 high heat. The faceplate is a precision piece of equipment that contains sensitive electronic components. Do not subject it to excessive shock. Be careful not to drop or shock the unit strongly, it may break or crack because it contain glass parts. When extending the ignition, memory backup or ground cable, use diameter of 0.75mm (AWG18) or more automotive grade cable to avoid wire deterioration or damage to the wire coating...

  • Page 6: Installation/Connections

    Installation/Connections Din front-mount (method 1) After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure to the place Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides. The unit can be installed or removed from the dashboard.
  • Page 7 1. Dashboard 2. Nut (5mm) 3. Spring washer 4. Screw (5 x 25mm) 5. Screw 6. Strap 7. Plain washer Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides.
  • Page 8 Electrical connections...

  • Page 9: Panel Controls

    Panel controls 1. RELEASE button 2. POWER button 3. MODE button 4. VOLUME knob/SEL button 5. DISC slot 6. SCAN button 7. BAND button 8. EJECT button 9. DISPLAY button 10. MUTE button 11. 6/UP 10 button 12. 5/DN 10 button 13.

  • Page 10: General Functions

    General functions Turning on/off Press any button to turn the unit on. Press and hold POWER button to turn it off. Volume control The volume level can be adjusted at any time by rotating VOLUME knob. Bass, treble, balance, fader control Press VOLUME knob to select bass, treble, balance or fader mode.
  • Page 11 Press and hold SEL button for 2 seconds, the display will show DSP OFF. Rotate VOLUME knob to choose EQ effect: ROCK CLASSIC FLAT DSP OFF After you have reached your desired effect, leave the unit idle in order for the new setting to take effect.

  • Page 12: Radio Operations

    Radio operations Choose Radio Band Press BAND button to operate the radio function. (Even when CD is playing). Total 3 sets of FM Band (FM1, FM2, FM3) and 2 sets or MW Band (MW1, MW2) are available. In each set of bands can be stored up to 6 preset stations, making total 30 preset memory stations.
  • Page 13 SCAN In Radio mode, pressing SCAN button activates SCAN UP. DISP In Radio mode, when press DISP button, the sequence shown will be Frequency -> CLOCK In Radio mode, when press APS button once, each memory from the current band is received for 5 seconds. Channel that is received flashes during the process, receives for 1s when SD level is below the standard level.
  • Page 14 the button. COLOR Press and hold SEL button, then press SEL button to cycle through the menu selections until “COLOR 1” is shown. There are two colors of backlight: green and red. Rotate the knob to choose COLOR 1 or COLOR 2.

  • Page 15: Mp3/Cd Play Back

    MP3/CD Play back Electronic Shock Protection (ESP) CD Electronic Shock Protection The electronic shock protection is ideal for driving uneven road. Press the Sound Select button for 2 seconds, the display will show “DSP OFF”. Press the button again so that “ESP 12”...
  • Page 16 confirm. The input folder will be searched and play. Character search Press APS button for thrice, the display will show “CHAR SCH”. This is for searching the computer file names of the MP3 songs. At this moment, press SEL button so that the letters will blink on the display. Rotate the knob to select the character and press SEL button once to advance to the next.

  • Page 17: Mp3 Overview

    MP3 Overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 18 disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files. With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality.

  • Page 19: Anti-Theft System

    Anti-Theft System This unit is equipped with a slide-down detachable panel. Removing this panel makes the radio totally inoperable. Place the detachable panel into the case. 1. Switch off the power of the unit. 2. Remove the detachable panel. 3. Gently press the button of the case and open the cover. 4.

  • Page 20: Handling Compact Discs

    Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 21: Components

    Components Nut 5 mm 1 pc. Spring washer 2 pcs. Screw M5x25 mm 1 pc. Screw 1 pc. Plain washer 2 pcs. Strap 1 pc. 2 pcs. Mounting collar 1 pc. Wire connector 1 pc. Removable face plate case 1 pc. Trim plate 1 pc.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide No power or no sound Car's engine switch is not on. Turn your car's key to ACC or ON. Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on/off. If above solutions cannot help, press the RESET button. Disc is inside but no sound Disc is upside down.

  • Page 23: Specification

    Specification General. Power supply: 12V DC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10 K load) Fuse: 10A/1A Dimensions (WxHxD) / Weight...

  • Page 24: Instruction Manual 13 Cm 2 Way Coaxial Acoustic System

    Instruction manual 13 cm 2 way coaxial acoustic system Description The set of acoustic system includes: - acoustic system - speaker wire – 2 m - screw – 8 pcs - clip – 8 pcs (x 8) (x 8)

  • Page 25: Important Safeguards

    Important safeguards The owner’s manual contains important operating and maintenance instructions for your safety. It is necessary to refer the manual. Do not install the speakers where they may be subjected to excessive heat moisture, dust or where they will be kicked repeatedly, brushed or bumped.

  • Page 26: Mounting The Speakers

    Mounting the speakers Installation kits are available from your dealer or local stereo shop to help make your installation easy. These kits also give your installation a clean, custom appearance. Questions about installations methods please consult a professional auto sound dealer/installer for assistance. Choose the place of installation for acoustic system.

  • Page 27: Securing The Speakers

    Securing the speakers Position the speaker into the mounting hole and reconfirm the correct mounting location and hole placement. Screw clips are provided to ensure a snug fit. These should be placed over the metal surface and line up the hole you have previously drilled with the screw clip.

  • Page 28: If Unit Fails To Operate Properly

    If unit fails to operate properly Carefully read the instruction to make sure the unit is being operated properly. Check the following before you take your unit to the local dealer for repair. SYMPTOM POSSIBLE CAUSE SOLUTION No sound The volume control regulator set in the Adjust sound level minimal position Bad power connections...
  • Page 29 Specification woofer: polypropylene cone Loudspeaker one tweeter: 20 mm mylar Magnet 5.3 Oz Peak output power 120 W Rated output power 60 W Impedance 4 hm Sensitivity 90 dB Frequency response 80 – 20000 Hz Dimensions 138.5 x 49 mm Net/Gross weight 0.38 kg/0.8 kg Gift box dimension (L x W)
  • Page 30 ................................30 CD/MP3- ........................32 ..........................32 ..........................34 ........................38 .............................39 ............................41 MP3 ..........................44 3 ..............................47 ...........................49 ........................50 ...............................51 ..............................52 ....................53 ........................54 ............56 ..............................56 .............................57 .......................58 ........................59...
  • Page 31 ..................60 ..........................61...
  • Page 32 CD/MP3- 12 .
  • Page 35 (5 x 25 (4 8...
  • Page 38 RELEASE POWER MODE VOLUME SCAN BAND EJECT DISPLAY MUTE 6/UP 10 5/DN 10 4/RDM 3/RPT 2/INT 1/PLAY/PAUSE LOUD NEXT MO/ST PREVIOUS...
  • Page 39 POWER : bass ( ), treble ( balance ( fader ( VOLUME, MUTE, VOLUME, BEEP VOLUME «DSP OFF». SEL, «BEEP OFF», VOLUME BEEP ON ( BEEP OFF (...
  • Page 40 LOUD LOUD LOUD ( «LOUD ON», LOUD DSP. VOLUME ROCK CLASSIC FLAT DSP OFF...
  • Page 41 BAND 3 FM (FM1, FM2, FM3) (MW1, MW2). PREVIOUS/NEXT PREVIOUS/NEXT; MO/ST, APS,...
  • Page 42 SCAN ( SCAN, DISP ( DISP, -> APS; LOC ( LOC, (LOC ON- (LOC OFF- LOC. SEL, SEL, MULT “MULT ON” ( “MULT OFF” ( “MULT OFF”.
  • Page 43 (SEEK) “SEEK 1” “SEEK 2”. Seek 1 PREVIOUS NEXT. Seek 2 PREVIOUS NEXT. COLOR 1 COLOR 2 (...
  • Page 44 (ESP) CD (12 "DSP OFF". "ESP 12" , "ESP 45". PREVIOUS/NEXT 5/DN10 6/UP10 APS, “TRK SCH”. SEL, “TRK” “FILE SCH”. SEL,...
  • Page 45 “CHAR SCH”. SEL, NEXT NEXT PREVIOUS PREVIOUS 1/PLAY/PAUSE 2/INT...
  • Page 46 3/RPT «RPT ON» ( 4/RDM «RDM» ( «RDM ON» (...
  • Page 47 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. . VBR:...
  • Page 48 CD-R CD-RW, MP3. 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 49 POWER RELEASE,...
  • Page 52 (5 25...
  • Page 53 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: EJECT EJECT, RESET EJECT...
  • Page 54 12 , – 16 ) 14,4 , (RMS): 10 % .D.) 4 – 8 10 /1 CD: 1 , 10 178 50 162 / 1.7 ESP: CD (40 ), MP3 (120 ) 87.5 – 108.0 = 50 – 15 522-1620...
  • Page 55 = 20 - 20 > 80 0.2 % (1 > 55...
  • Page 56 – 2 – 8 – 8 (x 8) ( 8)
  • Page 58 =115 , Ø =5...
  • Page 61 : 120 (150 ) 80 – 20000 138,5 x 49 0,38 /0,8...
