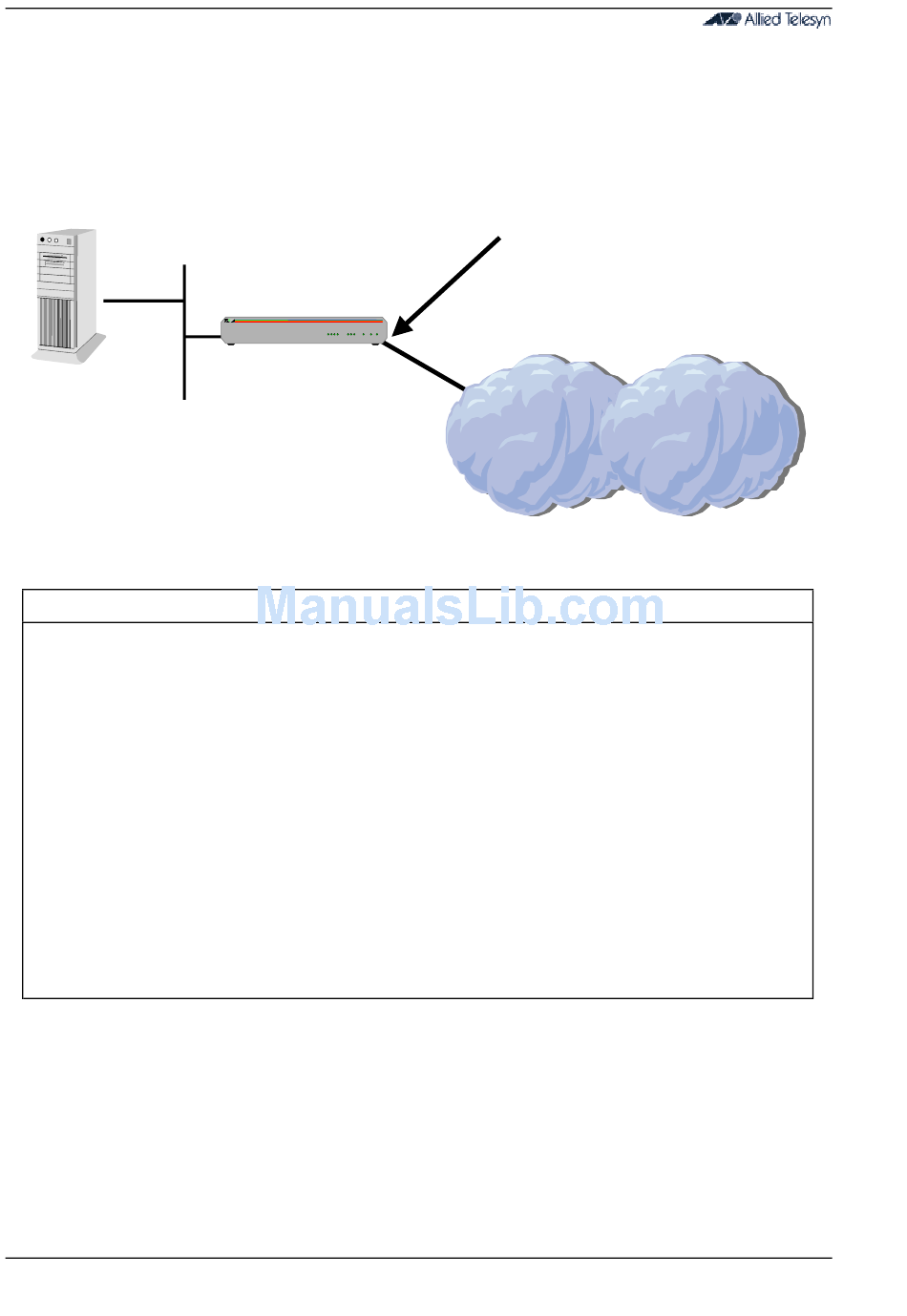

4.2. Standard Frame Relay ISP Access

Mail Server
192.168.10.2
192.168.10.0
Router A
#
# Frame Relay Configuration
# Note: By default LMI is set to "LMIrev1" which is the same as "cisco" LMI type.
create fr=0 over=syn0
#
# IP Configuration
#
enable ip
add ip int=fr0 ip=200.200.200.1 mask=255.255.255.252
add ip int=eth0 ip=192.168.10.1
add ip route=0.0.0.0 next=0.0.0.0 mask=0.0.0.0 int=fr0 dlc=102
enable ip nat
enable ip nat log=all
add ip nat ip=192.168.10.0 mask=255.255.255.0 gblip=200.200.200.1
add ip nat ip=192.168.10.2 mask=255.255.255.255 port=smtp gblip=200.200.200.1 gblport=smtp
proto=tcp
