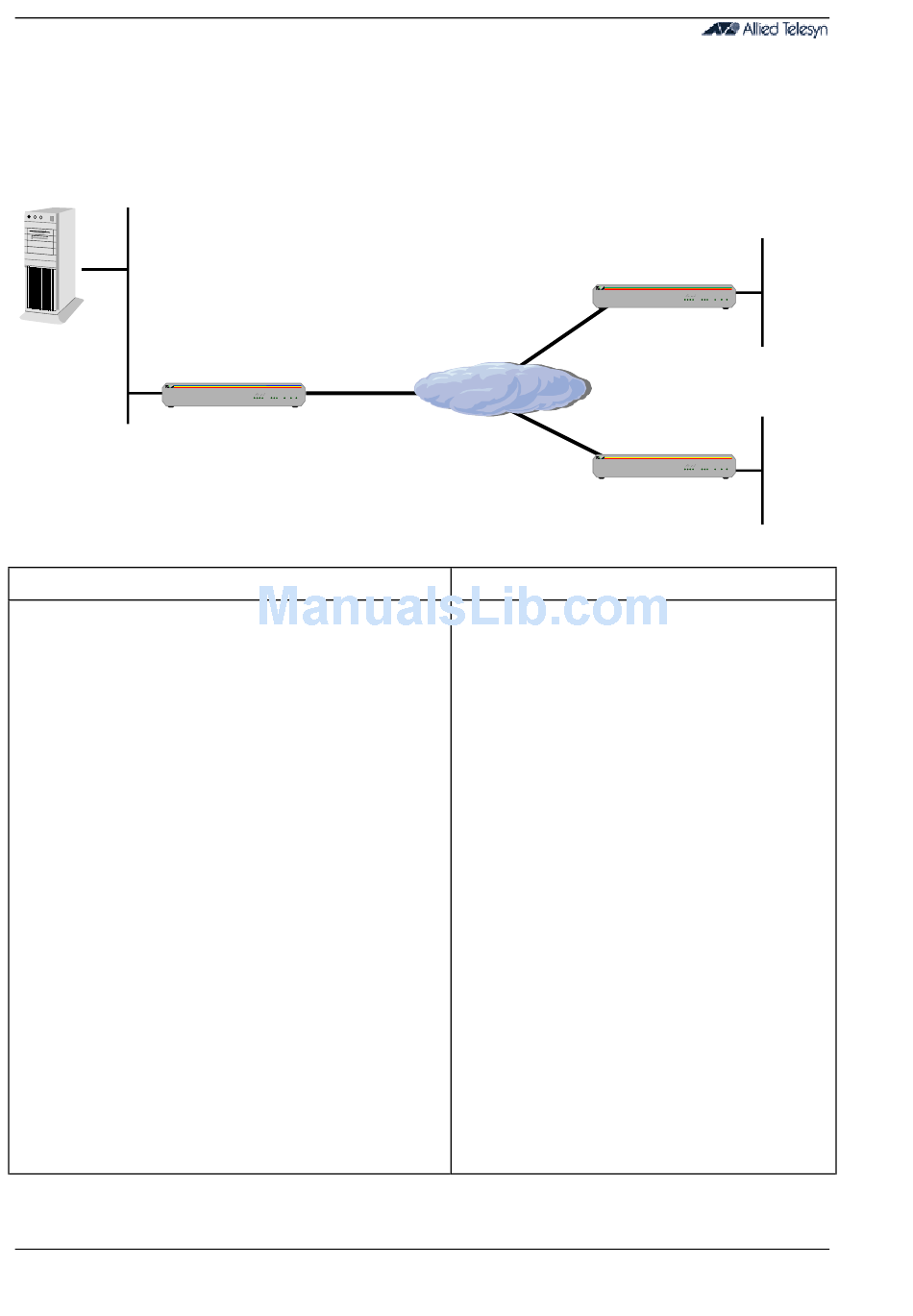

2.4. PPP over ISDN Private network

Mail Server
192.168.10.2
Ce ntreCO M
AR30 0
Access R outer
192.168.10.0
Router A
#
# System Configuration
#
set sys territory=<countrycode>
#
# ISDN Configuration
#
add isdn call=siteb num=12345 prec=in searchsub=local
outsub=local
add isdn call=sitec num=34567 prec=in searchsub=local
outsub=local
#
# PPP Configuration
#
create ppp=1 over=isdn-siteb idle=60
create ppp=2 over=isdn-sitec idle=60
#
# IP Configuration
#
enable ip
add ip int=eth0 ip=192.168.10.1
add ip int=ppp1 ip=192.168.254.1 mask=255.255.255.252
add ip int=ppp2 ip=192.168.254.5 mask=255.255.255.252
add ip route=192.168.1.0 next=0.0.0.0 int=ppp1
add ip route=192.168.2.0 next=0.0.0.0 int=ppp2
Helpful Scripts
Revision 5.8.7; 5 April 2001
Site A
LAN WAN SYS TEM
192.168.254.0/30
ppp1
ISDN
ppp2
192.168.254.4/30
Router B
#
# System Configuration
#
set sys territory=<countrycode>
#
# ISDN Configuration
#
add isdn call=siteb num=54321 prec=out
searchsub=local outsub=local
#
# PPP Configuration
#
create ppp=0 over=isdn-siteb idle=60
#
# IP Configuration
#
enable ip
add ip int=eth0 ip=192.168.1.1
add ip int=ppp0 ip=192.168.254.2
add ip route=0.0.0.0 next=0.0.0.0 int=ppp0
192.168.1.0
Site B
Ce ntreCO M AR30 0
Access R outer LAN WAN SYS TEM
192.168.2.0
Site C
Ce ntreCO M AR30 0
Access R outer LAN WAN SYS TEM
