4. Frame Relay

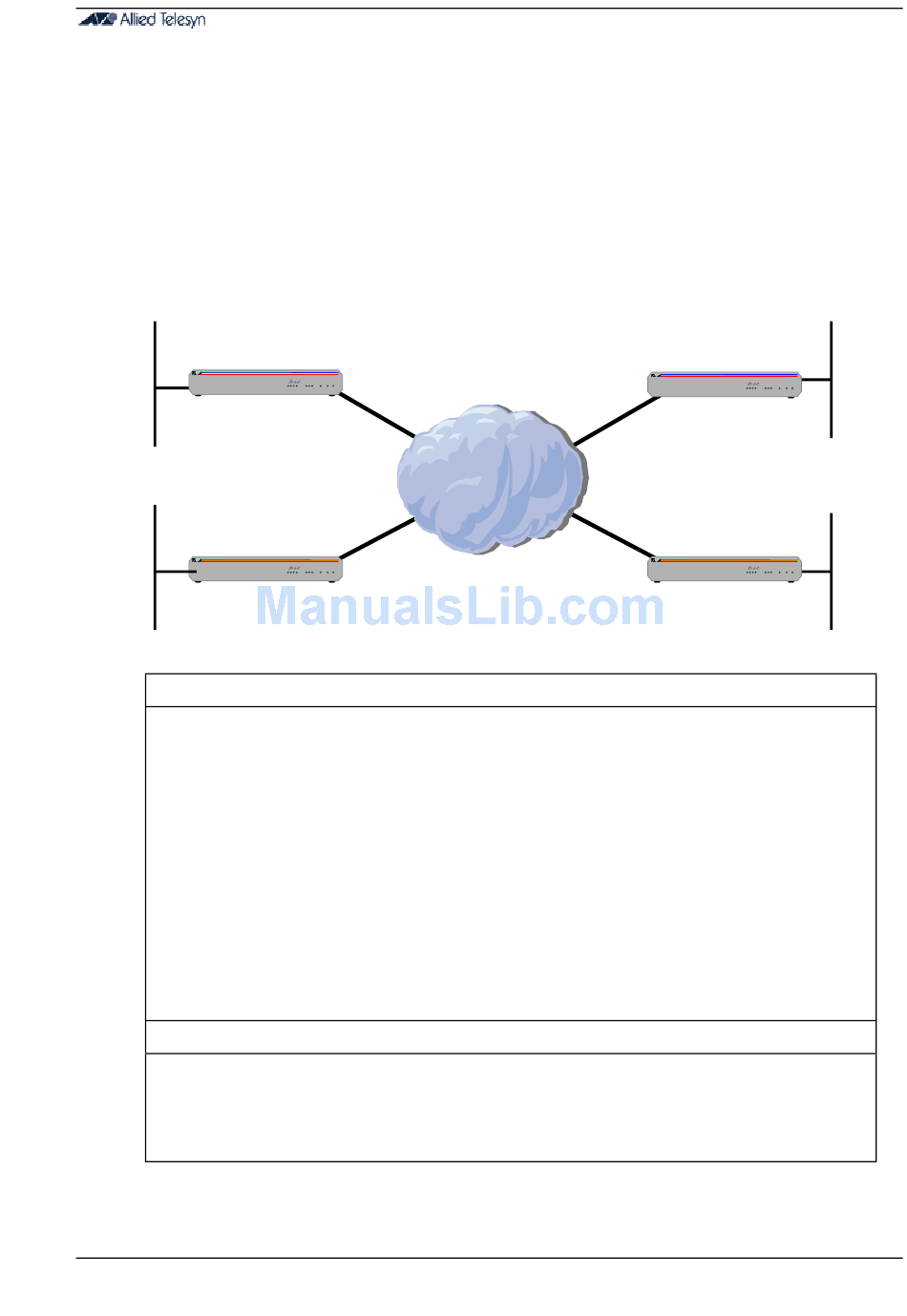

4.1. Standard Frame Relay for LMI REV 1

192.168.1.0
Site A
CentreCOM AR300
A cce s s R out er
192.168.254.1
192.168.4.0
Site D
CentreCOM AR300
A cce s s R out er
Router A
#
# Frame Relay Configuration
# Note: By default LMI is set to "LMIrev1" which is the same as "cisco" LMI type.
create fr=0 over=syn0
#
# IP Configuration
#
enable ip
add ip int=fr0 ip=192.168.254.1
add ip int=eth0 ip=192.168.1.1
add ip route=192.168.2.0 next=0.0.0.0 mask=255.255.255.0 int=fr0 dlc=102
add ip route=192.168.3.0 next=0.0.0.0 mask=255.255.255.0 int=fr0 dlc=103
add ip route=192.168.4.0 next=0.0.0.0 mask=255.255.255.0 int=fr0 dlc=104
Router B, C, and D must have the ip addresses and routes changed appropriately
To use RIP instead, remove the static routes and add the following lines
Add ip rip int=fr0 dlc=102
Add ip rip int=fr0 dlc=103
Add ip rip int=fr0 dlc=104
(LMI Rev 1 is default LMI for Telecom New Zealand)
Helpful Scripts
Revision 5.8.7; 5 April 2001
(Sometimes referred to as "cisco" LMI type)
DLC=101
LAN W AN SYS T EM
Frame
Relay
(Meshed)
DLC=104
LAN W AN SYS T EM
192.168.254.4
Site B
DLC=102 CentreCOM AR30 0
A cce ss R out er
192.168.254.2
Site C
DLC=103
CentreCOM AR30 0
A cce ss R out er
192.168.254.3
Helpful Scripts
192.168.2.0
LAN W AN SYS T EM
192.168.3.0
LAN W AN SYS T EM
