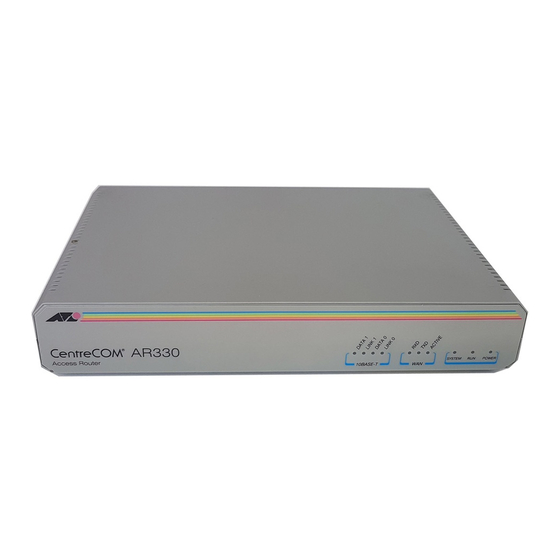

AR SERIES ROUTER
HARDWARE REFERENCE
S i m p ly c o n n e c t i n g t h e wo r l d

Advertisement

Table of Contents
loading

Related Manuals for Allied Telesis AR Series

Summary of Contents for Allied Telesis AR Series

  • Page 1 AR SERIES ROUTER HARDWARE REFERENCE S i m p ly c o n n e c t i n g t h e wo r l d...
  • Page 2 AR Router AR Router Hardware Reference Document Number C613-03031-01 REV C. Copyright © 1999-2002 Allied Telesyn International, Corp. 19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA. All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn.

  • Page 3: Table Of Contents

    Hardware Reference Contents Introduction ...................... 5 Models Covered By This Reference ..............6 Where To Find More Information ..............6 Using Windows Terminal and Windows Hyperterminal ........7 Router Start-up ....................10 Online Documentation ..................15 To Access Online Documentation .............. 15 AT-TFTP Server ....................
  • Page 4 AR Router Installing a FLASH SIMM ................93 AT-AR720 Dip Switch Settings ..............94 Diagnostics ....................95 Replacing Boot EPROMs ................97 Contacting Us ....................100 C613-03031-01 REV C...

  • Page 5: Introduction

    Hardware Reference Introduction This Hardware Reference describes the hardware features of all AR300, AR400, and AR700 Series router models, including information on Mini Accelerator Cards (MACs) and PCI Accelerator Cards (PACs). Hardware and installation information for Port Interface Cards (PICs) and Network Service Modules (NSMs) can be found in their respective Quick Install Guides and Hardware References.

  • Page 6: Models Covered By This Reference

    AR Router Models Covered By This Reference This Hardware Reference includes information on the following models: AR300L(S) AR300(S) AR310(S) AR320 AR330 AR350 AR370(S) AR370(U) AR390 AR395 AR410 AR720 AR740 Hardware Reference updates can be found at www.alliedtelesyn.co.nz/ documentation/documentation.html. Where To Find More Information The Documentation and Tools CD-ROM bundled with each router contains the complete Document Set for your router and, where applicable, its expansion options.

  • Page 7: Using Windows Terminal And Windows Hyperterminal

    Hardware Reference The following documents are included if your router has PIC bays or an NSM bay: The Port Interface Card Quick Install Guide, which outlines the procedure for installing PICs; and the Port Interface Card Hardware Reference, which provides detailed information on PICs. The following documents are included if your router has an NSM bay: The Network Service Module Quick Install Guide, which outlines the procedure for installing an NSM;...
  • Page 8 AR Router In the Phone Number dialog box: From the “Connect using:” drop-down list, select: • “Direct to Com n” Where “COM n” is the COM port on the PC used to connect to the router. • Click “OK”. In the COMn Properties dialog box, set: •...
  • Page 9 Hardware Reference From the File menu, select: • “Properties” In the Connection Properties dialog box, click the Settings tab and set: • “Function, arrow, and ctrl keys act as” to “Terminal keys” • “Emulation” to VT100. Click “ASCII Setup” to display the ASCII Setup dialog box. Uncheck: •...

  • Page 10: Router Start-Up

    AR Router Save the current session. From the File menu, select: • “Save”. This creates a connection icon with the name you assigned in the HyperTerminal group. To use the configuration: • Double-click the connection icon in the HyperTerminal group. When the HyperTerminal window appears, press: •...
  • Page 11 Hardware Reference All configuration information is stored in FLASH memory as configuration scripts. these scripts contain standard router commands. When a configuration command is entered at the command prompt from a terminal, terminal emulation program, or Telnet session, the command only alters the dynamic configuration. This is not saved over a power cycle.
  • Page 12 AR Router After the self tests are complete, the manager is given the option of forcing a mandatory boot from the EPROM release. The message: Force EPROM download (Y)? is displayed on the terminal connected to the console port (port 0) and the router pauses.
  • Page 13 Hardware Reference FAIL: RAM presence, invalid PD bits, SIMM 0. ERROR: RAM presence, invalid PD bits, SIMM 1. The presence detect bits for either RAM SIMM stick (Flash memory) had an invalid value. This is fatal for SIMM position 0 and an error for SIMM position 1.
  • Page 14 AR Router FAIL: BBR test, only 16k bytes found. The BBR size/location test completed, but only the displayed amount of memory was found. This amount is less than the minimum required to run the router software. INFO: Self tests complete. The start-up tests have finished.

  • Page 15: Online Documentation

    Hardware Reference Online Documentation This section provides a step-by-step guide to accessing online documentation. To Access Online Documentation To use the CD-ROM, follow these steps: Insert your router’s Documentation and Tools CD-ROM in the CD-ROM drive. If the Welcome screen does not appear. Select "Run"...
  • Page 16 AR Router The "Default file transfer directory" field specifies the directory that AT- TFTP Server will read from or write to for file requests that do not include a directory specification. To prevent unauthorised access to private directories, enter a path name in the "Restrict to directory"...

  • Page 17: Memory

    Hardware Reference Memory All AR300 Series routers, except the AR390 and AR395, have 8MB of fixed (non-expandable) DRAM. The AR390, AR395, AR410, and AR700 Series routers have 16MB of fixed (non-expandable) DRAM. The amount of DRAM present in a router can be checked using the command: SHOW SYSTEM This will produce a display like that shown in Figure 2 on page 17.

  • Page 18: Ar300 Series Routers

    AR Router AR300 Series Routers The AR300 Series comprises a family of fixed function routers. Models are distinguished by the type of WAN port on the base CPU card and the number of analogue voice ports supported (Tabl e3 on page 18). Table 3: Interface configurations for AR300 Series routers.

  • Page 19: Front And Rear Panels

    Hardware Reference Front and Rear Panels The following figures and tables show the front and rear panels, and the functions of the front panel LEDs, for each AR300 Series router. AR300 Series Model Front and Rear Panel View LED Functions AT-AR300L(S) AT-AR300(S) Figure 3 on page 19...
  • Page 20 AR Router Table 4: Functions of the front panel LEDs on the AT-AR300L(S)/AT-AR300(S)/ AT-AR310(S) router. Function LAN Link Lit when the Ethernet interface is connected to a device (e.g., a hub), which is generating link pulses. This LED is normally lit. LAN Txd Lit when data is being transmitted over the Ethernet interface.
  • Page 21 Hardware Reference Table 5: Functions of the front panel LEDs on the AT-AR320/AT-AR330 router . Function LAN Data 1 Lit when data is being transmitted over the Ethernet 1 interface. LAN Link 1 Lit when the Ethernet 1 interface is connected to a device (e.g., a hub), which is generating link pulses.
  • Page 22 AR Router Table 6: Functions of the front panel LEDs on the AT-AR350 router . Function LAN Link Lit when the Ethernet interface is connected to a device (e.g., a hub), which is generating link pulses. This LED is normally lit. LAN Txd Lit when data is being transmitted over the Ethernet interface.
  • Page 23 Hardware Reference Table 7: Functions of the front panel LEDs on the AT-AR370(S) router . Function LAN Link Lit when the Ethernet interface is connected to a device (e.g., a hub), which is generating link pulses. This LED is normally lit. LAN Txd Lit when data is being transmitted over the Ethernet interface.
  • Page 24 AR Router Table 8: Functions of the front panel LEDs on the AT-AR370(U) router . Function LAN Link Lit when the Ethernet interface is connected to a device (e.g., a hub), which is generating link pulses. This LED is normally lit. LAN Txd Lit when data is being transmitted over the Ethernet interface.

  • Page 25: The Main System

    Hardware Reference Table 9: Functions of the front and rear panel LEDs on the AT-AR390 and AT-AR395 routers. Function LAN Link Lit when the Ethernet interface is connected to a device (e.g., a hub), which is generating link pulses. This LED is normally lit. LAN Txd Lit when data is being transmitted over the Ethernet interface.

  • Page 26: Hardware Features

    AR Router Set asynchronous port default to: • 9600 bps • 8 data bits • 1 stop bit • No parity • Hardware flow control. Hardware Features All models have a DIP switch, which is located on the router’s rear panel. DIP switch functions are shown in Table 10 on page 26.
  • Page 27 Hardware Reference All jumpers should be left in the factory default positions unless you are advised otherwise by your authorised Allied Telesyn distributor or reseller. Jumpers should only be replaced by authorised service personnel. Unauthorised opening of the router lid may cause danger of injury from electric shock, damage to the router, and invalidation of the product warranty.
  • Page 28 AR Router Figure 10: Location of main components on the AT-AR320, AT-AR320, and AT- AR330 base CPU cards. AMPLIMITE 50 WAY SYNCHRONOUS 0 RJ45 RJ45 ASYNCHRONOUS CONFIG PORTS 0 & 1 ETHERNET 0 ETHERNET 1 SYNCHRONOUS 0 CONNECTOR MAC CARD SLOT WARNING: LITHIUM BATTERY DO NOT DISPOSE IN FIRE...
  • Page 29 Hardware Reference Figure 12: Location of main components on the AT-AR370(S) base CPU card. AMPLIMITE 50 WAY SYNCHRONOUS 0 RJ45 RJ45 RJ45 ASYNCHRONOUS CONFIG PORTS 0 & 1 ISDN ISDN ETHERNET 0 SYNCHRONOUS 0 CONNECTOR S/T BUS BRI 0 MAC CARD SLOT BOOT EPROM WARNING: LITHIUM BATTERY...
  • Page 30 AR Router Figure 13: Location of main components on the AT-AR370(U) base CPU card. AMPLIMITE 50 WAY SYNCHRONOUS 0 RJ45 RJ45 ASYNCHRONOUS CONFIG PORTS 0 & 1 ISDN ETHERNET 0 SYNCHRONOUS 0 CONNECTOR BRI 0 J1 (NT MODE) MAC CARD SLOT BOOT EPROM WARNING: LITHIUM BATTERY...
  • Page 31 Hardware Reference Figure 14: Location of main components on the AT-AR390 and AT-AR395 base CPU cards. RJ45 RJ45 120Ω J2 J3 ASYNCHRONOUS CONFIG PORTS 0 & 1 120Ω G.703/PRI ETHERNET 0 75Ω ISDN 0 GND CAP (TE/NT MODE) MAC CARD SLOT BOOT EPROM WARNING: LITHIUM BATTERY...
  • Page 32 AR Router For a complete description of the analogue voice port features and the commands available to configure the PABX services, see the Software Reference for your router. LAN Ports All models in the AR300 Series, except the AT-AR330, have a single Ethernet 10BASE-T LAN port.

  • Page 33: Ar400 Series Routers

    Hardware Reference Several grounding options are available for coaxial connectors. The factory default should suit all countries, but the jumper selection in Tabl e14 on page 31 provides flexibility. Normal practice is to ground one end only of each cable, usually the Tx cable.
  • Page 34 AR Router The MAC slot can accommodate any one of the following MAC cards: • AT-AR010 EMAC, Encryption MAC card. • AT-AR011 ECMAC, Compression/Encryption MAC card. • AT-AR011 V2 ECMAC, Compression/Encryption MAC card. • AT-AR012 CMAC, Compression MAC card. MACs should only be installed by authorised service personnel. Unauthorised opening of the router lid may cause danger of injury from electric shock, damage to the router, and invalidation of the product warranty.
  • Page 35 Hardware Reference Table 16: AR410 System LEDs State Function Power Green The router is receiving power and the power switch is in the ON position System Amber The Router is malfunctioning Normal operation Enabled Green A PIC card is correctly installed and has been detected by the router (PIC Bay 0) No card is installed...

  • Page 36: Ar700 Series Routers

    AR Router The RS-232 asynchronous serial port (ASYN 0) can be used as a general purpose port for terminals, printers or modems. The default communications settings are: • 9600 bps • 8 data bits • 1 stop bit • no parity •...

  • Page 37: Ar720 Router

    Hardware Reference AR720 Router The AT-AR720 router consists of a base CPU card, enclosure and power supply. The base CPU card supports a single 10/100 autosensing Ethernet LAN port and two asynchronous RS-232 ports. The chassis has two Port Interface Card (PIC) bays, which can accommodate any combination of the following PICs: AT-AR020 PRI E1/T1 PIC, one Primary Rate E1/T1 port.
  • Page 38 AR Router Figure 16: Front and rear panels of the AR720 Series router. Front Panel Model name AR720 STATU POWE SYSTE CLEA SECURIT Multi-Functional Remote Router LEDs Two PIC bays Rear DISCONNECT MAINS SUPPLY BEFORE REMOVING STATU ETHERNE PORT INTERFACE ENGIN ACT DAT ER CLR...
  • Page 39 Hardware Reference Table 18: Functions of LEDs of the AT-AR720 router. (Continued) Function Clear Lit when a secure router has enabled PPP interfaces or Frame Relay circuits that are configured to send clear text. The Main System Main features of the AT-AR720 base CPU card are: 50 MHz RISC processor.

  • Page 40: Ar740 Router

    AR Router AR740 Router The AT-AR740 router consists of a base CPU card, enclosure, and power supply. The base CPU card supports two 10/100 autosensing Ethernet LAN ports and two asynchronous RS-232 ports. AT-AR740s have a Network Service Module (NSM) bay and two Port Interface Card (PIC) bays.
  • Page 41 Hardware Reference Figure 17: Front and rear panels of the AT-AR740 Series router. Front Panel STATUS Modular Branch Office Router POWER SYSTEM CLEAR SECURITY Base LEDs Rear Panel DC Power inlet for RPS Two PIC bays with PICs installed Power PIC 1 DISCONNECT POWER BEFORE INSTALLING/REMOVING PIC PIC 0...
  • Page 42 AR Router Table 19: Functions of AT-AR740 router LEDs. (Continued) Function Lit when data is transferred to or from the MAC card. Lit when there is an error in the data transmission to or from the MAC card. Clear Lit when a secure router has enabled PPP interfaces or Frame Relay circuits that are configured to send clear text.
  • Page 43 Hardware Reference Figure 18 on page 43 shows the location of the main components on the AT- AR740 base unit. There are no user-selectable jumpers or DIP switches. Figure 18: Location of main components on the AT-AR740 base CPU card. RJ45 RJ45 LNK/...
  • Page 44 AR Router AT-AR740 AC AC models of the AT-AR740 have a universal AC input connector and a power switch on their rear panels. A DB25 connector for an optional external Redundant Power Supply (RPS), such as the AT-RPS 740, is also located on the rear panel.

  • Page 45: At-Rps 740

    Hardware Reference Table 20: DB25 RPS power connector pin out on the AT-AR74 0 . Function Direction 1, 25 Keying 2, 14 +12V input 3-5, 15-17 input 6-8, 18-20 input -12V input output Main PSU error output Main fan error output RPS disconnected input...

  • Page 46: Dc Supply Cables

    AR Router Figure 20: Front and rear panels of the AT-RPS 740. Front panel Rear panel AC POWER 1 AC POWER 2 RPS DC OUTPUT 1 RPS STATUS ROUTER STATUS RPS DC OUTPUT 2 AC Power AC Power AC Power RPS Fan Main PSU RPS PSU...

  • Page 47: Specifications

    Hardware Reference Table 21: DB25 RPS power connector pin out on AT-RPS 740 . Function Direction 1, 25 Keying 2, 14 +12V output 3-5, 15-17 output 6-8, 18-20 output -12V output input Main PSU error input Main fan error input output Sense 0V input...

  • Page 48: Leds

    AR Router AC Power Supply • Universal 110/240 VAC 50/60 Hz input DC Output • 5V/6.5A • 12V/1.0A • -12V/0.2A LEDs LEDs on the rear panel indicate the RPS’s operational status. Table 22: AT-RPS 740 LEDs. State Function Power Green The RPS unit is receiving AC power and the voltage is within an acceptable range.

  • Page 49: Mini Accelerator Cards (Macs)

    Hardware Reference Mini Accelerator Cards (MACs) Mini Accelerator Cards (MACs) provide additional processing features or performance, but do not add extra physical interfaces to the router. A MAC can be installed in the dedicated MAC slot (labelled Coprocessor Interface) on all AR300 Series, AR400 Series, and AR700 Series routers.

  • Page 50: Compression

    AR Router Compression MAC-based compression has the following features: Local 32-bit processor for high speed control and data transfer. Dedicated high performance 32-bit compression hardware. High compression ratio Lempel-Ziv algorithm in hardware. 2 MBytes of history memory. Support for up to 127 compression channels. Compression and decompression operations are performed by a 32-bit data compression coprocessor specifically designed for high-performance Lempel- Ziv compression applications.

  • Page 51: Dual Mode

    Hardware Reference Dual Mode Throughput of an encrypted link can be dramatically increased by using data compression. To support this, ECMACs support both encryption and compression to provide a dual mode which allows combined compression and encryption operations. So that the compression phase will have the best opportunity at finding non-random data, compression occurs before encryption, in the order: compression →...

  • Page 52: Compression

    AR Router Figure 24: Location of main components on the AT-AR061 ECPAC card. PAC Connector Hole for PAC fastner Holes for PAC fasteners Compression PAC-based compression has the following features: Local 32-bit processor for high speed control and data transfer. Dedicated high performance 32-bit compression hardware.

  • Page 53: Encryption

    Hardware Reference Figure 25: Typical hardware compression ratios by file type. Compression Ratio Font Program Window Text Object Spread C source Bitmap TIFF sheet File Type CMPRATIO Encryption PAC-based encryption has the following features: Local 32-bit processor for high speed control and data transfer. Dedicated high performance 32-bit Data Encryption Standard –...

  • Page 54: Flash Memory

    AR Router FLASH Memory FLASH memory is a nonvolatile reprogrammable memory storage device for router software releases, allowing upgrades to be remotely loaded from any WAN or LAN port. FLASH memory is also used to store other types of data such as patches, logs and configurations.
  • Page 55 Hardware Reference Figure 26: Example output from the SHOW SYSTEM command for the AT-AR720 router. Router System Status Time 17:10:06 Date 25-Sep-1999. Board Bay Board Name Serial number -------------------------------------------------------------------------------- Base AR720 M1-0 6845218 IC Module AR022 PIC Eth M2-0 6844595 IC Module AR023 PIC Sync M1-1...

  • Page 56: Interfaces

    AR Router Figure 28: Example output from the SHOW FILE command for an AT-AR720. creator name type size file date & time address check ----------------------------------------------------------------------------- flash inst release 15-Oct-1999 10:23:08 02723B20 flash load 52772 300236 15-Oct-1999 10:11:47 02559AC4 flash load 52-181 1575696 15-Oct-1999 10:21:48...
  • Page 57 Hardware Reference Table 24: Pinout of the DB9 female connectors on asynchronous interfaces (pins are numbered from left to right) . Function Signal Direction Not connected Output from router Input to router Input to router Output from router Input to router Output from router RING Input to router (only available on expansion card interfaces)

  • Page 58: Synchronous Interfaces

    AR Router Asynchronous interfaces follow the RS-232 standard. A range of speeds is selectable using the SET PORT command from the Interfaces chapter of your router’s Software Reference. Not all signals need to be connected. In particular, both DCD and CTS are not required unless the interface has been specifically set up to use them.

  • Page 59: Ethernet Interfaces

    Hardware Reference data, while asynchronous modems don’t require a clock and rely on the inherent framing provided by the start and stop bits. Normally, any modem 9600 bps or faster will be synchronous. The router can be connected to other remote routers to form a wide area network (WAN), using synchronous modems connected to the synchronous interfaces on the router’s rear panel.

  • Page 60: Basic Rate Isdn Interfaces

    AR Router Basic Rate ISDN Interfaces Basic Rate ISDN (BRI) interfaces support two 64K B channels and one D channel. On some routers and expansion cards the operational mode of the BRI ISDN interface (TE or NT) is determined by jumpers mounted on the CPU or expansion card.

  • Page 61: Voice Ports

    Hardware Reference Table 28: Connection standard for Primary Rate ISDN BNC 75Ω Ω Ω Ω connectors. Signal Connection TX-/RX- Outer conductor (i.e., shield) TX+/RX+ Inner conductor Table 29: Connection standard for Primary Rate ISDN RJ-45 120Ω Ω Ω Ω connectors (from left to right, with latch down, as viewed from the rear) .

  • Page 62: Asynchronous Interface Tests

    AR Router AR routers support a wide range of interface types, including Ethernet, asynchronous, synchronous, Basic Rate ISDN and Primary Rate ISDN. Each interface type (except Ethernet interfaces on the AT-AR026 PIC) can be tested independently using the Test Facility software. Most tests, however, will also require the use of a loopback plug.

  • Page 63: Ethernet Lan Interface Tests

    Hardware Reference where n is the interface number. This will run the test for 4 minutes. Use the SHOW TEST command (from the Test Facility chapter of your router’s Software Reference), to observe the test progress. Ethernet LAN Interface Tests The Test Facility will not test Ethernet interfaces on AT-AR026 PICs.
  • Page 64 AR Router The transition cable does more than simply change the physical connector. The router hardware ‘reads’ the cable type from the AMPLIMITE plug and enables or disables the internal driver electronics as required. To function correctly, the cables must be identical to the cables described in this section. The DCE cable type reverses the direction of data lines as well as clock lines.
  • Page 65 Hardware Reference Table 31: Transition cable pin wiring diagrams. Physical Interface Standard Pin Wiring Diagram RS-232 DTE Figure 30 on page 65 RS-232 DCE Figure 31 on page 66 V.35 DTE Figure 32 on page 67 V.35 DCE Figure 33 on page 68 X.21 DTE Figure 34 on page 69 X.21 DCE...
  • Page 66 AR Router Figure 31: Pin wiring diagram for an RS-232 DCE transition cable to an AMPLIMITE 50-way connector. D50 SCSI-2 Male D25 Female (to router) (to DTE) Insulating Sheath Cable Shield Connect to backshell Shield ← (103) → (104) ← (105) →...
  • Page 67 Hardware Reference Figure 32: Pin wiring diagram for a V.35 DTE transition cable to an AMPLIMITE 50-way connector. D50 SCSI-2 Male M34 Male (to router) (to DCE) Insulating Sheath Cable Shield Connect to backshell Shield SIG G → (103) (−5V) 25 ←...
  • Page 68 AR Router Figure 33: Pin wiring diagram for a V.35 DCE transition cable to an AMPLIMITE 50-way connector. D50 SCSI-2 Male M34 Female (to router) (to DTE) Insulating Sheath Cable Shield Connect to backshell Shield SIG G ← (104) → (114) →...
  • Page 69 Hardware Reference Figure 34: Pin wiring diagram for an X.21 DTE transition cable to an AMPLIMITE 50-way connector. D50 SCSI-2 Male D15 Male (to router) (to DCE) Insulating Sheath Cable Shield Connect to backshell Shield Ground → Transmit → Control ←...
  • Page 70 AR Router Figure 35: Pin wiring diagram for an X.21 DCE transition cable to an AMPLIMITE 50-way connector. D50 SCSI-2 Male D15 Female (to router) (to DTE) Insulating Sheath Cable Shield Connect to backshell Shield Ground ← Receive ← Indication (A) →...

  • Page 71: Isdn Interface Cables

    Hardware Reference ISDN Interface Cables AR routers support two types of ISDN interface—Primary Rate Access and Basic Rate Access. Figure 36 on page 71 shows how to wire a cable to connect a Basic Rate Interface (BRI) to the ISDN network terminating equipment (NT). Figure 36: Pin wiring diagram for an ISDN Basic Rate Interface cable.
  • Page 72 AR Router Figure 37: Pin wiring diagram for an ISDN Primary Rate Interface (120Ω Ω Ω Ω ) cable. RJ45 (to switch or router) ← ← Not connected → → Not connected Not connected Not connected Notes: → Output from switch or router; ← Input to switch or router. Use Grade 5 twisted pair cable, with pairs 1 and 2, and 4 and 5.

  • Page 73: Terminal And Modem Cables

    Hardware Reference Terminal and Modem Cables Table 32 on page 73 lists the wiring diagrams to follow when constructing terminal and modem cables for various connector and port combinations. Table 32: Terminal and modem cables. Cable Figure RJ-45 (router) to DB25 female (terminal) cable Figure 39 on page 73 DB9 female (router/DTE) to DB9 female (PC/terminal/DTE) cable Figure 40 on page 74...
  • Page 74 AR Router Figure 40: Pin wiring diagram for a standard DB9 male terminal cable. DB9 Female DB9 Female (to router/DTE) (to PC/terminal/DTE) ← (DCD) ← (RXD) → (TXD) → (DTR) Not Connected (GND) (RTS) → (CTS) Not Connected Pin 5 Pin 1 Pin 5 Pin 1...
  • Page 75 Hardware Reference While the asynchronous port (on router models with one asynchronous port) has a DCE female socket, the router’s internal electronics regard the port as DTE. Signals displayed using the SHOW PORT command therefore have a DTE perspective. The internal DTE pin roles are listed in Table 33 on page 75. Table 33: Internal DTE pin roles Role Figure 42: Pin wiring diagram for a DTE asynchronous port (DB9 male) to modem...
  • Page 76 AR Router Figure 43: Pin wiring diagram for a DCE asynchronous port (DB9 female connector) to modem cable. DB9 Male DB9 Male (to router/DCE) (to modem/DCE) Not connected → (TXD) 3 (TXD) ← (RXD) 2 (RXD) ← (CD) 1 (DCD) (GND) 5 (GND) →...

  • Page 77: Transceivers And Aui Cables

    Hardware Reference Figure 45: Pin wiring diagram for a Macintosh serial cable. MiniDin RJ45 (to Macintosh) (to switch or router) (RING) ← (DCD) → (RTS) ← (RXD) → (GND) ← (TXD) → (CTS) Not connected (DTR) Notes: → Output from switch or router; ← Input to switch or router. Cable version 1.0.

  • Page 78: Loopback Plugs For Testing Interfaces

    AR Router Voice Ports and Adaptor Cables Voice ports use a standard RJ11 connector. To connect telephones with a BT- style connector, use an RJ11-to-BT adaptor cable (Figure 46 on page 78). Figure 46: Pin wiring diagram for an RJ11 to BT adaptor cable. RJ11 Plug BT Socket Pin 1...
  • Page 79 Hardware Reference Table 35: Loopback plug pin wiring diagrams. Physical Interface Loopback Method/Pin Wiring Diagram RJ-45 asynchronous interface Figure 47 on page 79 DB9 Male Figure 48 on page 79 DB9 Female Figure 49 on page 80 Ethernet AUI interface Figure 50 on page 80 Ethernet TP interface Figure 51 on page 80...
  • Page 80 AR Router Figure 49: DB9 male loopback plug for testing asynchronous ports with DB9 female connectors. DB9 Male Asynchronous Port Loopback Plug (DB9 female connector) Pin 5 Pin 1 Pin 9 Pin 6 DB9 Female — Pin View DB9FLOOP Figure 50: Ethernet AUI loopback plug. AUI Loopback Plug (Female D15 connector) C1 = 100nF ceramic capacitor C2 = 100nF ceramic capacitor...
  • Page 81 Hardware Reference Figure 52: Primary Rate ISDN 120Ω Ω Ω Ω loopback plug. PRI Loopback Plug (RJ45 connector) Switch or router end view P120LOOP Loopback Plugs for BRI Interfaces If your router or expansion option’s BRI interface has an MC145474 or MC145574 transceiver, a loopback plug is required before the BRI interface can be tested.

  • Page 82: Pics And Nsms

    AR Router Figure 53: Basic Rate ISDN loopback plug wiring diagram. BRI Loopback Plug (RJ45 connector) Not connected Not connected Router end view of plug Not connected Not connected BRILOOP PICs and NSMs PICs (Port Interface Cards) can be installed in some AR400 Series routers and all AR700 Series routers.

  • Page 83: Installing A Mac

    Hardware Reference Installing a MAC MACs can be installed in all AR300, AR400, and AR700 series routers, one MAC per router. MACs should only be installed by authorised service personnel. Unauthorised opening of the router lid may cause danger of injury from electric shock, damage to the router, and invalidation of the product warranty.
  • Page 84 AR Router Replace the router lid and the power cord. Secure the router’s lid. If you disconnected an RPS supply or interface cables, reconnect them now. The MAC is now ready to test. Testing a MAC There are several ways to check that the MAC is installed and operating correctly.
  • Page 85 Hardware Reference Figure 54: Example output from the SHOW SYSTEM command for an AR720 router with an AT-AR011 V2 ECMAC installed. Router System Status Time 06:58:43 Date 15-Jun-2001. Board Bay Board Name Serial number -------------------------------------------------------------------------------- Base AR720 M1-0 40272628 AT-AR020-00 PIC E1/T1 PRI M1-0 42189364 AR011 ECMAC v2...
  • Page 86 AR Router If any MAC tests fail, check that the MAC is correctly installed in its slot and repeat the tests. Contact your authorised Allied Telesyn distributor or reseller if the MAC does not operate correctly. Once the MAC is operating, its functionality can be tested either by using the Test Facility software, which is built into the router, or by configuring a module to use the MAC.

  • Page 87: Installing A Pac

    Hardware Reference Installing a PAC PACs can be installed in AR740 Routers, one PAC per router. PACs should only be installed by authorised service personnel. Unauthorised opening of the router’s lid may cause danger of injury from electric shock, damage to the router, and invalidation of the product warranty. Before installing a PAC: Check that you have the correct tools and equipment.
  • Page 88 AR Router Figure 57: Location of PAC slot and pillar mounts on an AR740 base board. RJ45 RJ45 LNK/ LNK/ Swap Swap Button PORT 0 PORT 1 STATUS LEDs ETHERNET 0 ETHERNET 1 SLIDE-IN BAY 0 SLIDE-IN BAY 1 PIC BAY 0 PIC BAY 1 NSM BAY MAC CARD SLOT...
  • Page 89 Hardware Reference Testing a PAC There are several ways to check that the PAC is installed and operating correctly. First, check that the router has recognised the card. Turn on the router and enter the command: SHOW SYSTEM to display system information (Figure 54 on page 85). The first part of the display shows details of the cards installed in the router.
  • Page 90 AR Router Figure 58: Example output from the SHOW SYSTEM command for an AR740 router with an AT-AR061 ECPAC installed. Router System Status Time 09:28:27 Date 15-Jun-2001. Board Bay Board Name Serial number -------------------------------------------------------------------------------- Base AR740 M1-15 46689862 AT-AR022-00 PIC Eth M4-0 40239075 AT-AR026-00 PIC 10/100 Eth...
  • Page 91 Hardware Reference Figure 59: Example output from the SHOW LOG command for an AR740 router with an AT-AR061 ECPAC card installed. Date/Time S Mod Type SType Message -------------------------------------------------------------------------- 15 00:05:50 4 ENCO ENCO 7751 Found. Initialisation started 15 00:05:50 4 ENCO ENCO 7751 Initialisation Successful 15 00:05:50 7 SYS REST...
  • Page 92 AR Router Figure 60: Example output from the SHOW TEST command for an AR740 router with an AT-AR061 ECPAC installed. Router System Status Time 09:28:27 Date 15-Jun-2001. Board Bay Board Name Serial number -------------------------------------------------------------------------------- Base AR740 M1-15 46689862 AT-AR022-00 PIC Eth M4-0 40239075 AT-AR026-00 PIC 10/100 Eth...

  • Page 93: Installing A Flash Simm

    Hardware Reference Installing a FLASH SIMM Early models of AT-AR720 routers can be upgraded from the factory default 4MB of FLASH memory to 8MB of FLASH memory by installing a 4MB 80-way Single Inline Memory Module (SIMM) stick. SIMMs should only be installed by authorised service personnel. Unauthorised opening of the router lid may cause danger of injury from electric shock, damage to the router, and invalidation of the product warranty.

  • Page 94: At-Ar720 Dip Switch Settings

    AR Router the stick down onto the retaining latches and ensure the latches hold the stick firmly in place. Replace the router lid and the power cord. Secure the router’s lid. If you disconnected an RPS supply, reconnect it now. AT-AR720 Dip Switch Settings A DIP switch is used to change functional characteristics of the base CPU card.

  • Page 95: Diagnostics

    Hardware Reference Table 36: Functions of the DIP switch on the AT-AR720 base CPU card . DIP Switch Function Default SW1-1 Reserved (should be OFF) SW1-2 Enable startup messages (ON=enable) SW1-3 Reserved (should be OFF) SW1-4 Enable show cycles (ON=enable) SW1-5 Disable data cache (ON=disable) SW1-6...
  • Page 96 AR Router Enable diagnostics mode during start-up. During the router start-up process, at the prompt: Force EPROM download (Y)? press [Ctrl/D] on the terminal to enter diagnostics mode. A banner page will be displayed on the terminal (Figure 62 on page 96). This can be used to check that the terminal is correctly connected.

  • Page 97: Replacing Boot Eproms

    Hardware Reference Replacing Boot EPROMs AR300 Series routers have one boot EPROM and AR700 Series routers have two boot EPROMs. Boot EPROMs contain bootstrap code, which loads the main code from a software release file in FLASH memory. In rare circumstances the boot EPROM(s) may need to be changed.
  • Page 98 AR Router tool. Alternatively, a small flat-bladed screwdriver can be used. If so, gently lever each end of a particular boot EPROM a few millimetres at a time until it comes free. Table 38: Diagrams showing the locations of EPROMs for each router model. Router Model Diagram showing Boot EPROM location AT-AR300L(S)
  • Page 99 Hardware Reference Figure 63: Example output from the SHOW INSTALL command. Install Release Patch ------------------------------------------------------------ Temporary Preferred flash:load\8-181.rez Default EPROM (8-1.8.1) ------------------------------------------------------------ Current install ------------------------------------------------------------ Preferred flash:load\8-181.rez ------------------------------------------------------------ Install history ------------------------------------------------------------ No Temporary install selected Preferred install selected Preferred release successfully installed ------------------------------------------------------------ Troubleshooting If the router fails to reboot or functions incorrectly, then the most likely cause is...

  • Page 100: Contacting Us

    AR Router Contacting Us Allied Telesyn Offices and Locations UNITED KINGDOM ITALY Tel: (+44) 1235 442500 Tel: (+39) 02 416047 Fax: (+44) 1235 442590 Fax: (+39) 02 419282 SWEDEN SPAIN Tel: 08 131414 NORWAY Tel: (+34) 91 5591055 Tel: 2211 1181 Fax: (+34) 91 5592644 DENMARK Tel: 3332 3006...
