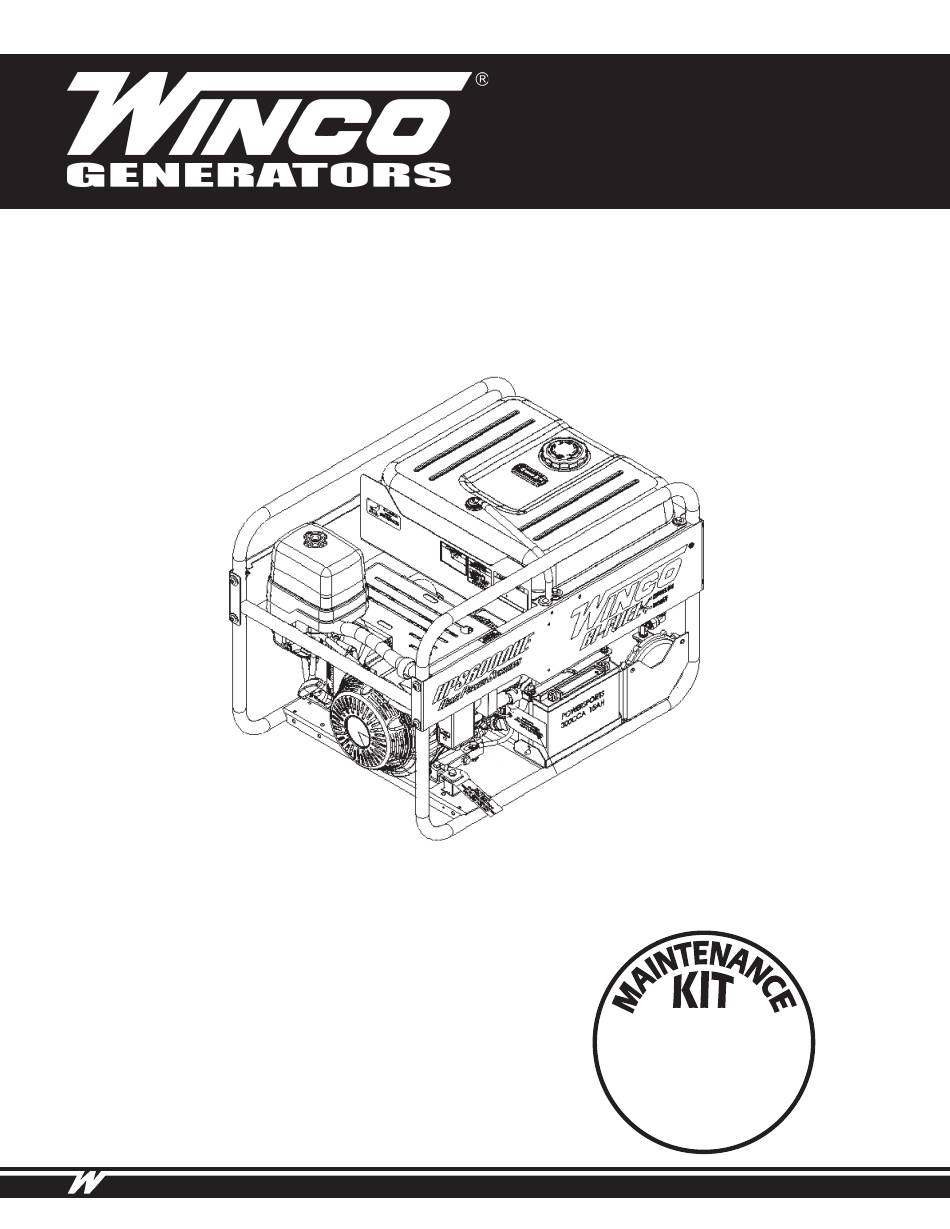

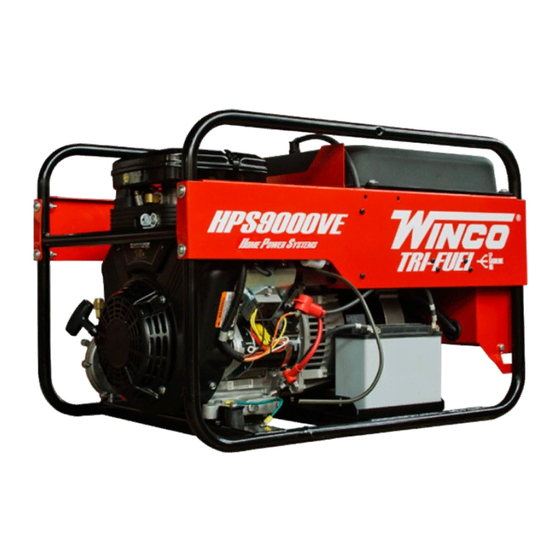

HPS9000VE/E
HPS9000VE-03/A
GENERATOR
INSTALLATION & OPERATORS
MANUAL
COPY YOUR MODEL AND SERIAL NUMBER HERE
No other WINCO generator has the same serial number as yours.
If you should ever need to contact us concerning this unit, it will
help us to respond to your needs faster.
MODEL _________________________________________________
16200-007
SERIAL NUMBER _________________________________________
PURCHASE DATE _________________________________________
DEALER NAME ___________________________________________
DEALER PHONE # ________________________________________
www.wincogen.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winco HPS9000VE/E
Summary of Contents for Winco HPS9000VE/E
- Page 1 MANUAL COPY YOUR MODEL AND SERIAL NUMBER HERE No other WINCO generator has the same serial number as yours. If you should ever need to contact us concerning this unit, it will help us to respond to your needs faster.
-
Page 2: Table Of Contents
Should you experience a problem please follow the “Troubleshooting Tables” near the end of this manual. The warranty listed in the manual describes what you can expect from WINCO should you need service assistance in the future. 60706-237/G... -
Page 3: Specifications
SPECIFICATIONS GENERATOR Model HPS9000VE/E HPS9000VE-03/A Surge Watts 9,000 Continuous Watts 8,000 Volts 120/240 Amps 67/33 Generator Manufacturer Mecc Alte Spa Generator Model Number S20W-110 Part Number 16346-009 Rotor Resistance 5.22 Ohms Stator Resistance 0.21 Ohms Cap Winding Resistance 0.87 Ohms... -
Page 4: Safety Information
SAFETY INFORMATION A. Do not refuel when the engine is running or hot. This engine generator set has been designed and B. Keep fuel containers out of reach of children. manufactured to allow safe, reliable performance. Poor C. Do not smoke or use open flame near the generator maintenance, improper or careless use can result in set or fuel tank. -
Page 5: Introduction
INTRODUCTION TESTING POLICY Before any generator is shipped from the factory, it is fully checked for performance. The generator is loaded to its full capacity, and the voltage, current, and frequency are carefully checked. Rated output of generator is based on engineering tests of typical units, and is subject to, and limited by, the temperature, altitude, fuel, and other conditions specified by the manufacturer of applicable engines. -
Page 6: Unit Capabilities
HPS9000VE/E - HPS9000VE-03/A: 120 Volt and 240 Volt receptacles are provided for connection to various loads. The diagram below represents this 8,000 watt (rated output) generator. -
Page 7: Preparing The Unit
1. As you receive your unit, it is critical to check it for any damage. If any damage is noted, it is always easiest to refuse the shipment and let WINCO take care of the freight claim. If you sign for the unit, the transfer of the ownership requires that you file the freight claim 2. -
Page 8: Ng Fuel
Reference numbers 1 through 3 in the diagrams Do not use galvanized pipe in the fuel line runs. your local WINCO dealer and can be used to shut off during above are system parts supplied by customer. is the engine-generator set. The following table is of the fuel... -
Page 9: Changing Fuel Types
UNIT OFF TANKPSI 7-11 in 7-11 in ine Size 4-6 oz 4-6 oz h black pipe STARTING TANK PSI 7-11 in 7-11 in black pipe 4-6 oz 4-6 oz Remember that whichever fuel delivery system or type of commended** NO LOAD TANK PSI 7-11 in 7-11 in... -
Page 10: Oil Alert System
this minimum acceptable size, the size of LP tank used will generally depend on how long you want the unit to run without refilling. Keep in mind the colder it gets, the slower LP will vaporize. This is the reason for the larger tanks at low temperatures. -
Page 11: Battery Installation
BATTERY INSTALLATION This engine-generator set is shipped with a battery tie down kit for customer installation. This kit consists of a battery tie down and hardware for installation of the customer supplied battery to operate it. This engine-generator set is designed for recoil and electric start. -
Page 12: Initial Start Up
INITIAL START UP 6. When the engine starts, open the choke gradually. The throttle control on these generators is preset and 7. The engine should promptly come up to operating locked to operate at 3600 RPM (nominal) with no load speed. -
Page 13: Natural Gas
7. Gradually move choke to the open position as the engine warms up. 8. The engine should promptly come up to operating speed. CAUTION: EQUIPMENT DAMAGE Never permit the choke to remain on after the engine has run for a short time. It is not necessary to choke the engine when it is warm. -
Page 14: Starting Hints
STARTING HINTS COLD WEATHER The slight variation in speed also affects the frequency of the output current. This frequency variation has no A. Use the proper oil for the temperature expected. appreciable effect in the operation of motors, lights, and B. -
Page 15: Connecting The Loads
CONNECTING THE LOADS APPLYING THE LOADS PERMANENTLY INSTALLED GENERATORS This WINCO portable generator ships with a bonded Allow the engine to warm up for two or three minutes neutral and overcurrent protection. NFPA 70 refers to this before applying any load. This will allow the engine to as a “separately derived system.”... - Page 16 applicable codes. The electrician will move the critical circuits to be powered during the outage to the emergency panel. Keep in mind only a limited amount of amperage is available from the generator set. Some circuit breakers may still have to be turned off to prevent an overload on the generator during the initial start up.
-
Page 17: Engine Care
F. Wash the pre-cleaner in liquid detergent and water. Outdoor temperatures determine the proper oil viscosity for Then allow it to thoroughly air dry. DO NOT oil the pre- the engines. Winco recommends our 5W-30 fully synthetic cleaner. oil to give you excellent protection in cold temperatures G. -
Page 18: Troubleshooting
TROUBLESHOOTING GENERATOR CARE Proper care and maintenance of the generator is necessary Problem Possible Causes to ensure a long trouble-free life. Won’t start Low oil level Fouled spark plug EXERCISING THE GENERATOR Out of fuel Start switch in OFF position The generator should be operated every three to four Fuel Valve turned off weeks. -
Page 19: Receptacle Wiring Diagram
RECEPTACLE WIRING DIAGRAM 60706-237/G... -
Page 20: Ca Evap Emission Control
WINCO written instructions and applicable codes. WINCO’s sole liability, and Purchaser’s sole remedy for a failure under this warranty, shall be limited to the repair of the product. At WINCO’s option, material found to be defective in material or workmanship under normal use and service will be repaired or replaced.
