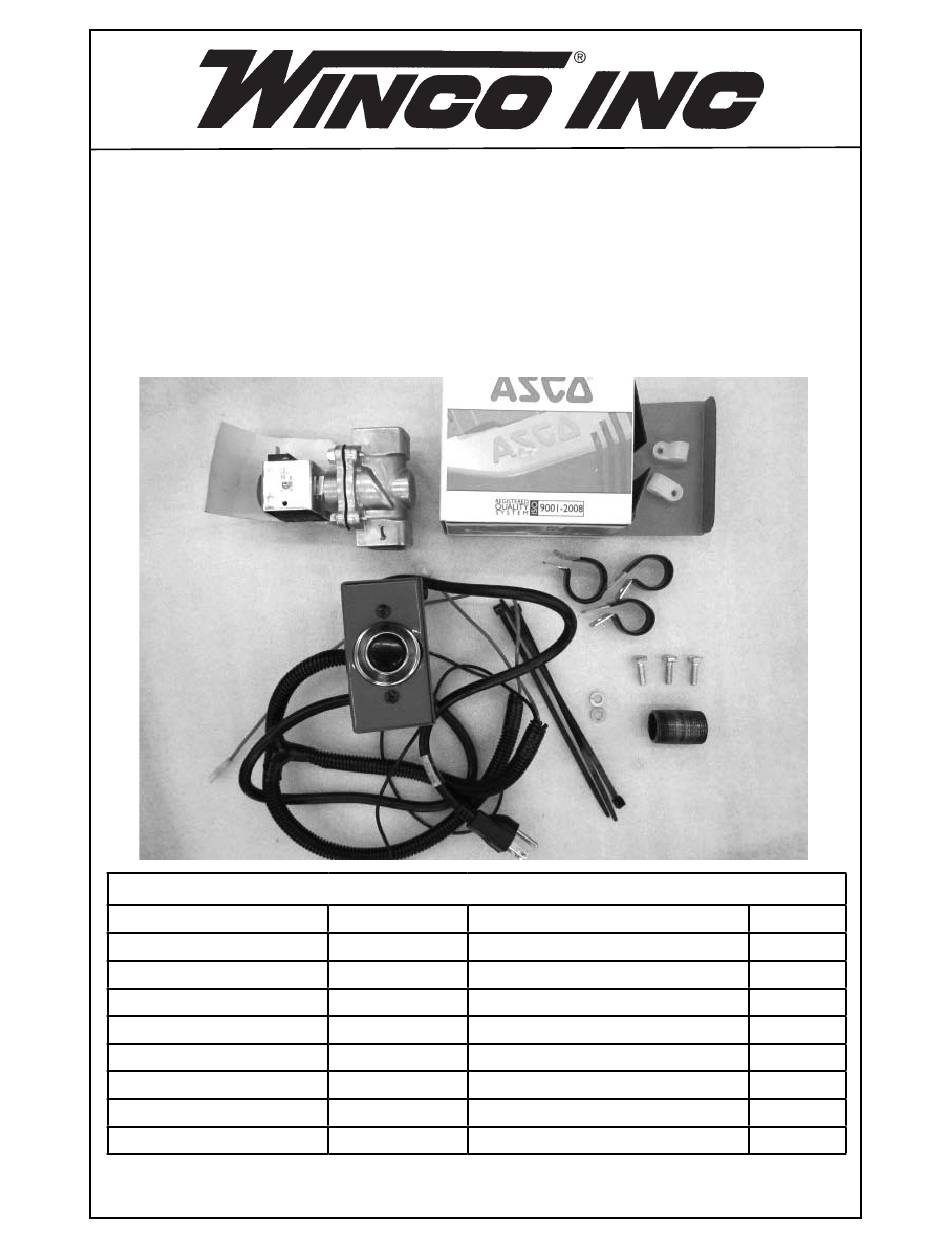

48039-006 Nylon Clamp 9739-003 Tube Clamp 479-000 Lock Washer 466-000 /4” X 20 X 3/4” Bolt 54074-006 Pipe Nipple 49975-0 Cable Tie * Not used on HPS6000HE/I and HPS9000VE/E models ** Used on HPS models prior to 203. 3256-00 64854-005I...
Page 2
STEP 1 • Install control box assembly (ref. 2) onto the frame of the gen-set (battery side) us- ing 2 bolts (ref. 6) and lock washers (ref. 5). • Tighten with a /2” end wrench. • Run the cord to the rear of the generator and plug into one of the receptacles. STEP 2 HPS6000HE/I •...
Page 3
STEP 2 HPS9000VE/E • Remove the bolt (A) holding the demand regulator down and rotate the demand regulator. This allows for turning of the pipe nipple and solenoid. • Thread the pipe nipple (ref. 7) onto the 90° elbow using pipe sealant.
Page 4
• Using the cable ties (ref. 8) provided, neatly tie excess wire loom, wire and power cable to prevent rubbing on the engine. HPS9000VE/E shown below. • TO START: Hold down control box button, turn key, engine will start. Once unit generates power (about second) release button.
