PERIODIC MAINTENANCE AND MINOR REPAIR
CAUTION:
Do not use a fuse of a higher amper-
age rating than recommended to
1
avoid causing extensive damage to
the electrical system and possibly a
fire.
2
3. Turn the key to "ON" and turn on
the electrical circuits to check if the
3
devices operate.
4. If the fuse immediately blows
4
again, have a Yamaha dealer
check the electrical system.
5
6
7
8
9
ECA10640

Replacing the headlight bulb

This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove cowling
page 6-9.)
2. Remove the headlight unit by re-
moving the bolts.

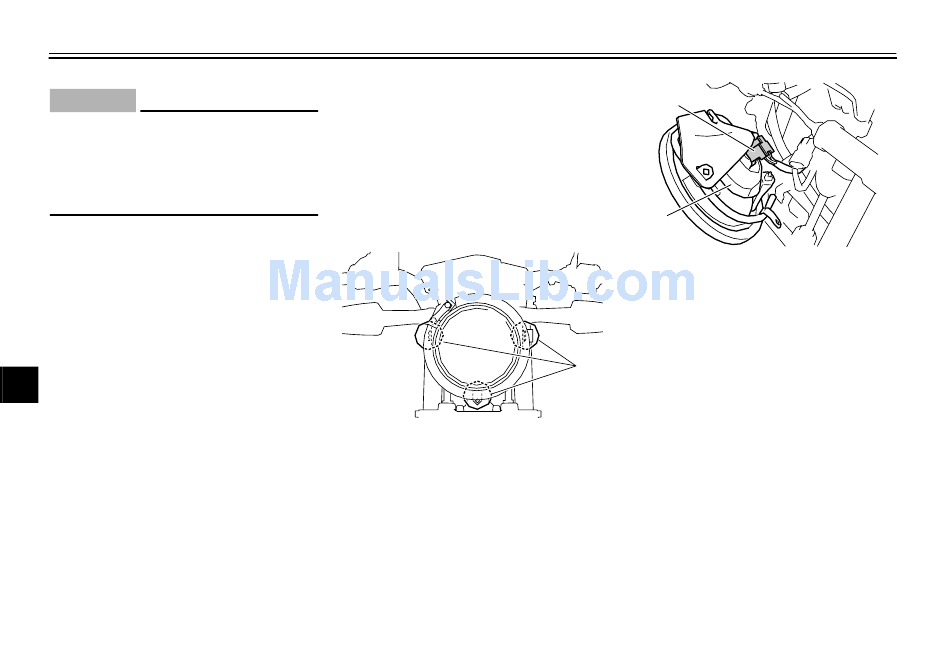

1. Bolt
3. Disconnect the headlight coupler,
and then remove the headlight
bulb cover.
6-34
EAU23812
1
A. (See
2
1. Headlight coupler
2. Headlight bulb cover
4. Remove the headlight bulb holder
by turning it counterclockwise, and
then remove the defective bulb.
1
