13. Electrical connection

Before the appliance is connected:
1) check that the main fuse and the domestic installation
can support the load;
2) check that the power supply is properly earthed in
compliance with the current rules;
3) check the socket or the double pole switch used for
the electrical connection can be easily reached with
the appliance built in the forniture unit.
This appliance is supplied without connection cable. A
suitable one must be fitted, in compliance with the
electric supply rate, provided with a proper plug and
able to carry the load specified on the rating plate. It has
to be a three-wired cable, with the earth wire marked
yellow-green. The cable type must be one of the following:
— H07 RN-F
— H05 RN-F
— H07 RR-F
— H05 VV-F
The plug has to be fitted in a proper socket.
If connecting the appliance directly to the electric system,
a double pole switch must be installed between the
appliance and the electricity supply, with a minimum
gap of 3 mm. between the switch contacts and of a type
suitable for the required load in compliance with the
current rules. The earth wire must not be interrupted by
the double switch pole.
The connection cable has to be placed in order that, in
each part, it cannot reach a temperature 50 C higher
than the room temperature.
After the connection is carried out, test the heating
elements for about 3 minutes.
The manufacturer disclaims any
responsability should all the safety
measures not be carried out.

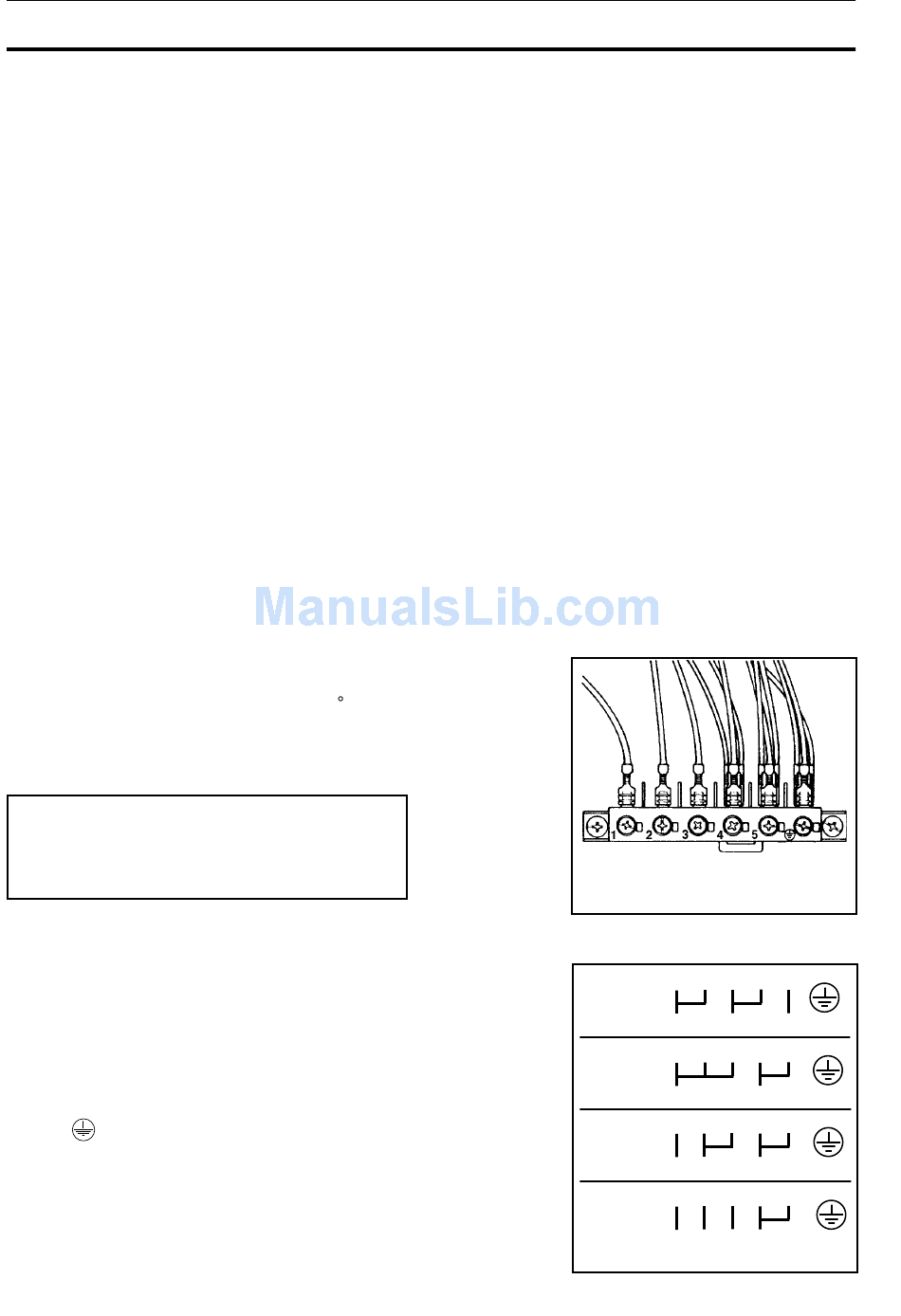

CONNECTION TO TERMINAL BLOCK
This appliance is provided with a 6 poles terminal block
(Fig. 16) set to operate with a 400 V single-phase
electrical connection with neutral wire.
To adapt the the terminal block to a different electrical
supply, carry out the connection as shown in Fig. 17.
The earth wire must be connected to ter minal
marked .
Once the connection is carried out, fit the cable into the
the cable clamp.
ELECTRICAL CONNECTION WITH THE HOB
This oven can be connected to hobs indicated on
page 76. The socket for connecting the hob is located
at the top of the oven cabinet.
The hobs come complete with connecting leads for
the hot plates/heat areas and ground cable; these
leads feature plug-in connectors.
Connection of the hob to the oven is carried out by
plugging-in these connectors to the corresponding
oven socket.
The plug-to-socket connection design is such as to
prevent possible wrong plugging-ins.
FO 0330
Fig. 16
230V 3~
230V 1~
400V 2N~
400V 3N~
FO 0474
Fig. 17
1 2 3 4 5
L1 L2 L3 PE
1 2 3 4 5
L1 N PE
1 2 3 4 5
L1 L2 N PE
1 2 3 4 5
L1 L2 L3 N PE
