PMA8000B-MP3Avidyne Version (-0403) Audio Selector Panel and Intercom System
1.6

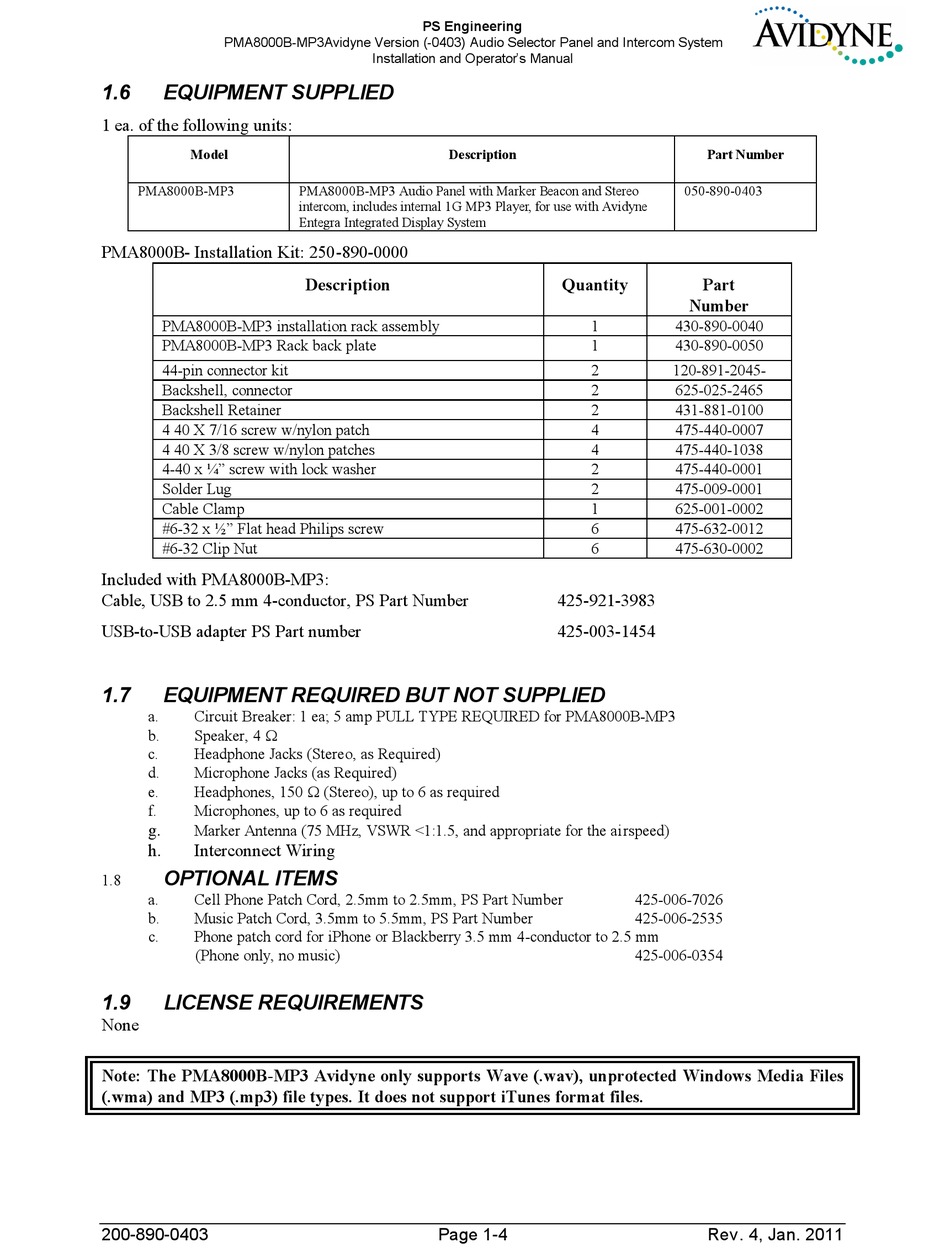

EQUIPMENT SUPPLIED

1 ea. of the following units:
Model
PMA8000B-MP3
PMA8000B- Installation Kit: 250-890-0000
PMA8000B-MP3 installation rack assembly
PMA8000B-MP3 Rack back plate
44-pin connector kit
Backshell, connector
Backshell Retainer
4 40 X 7/16 screw w/nylon patch
4 40 X 3/8 screw w/nylon patches
4-40 x ¼" screw with lock washer
Solder Lug
Cable Clamp
#6-32 x ½" Flat head Philips screw
#6-32 Clip Nut
Included with PMA8000B-MP3:
Cable, USB to 2.5 mm 4-conductor, PS Part Number
USB-to-USB adapter PS Part number
1.7

EQUIPMENT REQUIRED BUT NOT SUPPLIED

a. Circuit Breaker: 1 ea; 5 amp PULL TYPE REQUIRED for PMA8000B-MP3
b. Speaker, 4 
c. Headphone Jacks (Stereo, as Required)
d. Microphone Jacks (as Required)
e. Headphones, 150  (Stereo), up to 6 as required
f. Microphones, up to 6 as required
g.
Marker Antenna (75 MHz, VSWR <1:1.5, and appropriate for the airspeed)
h. Interconnect Wiring

OPTIONAL ITEMS

1.8
a. Cell Phone Patch Cord, 2.5mm to 2.5mm, PS Part Number
b. Music Patch Cord, 3.5mm to 5.5mm, PS Part Number
c. Phone patch cord for iPhone or Blackberry 3.5 mm 4-conductor to 2.5 mm
(Phone only, no music)
1.9

LICENSE REQUIREMENTS

None
Note: The PMA8000B-MP3 Avidyne only supports Wave (.wav), unprotected Windows Media Files
(.wma) and MP3 (.mp3) file types. It does not support iTunes format files.
200-890-0403
PS Engineering
Installation and Operator's Manual
Description
PMA8000B-MP3 Audio Panel with Marker Beacon and Stereo
intercom, includes internal 1G MP3 Player, for use with Avidyne
Entegra Integrated Display System
Description
Page 1-4
Part Number
050-890-0403
Quantity Part
Number
1 430-890-0040
1 430-890-0050
2 120-891-2045-
2 625-025-2465
2 431-881-0100
4 475-440-0007
4 475-440-1038
2 475-440-0001
2 475-009-0001
1 625-001-0002
6 475-632-0012
6 475-630-0002
425-921-3983
425-003-1454
425-006-7026
425-006-2535
425-006-0354
Rev. 4, Jan. 2011
