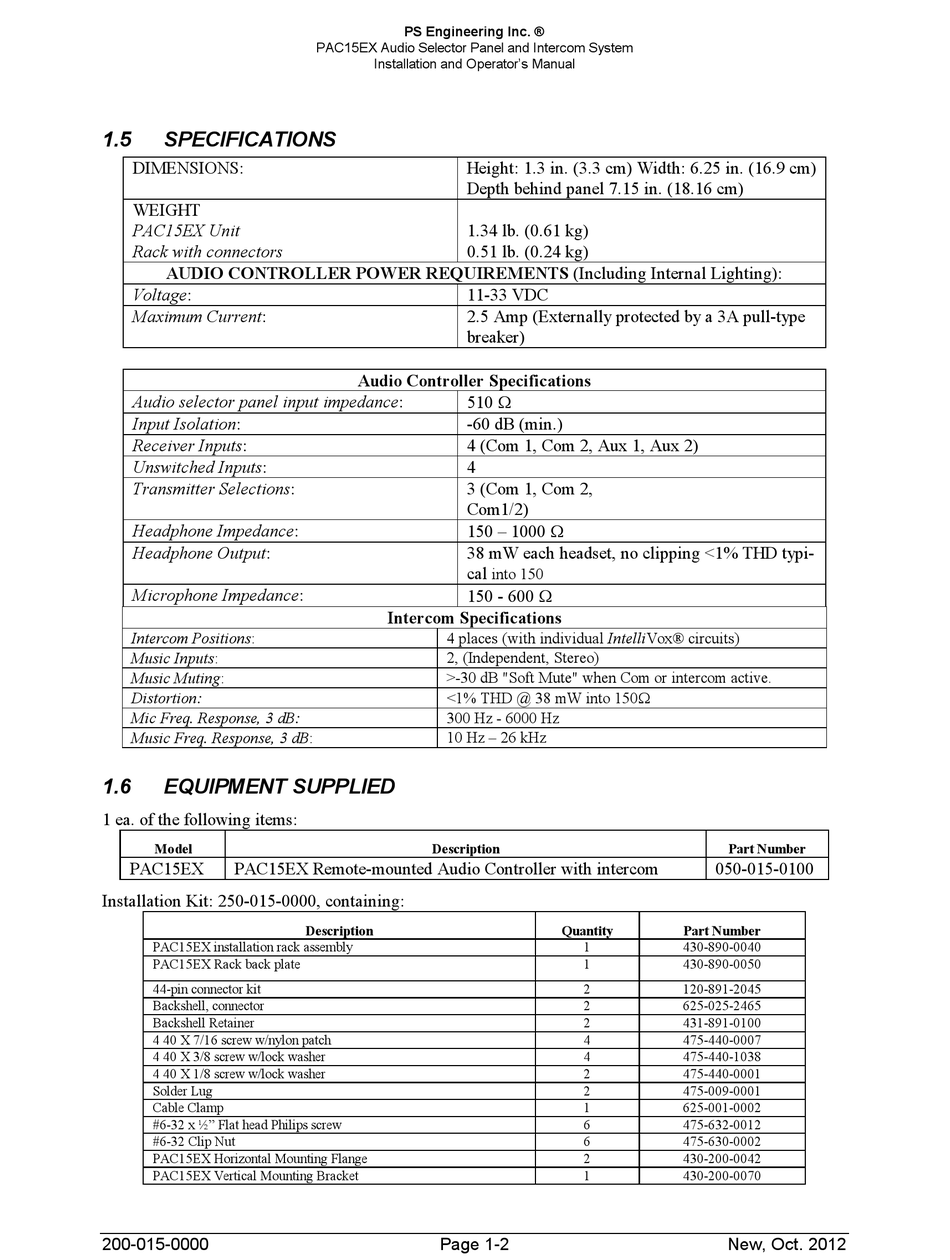

Specifications; Equipment Supplied - PS Engineering PAC15EX System Installation And Operation Manual

1.5

SPECIFICATIONS

DIMENSIONS:
WEIGHT
PAC15EX Unit
Rack with connectors
AUDIO CONTROLLER POWER REQUIREMENTS (Including Internal Lighting):
Voltage:
Maximum Current:
Audio selector panel input impedance:
Input Isolation:
Receiver Inputs:
Unswitched Inputs:
Transmitter Selections:
Headphone Impedance:
Headphone Output:
Microphone Impedance:
Intercom Positions:
Music Inputs:
Music Muting:
Distortion:
Mic Freq. Response, 3 dB:
Music Freq. Response, 3 dB:
1.6

EQUIPMENT SUPPLIED

1 ea. of the following items:
Model
PAC15EX PAC15EX Remote-mounted Audio Controller with intercom
Installation Kit: 250-015-0000, containing:
PAC15EX installation rack assembly
PAC15EX Rack back plate
44-pin connector kit
Backshell, connector
Backshell Retainer
4 40 X 7/16 screw w/nylon patch
4 40 X 3/8 screw w/lock washer
4 40 X 1/8 screw w/lock washer
Solder Lug
Cable Clamp
#6-32 x ½" Flat head Philips screw
#6-32 Clip Nut
PAC15EX Horizontal Mounting Flange
PAC15EX Vertical Mounting Bracket
200-015-0000
PS Engineering Inc. ®
PAC15EX Audio Selector Panel and Intercom System
Installation and Operator's Manual
Height: 1.3 in. (3.3 cm) Width: 6.25 in. (16.9 cm)
Depth behind panel 7.15 in. (18.16 cm)
1.34 lb. (0.61 kg)
0.51 lb. (0.24 kg)
11-33 VDC
2.5 Amp (Externally protected by a 3A pull-type
breaker)
Audio Controller Specifications
510 
-60 dB (min.)
4 (Com 1, Com 2, Aux 1, Aux 2)
4
3 (Com 1, Com 2,
Com1/2)
150 – 1000 
38 mW each headset, no clipping <1% THD typi-
cal
150 - 600 
Intercom Specifications
4 places (with individual IntelliVox® circuits)
2, (Independent, Stereo)
>-30 dB "Soft Mute" when Com or intercom active.
<1% THD @ 38 mW into 150
300 Hz - 6000 Hz
10 Hz – 26 kHz
Description
Description
Page 1-2
into 150
Quantity
1
1
2
2
2
4
4
2
2
1
6
6
2
1
Part Number
050-015-0100
Part Number
430-890-0040
430-890-0050
120-891-2045
625-025-2465
431-891-0100
475-440-0007
475-440-1038
475-440-0001
475-009-0001
625-001-0002
475-632-0012
475-630-0002
430-200-0042
430-200-0070
New, Oct. 2012
