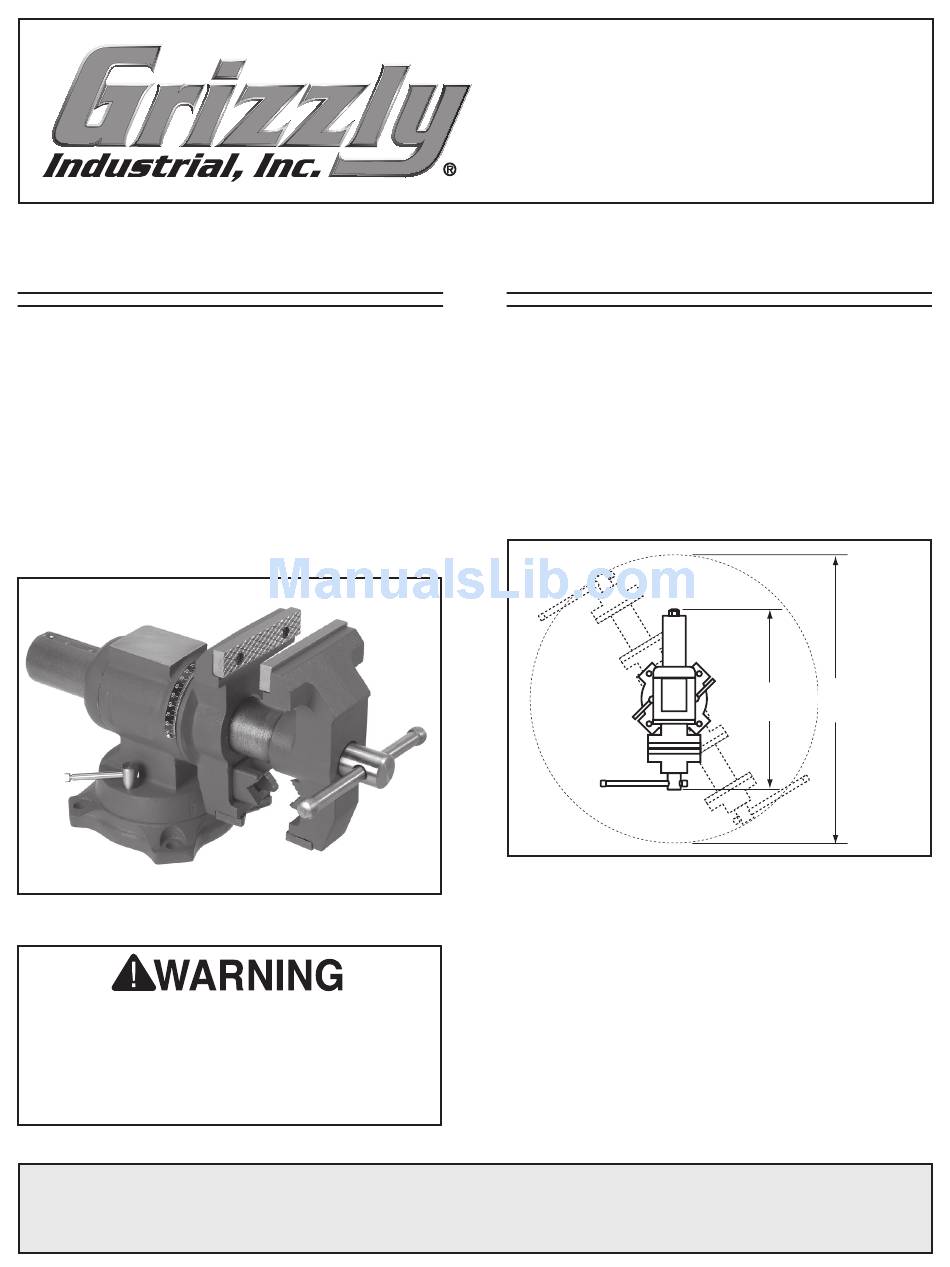

Grizzly H8188 Instruction Sheet

Introduction

Specifications

Flat Jaw Size ......................................... 4" x
Maximum Jaw Opening .................................... 4"
Pipe Jaw Maximum Diameter ....................... 1
Maximum Throat Depth ................................. 2¼"
Mounting Pattern .............. 100mm/4-hole square
Base Swivel Capability .................................360°
Jaw Rotation Capability ................................360°
Weight .......................................................22 lbs.

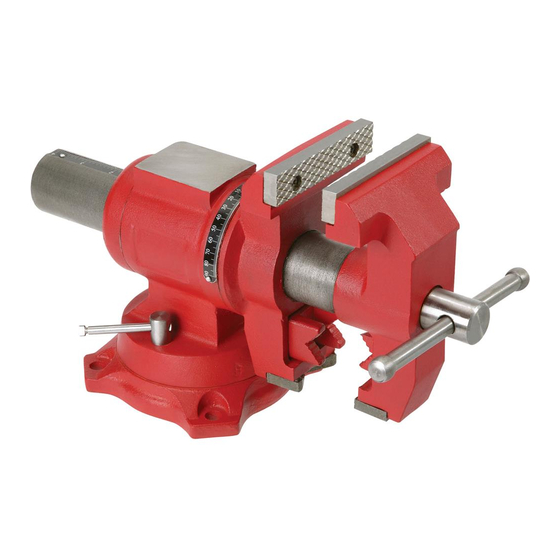

Figure 1. Model H8188 Multipurpose Vise.
This vise is not a toy. DO NOT use as a
crushing tool and never clamp a contain-
er with compressed or explosive contents.
Serious injury may occur if this vise is used
incorrectly.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
13
COPYRIGHT © NOVEMBER, 2007 BY GRIZZLY INDUSTRIAL, INC.
#JB10030 PRINTED IN CHINA
MODEL H8188
MULTIPURPOSE VISE
INSTRUCTION SHEET

Site Considerations

Placement Location
⁄ "
Consider the existing and anticipated needs, the
16
size of the material to be held in the vise, and the
⁄ "
7
space for auxiliary stands, work tables or other
8
machinery when establishing a location for your
new vise. See Figure 2 for the minimum working
clearances.
Figure 2. Minimum clearances.

Workbench Load

The H8188 Multipurpose Vise weighs 22 lbs.
Some workbenches may require additional rein-
forcement to support both the vise, the workpiece,
and any hammering or prying forces that may be
applied to each.
22"
14"
