Introduction
The Model G8748 provides excellent alignment,
control, and rigidity when tapping holes. As a
result, tapping will be much easier and you will
have fewer broken taps.
Inventory
A. Fixed Jaw ................................................... 1
B. Lever .......................................................... 1
C. Spindle ....................................................... 1
D. Handle Assembly ....................................... 1
E. L-Frame ...................................................... 1
F.
Movable Jaw .............................................. 1
G. Counterbalance .......................................... 1
H. Base ........................................................... 1
I. Adapter Rack .............................................. 1
—Adapter #6 .............................................. 1
—Adapter #8 .............................................. 1
—Adapter #10 ............................................ 1
—Adapter ⁄ " .............................................. 1
1
4
—Adapter ⁄ " ............................................. 1
5
16
—Adapter ⁄ " .............................................. 1
3
8
—Adapter ⁄ " ............................................. 1
7
16
—Adapter ⁄ " .............................................. 1
1
2
—Adapter ⁄ " .............................................. 1
5
8
J.
Hardware
—Knurled Knob .......................................... 1
—Cap Screws M10-1.5 x 35 ...................... 4
—Collar ...................................................... 1
—Phillips Head Screws M5-.8 x 40 ............ 2
—Thumbscrew ........................................... 1
—Dowel Pin 4 x 30mm .............................. 1
—Taper Pin ................................................ 1
Cleaning
Remove shipping grease from all coated parts
with a mild solvent or degreaser, then re-coat
them with a light layer of oil to prevent rust.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
COPYRIGHT © APRIL, 2007 BY GRIZZLY INDUSTRIAL, INC.
#TR9245 PRINTED IN CHINA
MODEL G8748
HAND TAPPING MACHINE
INSTRUCTIONS

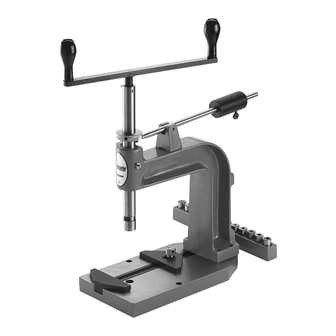

Figure 1. Model G8748 Hand Tapping Machine.
B
A
G
J
Figure 2. Model G8748 inventory.
Lubrication
After assembly, lubricate the grease fitting on the
side of the L-frame with multi-purpose grease,
then re-lubricate often to minimize wear and ease
operation.
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
D
E
C
F
H I
