Grizzly H0613 Instructions

To reduce the risk of injury when using this
tool:
• Make sure the incoming air pressure
does not exceed the maximum rating
of 250 PSI. Otherwise the fittings could
crack or explode.
• Protect your eyes by wearing safety
glasses or a face shield when assem-
bling and using this hose reel.
• Pressurized air may cause injury to
exposed body parts. Never expose any
part of your body to pressurized air.
• Make sure the hose reel is firmly mounted
to a stable surface before pressurizing.

Specifications

Max. Incoming Air Pressure ................... 300 PSI
Max. Hose Length on Reel ......................... 50 ft.
Air Fitting Size .........................................
Inventory
Use the list below and Figure 1 to inventory the
contents of the shipping box.
Description
A. Hose Reel Assembly (not shown) .............. 1
B. Swivel Valve ⁄ " NPT .................................. 1
1
4
C. Threaded Plug
1
D. Handle ........................................................ 1
E. Handle Shaft .............................................. 1
F.
Lock Nut ⁄ "-18 .......................................... 1
5
16
G. Flat Washer ⁄ " ......................................... 1
5
16
C
B
G F

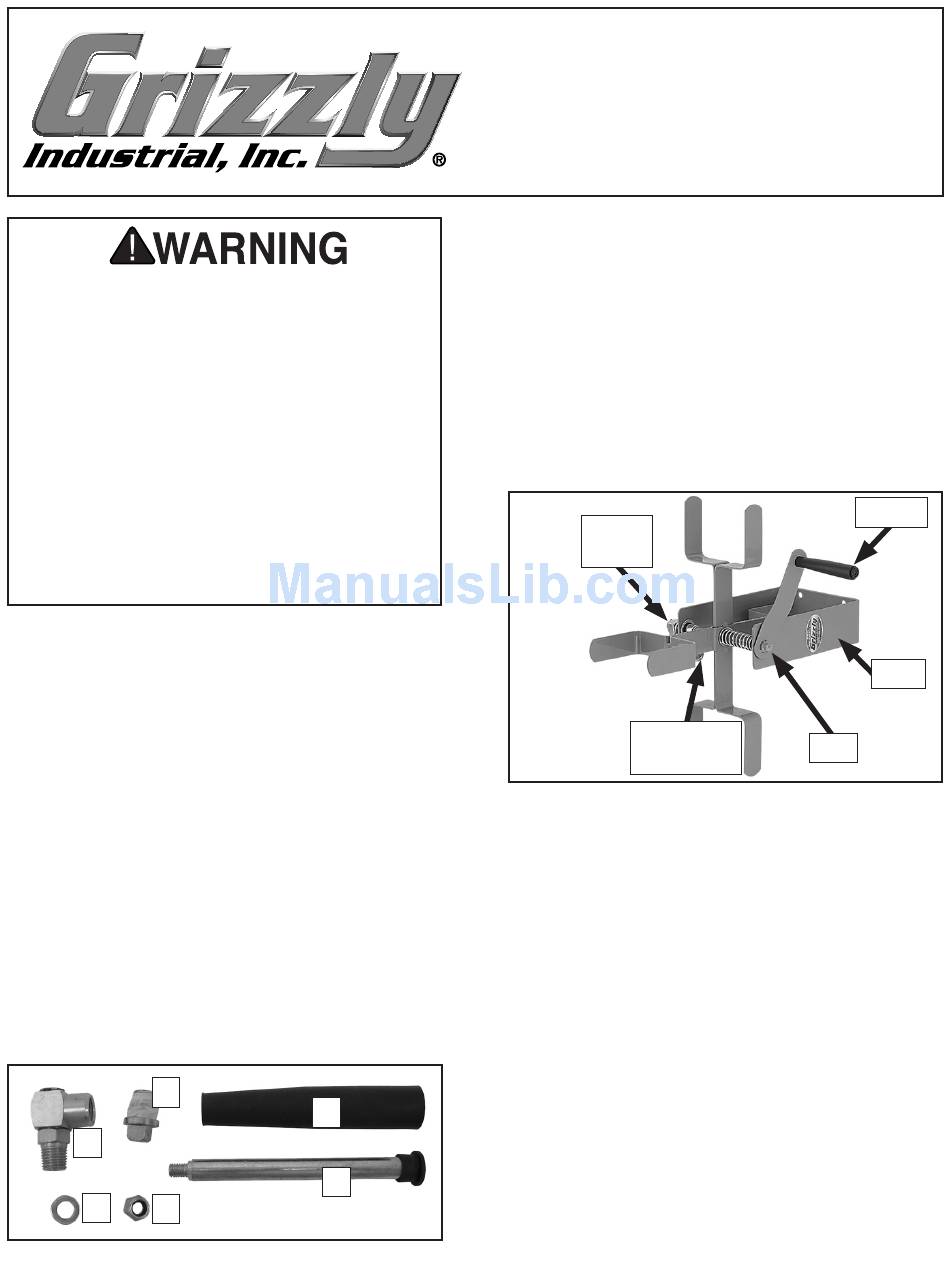

Figure 1. Model H0613 small item inventory.
1
⁄ " ....................................... 1
4
D
E
Mounting
Use 3/8" hardware through the four holes of the
hose reel base to firmly secure the assembly to a
convenient and stable location.
Assembly
1.
Insert the handle shaft through the handle,
then secure the assembly to the crank with
the lock nut and flat washer, as shown in
Figure 2.
⁄ " NPT
4
Figure 2. Model H0613 assembly components.
Note: Use Teflon pipe tape or thread seal-
ant on all threaded connections. Also, do not
Qty
overtighten the connections or you may dam-
age the threads, resulting in leaks.
2. Install the threaded plug into the hole in the
crank, as shown in Figure 2.
3.
Install the swivel valve on the other end of
the center axle, then connect the incoming air
supply to it.
4. Connect the reel hose to the elbow connec-
tion shown in Figure 2.
5. Turn the air pressure ON, then use soapy
water to test for leaks. If any are found, turn
the air pressure OFF and repair the leaks
before putting the hose reel into operation.
MODEL H0613
HAND CRANK
HOSE REEL
INSTRUCTIONS
Swivel
Valve
Reel Hose
Connection
Handle
Base
Plug
