Introduction

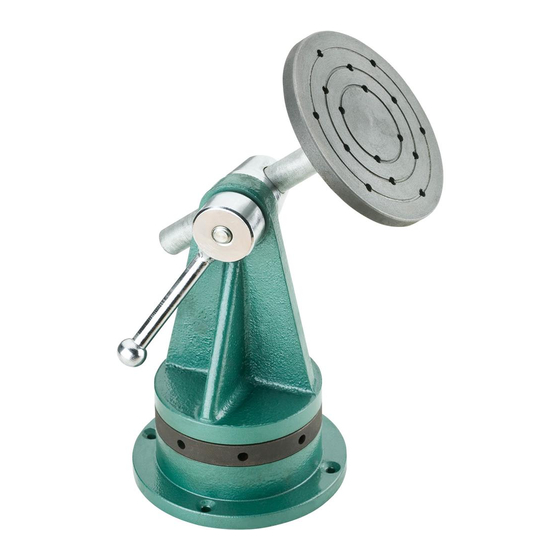

The Model T10812 Carving Vise mounts to a
workbench to securely hold a carving project
while providing highly adjustable positioning. This
product comes fully assembled and ready to use.

Specifications

Height ............................................................... 8"
Width ................................................................ 7"
Base ....................................................... 5
Weight .......................................................14 lbs.
Carving Faceplate ..................................... 5" dia.
Faceplate Mounting Holes ............................... 16
Range of Motion (Rotation) ..........................360°
Construction ......................... Cast Iron and Steel

Inventory

Your vise was carefully packaged for safe trans-
portation. Remove the packaging materials from
around your vise and inspect it. If you discover
any damage, please call us immediately at (570)
546-9663 for advice.
Save the containers and all packing materials for
possible inspection by the carrier or its agent.
Otherwise, filing a claim can be difficult.
When you are completely satisfied with the condi-
tion of your shipment, inventory the contents.
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
1
COPYRIGHT © DECEMBER, 2014 BY GRIZZLY INDUSTRIAL, INC.
NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
#BB16757 PRINTED IN CHINA
The following is a list of items shipped with your
vise. Before beginning setup, lay these items out
and inventory them.
If any non-proprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
⁄ " dia.
4
Description
A. Carving Vise ............................................... 1
B. Pin Wrench ................................................. 1
MODEL T10812
CARVING VISE
INSTRUCTIONS
A
Figure 1. T10812 carving vise.
B
Qty
