1.
INSTRUCTIONS FOR USE ......................................................................... 44
2.
SAFETY PRECAUTIONS ............................................................................ 46
3.
ENVIRONMENTAL RESPONSIBILITY ........................................................ 48
4.
GET TO KNOW YOUR OVEN...................................................................... 49
5.
AVAILABLE ACCESSORIES ....................................................................... 50
6.
FRONT PANEL ............................................................................................ 53
7.
USING THE OVEN ...................................................................................... 56
8.
COOKING WITH THE OVEN....................................................................... 59
9.
CLEANING AND MAINTENANCE ............................................................... 68
10. EXTRAORDINARY MAINTENANCE ........................................................... 75
11. INSTALLING THE APPLIANCE ................................................................... 79
INSTRUCTIONS FOR THE USER: these contain user advice, description of
the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended for
the qualified technician who must perform the installation, put it into
operation and test the appliance.
Contents
45

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Oven and is the answer not in the manual?

Questions and answers

Kathleen
April 1, 2025

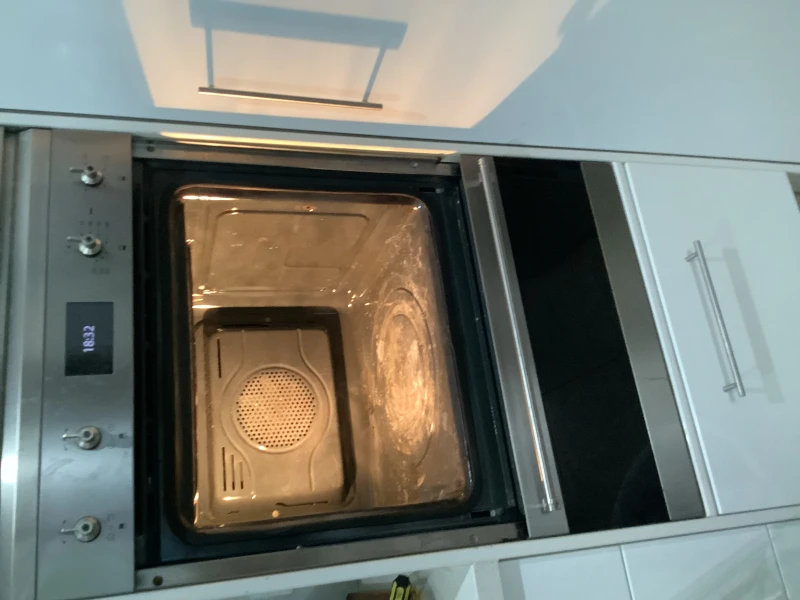

How do u turn oven light off when door is removed
