Summary of Contents for ProFire PERF30R
-
Page 1: Owners Manual

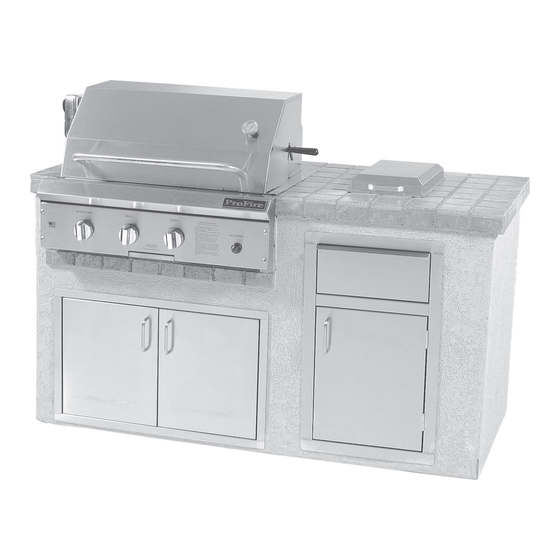

Owners Manual A S S E M B L Y A N D M A I N T E N A N C E I N S T R U C T I O N S PERF30R Shown Model #... -
Page 2: Introducion
If you have any questions or comments please feel free to contact us at ProFire. We thank you for buying the “Made in the USA” Professional ProFire Grill. ProFire Grills Tested in Accordance With:... -
Page 3: Table Of Contents
NATURAL GAS HOOK-UP........…....7 L.P. HOOK UP AND TANK REQUIREMENTS………………..8 LOCATION REQUIREMENTS...…..........9 LEAK TESTING................10 ADJUSTING FOR PROPER FLAME..……………..…..11 INSTALLATION CHECK-LIST..…......…..12 LIGHTING INSTRUCTIONS...…........…..13,14 ProFire USING YOUR GAS GRILL........15,16 REAR BROILER & ROTISSERIE..........16 CARE & MAINTENANCE.…..........17,18 TROUBLESHOOTING..…...........19 CUT OUT DIMENSIONS………………….………………………20 PARTS LIST & DIAGRAM...…..........20... -
Page 4: Safety Practices
SAFETY PRACTICES TO AVOID INJURYTO SELF OR PROPERTY When lighting a burner always pay close attention to what you are doing. Be certain that you are turning the igniter labeled for the burner you intend on using. When using the grill: do not touch the grill rack, burner grate, or immediate surrounding areas these areas become extremely hot and could cause burns. -
Page 5: Safety Practices
DO NOT USE CHARCOAL IN THE GRILL. Never place paper inside the grill. The ProFire gas grill is designed for use without lava rock. The use of lava rock or other forms of briquettes may cause a fire hazard. -
Page 6: Gas Requirements
Gas conversion kits are available from your dealer or ProFire. When ordering have avail- able the model number, and type of gas (L.P. or Natural) which you need the ProFire grill orifice for. To convert to LP gas the model # will be GCKLP followed by the model # of your grill. -
Page 7: Natural Gas Hook-Up
Be sure to check on type and size of run, and how deep to bury the line. If the line is too small the ProFire Gas Grill will not function properly. Please have a certified gas installer make sure that the size of the line is correct. Any joint sealant used must be an approved type and be resistant to actions of L.P. -
Page 8: Hook Up And Tank Requirements
ProFire LP Gas grills use a QCC1 gas connection fitting. This safety system is utilized to ensure your safety. Check with your LP gas utility or dealer for a tank that will accommodate a QCC1 fitting. -
Page 9: Location Requirements
CLEARANCE TO NON-COMBUSTIBLE CONSTRUCTION It is desirable to allow at least 6" side clearance to non-combustible construction above the cooking surface for counter space. ProFire gas grills can be placed directly adjacent to non-combustible construction below the cooking surface. LOCATION When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible. -
Page 10: Leak Testing
APPLIANCE FROM. Only those parts recommended by the manufacturer should be used on the Pro- Fire Gas Grill. Substitutions will void the warranty. Do not use the ProFire Gas Grill until all connections have been checked and do not leak. -
Page 11: Adjusting For Proper Flame
ADJUSTING FOR PROPER FLAME AND EFFICIENCY Each burner is tested and adjusted at the factory prior to shipment. However, variations in the local gas supply or conversion from one gas to another may make it necessary to adjust the burners. The flames of the grill burners should be visually checked. The rear broiler (when equipped) should have a very low flame (no more than 1/4") and glow with a light red color. -
Page 12: Installation Check-List
INSTALLATION CHECK LIST NOTE TO THE INSTALLER: BE SURE ALL ITEMS ON THIS LIST HAVE BEEN THOROUGHLY COMPLETED AND CHECKED BEFORE OPERATING THE GRILL. _____ Specified clearances maintained to combustibles. _____ All internal packaging removed. _____ Knobs turn freely. _____ Each burner lights satisfactorily, individually or with adjacent burner lit. _____ Air shutters adjusted. -
Page 13: Lighting Instructions
For L.P. gas, the pressure regulator must be the type specified by ProFire. Install the regulator into the tank and check the hose and regulator connections for leakage with a soap and water solution before operating your ProFire gas grill. Be sure there is gas in the tank. - Page 14 HOW TO LIGHT YOUR GAS GRILL Using a long stemmed match or lighter. LIGHTING THE SIDE BURNERS Remove the burner cover and any cooking utensils from the burner grate. Push and turn the burner control knob to the "LIGHT" position and immediately push the igniter button (marked side burner) for 4 seconds or until the burner is lit.
- Page 15 CHICKEN SHOULD BE COOKED ON THE MEDIUM OR LOW SETTING DUAL PURPOSE THERMOMETER All ProFire grills come equipped with a dual-purpose thermometer which may be left in place to read the air temperature inside of the closed lid or it can be removed and in- serted into the meat that you are grilling.
-
Page 16: Using Your Gas Grill
GAS GRILL FLAVOR GRID An exclusive feature of the ProFire Gas Grill is its Stainless Steel Flavor grid designed to deflect the grease from falling into the burners thereby preventing flare-ups and extending the life of the burners. The Stainless Steel Flavor grid evens out the heat and creates a hot surface for the meat drippings to fall on to. -
Page 17: Care & Maintenance
CARE AND MAINTENANCE STAINLESS STEEL ProFire gas grill is made from non-rusting, nonmagnetic, type 304 stainless steel. There are many different stainless steel cleaners available. Always use the mildest clean- ing methods first, scrubbing in the direction of the grain. To touch up noticeable scratches in the stainless steel, sand lightly with dry 100 grit emery paper or scotch bright pad in the direction of the grain. -
Page 18: Care & Maintenance
CARE AND MAINTENANCE CLEANING THE BURNERS After removing: 1. Clean the exterior of the burner with a wire brush. 2. Clear any clogged ports with a straightened paper clip. 3. Never use a wooden toothpick as it may break off and clog the port. 4. -
Page 19: Troubleshooting
TROUBLESHOOTING ProFire If your Gas Grill does not function properly, use the following checklist before contacting your dealer for service. You may save the cost of a service call. PROBLEM WHAT TO CHECK FOR AND DO Grill won't light when the With the gas turned off remove the grills and flavor grid, push igniter button is pushed. -
Page 20: Cut Out Dimensions
8 1/2" 19 5/8" 30" 2 1/2" Performance PERF42R and PERF42G 38 3/4" 21 1/2" 8 1/2" 19 3/4" 42 1/2" CUT-OUT DIMENSIONS PERF30R and PERF30G- 26-3/4" Width, 19-3/4" Depth, 8-5/8" Height PERF42R and PERF42G- 39" Width, 19-3/4" Depth, 8-5/8" Height... -
Page 21: Model Identification
NOTES: MODEL IDENTIFICATION Always use both model and serial numbers when contacting ProFire about your grill. For future reference, take the time now to record the model and serial numbers below: MODEL NUMBER:_________ SERIAL NUMBER:___________ DATE PURCHASED:_______... - Page 22 NOTES:...
-
Page 23: Warranty
There are no other express warrants except as set forth herein and any applicable im- plied warranties of merchantability and fitness are limited in duration to the period of cover- age of this express written Limited Warranty. ProFire is not liable for any special, indirect or consequential damages. - Page 24 PFR48HD 48” with Stainless Steel Motor 5565 North 124th Street • Butler, Wisconsin 53007 Ph: 262.781.4657 • 888.781.4657 Fax: 262.781.3965 •888.781.3965 Email: info@profiregrills.com • www.profiregrills.com ©2008 ProFire , LLC ProFire is a register trademark of ProFire, LLC #OMPERF Printed in U.S.A.
