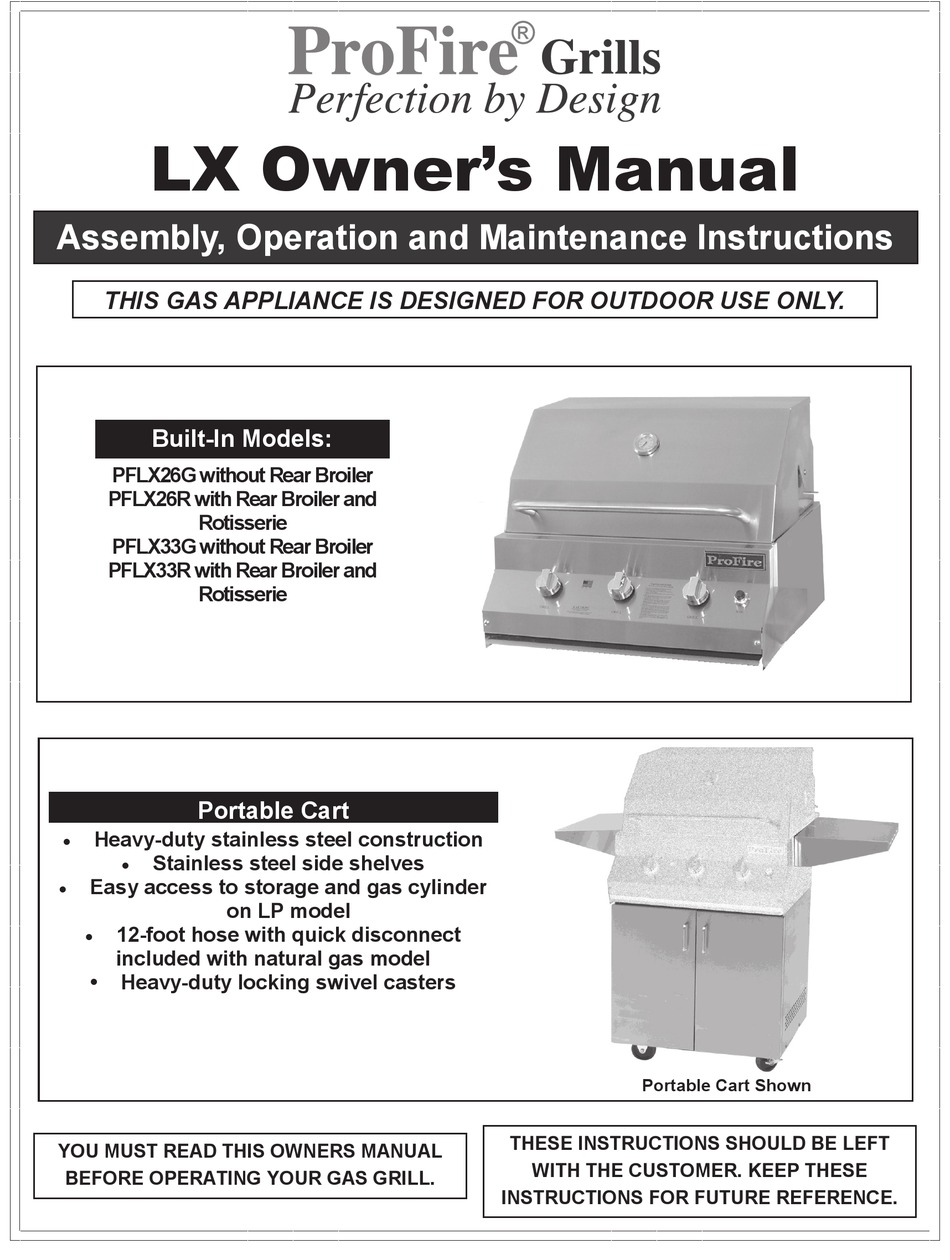

LX Owner's Manual
Assembly, Operation and Maintenance Instructions
THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY.
Built-In Models:
PFLX26G without Rear Broiler
PFLX26R with Rear Broiler and
Rotisserie
PFLX33G without Rear Broiler
PFLX33R with Rear Broiler and
Rotisserie
Portable Cart
Heavy-duty stainless steel construction
Stainless steel side shelves
Easy access to storage and gas cylinder
on LP model
12-foot hose with quick disconnect
included with natural gas model
•
Heavy-duty locking swivel casters
YOU MUST READ THIS OWNERS MANUAL
BEFORE OPERATING YOUR GAS GRILL.
Portable Cart Shown
THESE INSTRUCTIONS SHOULD BE LEFT
WITH THE CUSTOMER. KEEP THESE
INSTRUCTIONS FOR FUTURE REFERENCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ProFire PFLX26G
Summary of Contents for ProFire PFLX26G
- Page 1 LX Owner’s Manual Assembly, Operation and Maintenance Instructions THIS GAS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY. Built-In Models: PFLX26G without Rear Broiler PFLX26R with Rear Broiler and Rotisserie PFLX33G without Rear Broiler PFLX33R with Rear Broiler and Rotisserie Portable Cart Heavy-duty stainless steel construction ...
-
Page 2: Important Safeguards
Code, CSA C22.1. Keep any electrical supply cord, or the rotisserie motor cord and the fuel supply hose away from any heated surfaces. -Children should never use your ProFire Grill. Accessible parts of the grill may be very hot. Keep young children away while it is in use. -
Page 3: Safety Instructions
-Never place paper inside the grill. -The ProFire gas grill is designed for use without lava rock. The use of lava rock or other forms of briquettes may cause a fire hazard. -Never obstruct the flow of combustion and ventilation air to the grill. -
Page 4: Gas Safety Requirements
• Check with your local gas utility company or with local codes for instructions on installing supply lines. Be sure to check on type and size of run, and how deep to bury the line. If the line is too small the ProFire gas grill will not function properly. Any joint sealant used must be an approved type and be resistant to actions of LP and Natural gases. - Page 5 NOTE: Hose and Regulator is preassembled to the grill valve at the factory. • Only 20 lb. cylinders equipped with an OPD (Overfill Protection Device) should be used with your ProFire Grill. Only one propane cylinder may be located in an enclosure or cart. Extra spare cylinders must be stored outdoors out of the reach of children and outside of any building, garage or other enclosed area.
- Page 6 Your ProFire grill is protected by a warranty that is one of the finest in the industry. Take a moment to read the warranty statement on the back page and refer to it should service become necessary.
- Page 7 BUILT-IN SPECIFICATIONS Built-In Grill Unit NOTE: Enclosure Must Be Constructed Of Non-Combustible Materials. Consult the table below for enclosure cut-out dimensions. NOTE: Area directly beneath the grill must be open. No solid surface. CAUTION: An enclosure for LP Gas Cylinder must be vented on the level of the cylinder valve and at floor level. The effectiveness of the opening(s) for purposes of ventilation must be determined with the LP Gas Cylinder in place.
- Page 8 ASSEMBLY INSTRUCTIONS The ProFire Grill is produced fully assembled and tested in the factory and requires no major assembly in the field. For the purpose of safe shipping and transit, some parts such as the Flavor Plates, Cooking Grids and Rotisserie components are wrapped inside the grill and require minor assembly.
- Page 9 CONTROL PANEL hose assembly for the LP unit must be the type specified by ProFire. Do not use the grill if the odor of gas is present. The pressure regulator and hose assembly supplied with the unit must be used.
- Page 10 Do not cut or remove the grounding prong from this plug. For grilling/searing steaks, chops, burgers, sausages, fish filets, chicken parts or shish kabobs. Your ProFire Gas Grill is designed to The spit rod for the rotisserie fits into the motor assembly by placing cook with the lid closed.
-
Page 11: Cooking Times
COOKING TIMES A Quick Reference BEEF Hamburgers Thick 3-5 Minutes Per Side MEDIUM Steaks Thick 4-10 Minutes Per Side* MEDIUM Tenderloin 3” Diameter 30-40 Minutes Med-Low Turning Occasionally PORK Chops 3/4-1” Thick 8-10 Minutes Per Side* MEDIUM Tenderloin (whole) 2” Diameter 20-25 Minutes* Medium-Low Turning Occasionally Ribs... -
Page 12: Care And Maintenance
CARE AND MAINTENANCE Stainless Steel Exterior General Maintenance Grill Burner Inspection: Inspect the grill burners for spiders and Never clean the stainless steel exterior when it is hot. After the initial grilling, certain areas of the grill may discolor. This is a insects once a year or if the grill has not been used for more than a normal discoloration caused by the intense heat given off by the month. - Page 13 Can I Get That Charcoal Flavor? The fact is that charcoal does not flavor your outdoor meal, but is only a heat source. The ProFire Gas Grill utilizes a special metal flavor plate above the burners that heats up fast and spreads the heat evenly. The delightful backyard taste that comes with barbecue cooking is caused by meat drippings falling on the heat source where they are vaporized to rise and add outdoor flavor to the food.
-
Page 14: Troubleshooting
See low flame above. On natural gas, inadequate pressure at Check pressure. Should be at or near 7" grill. water column. Incorrect orifice. Check orifice size. CAUTION: If problems can not be corrected using these methods, contact your local ProFire dealer for assistance. -
Page 15: Parts Information
PARTS INFORMATION MODELS Part No. PHLX26G PFLX26R PFLX33G PFLX33R Description GGTG4 Round temperature gauge KKK10 Knobs LX-106 Gas collector box LX-125 Cooking Grids LK-29 Flavor Plates LX-39 Drip Pan LX-68 Manifold PERF-137 Burner Orifice PF80-10LX Burners PF80-3828S Electrode W/28” Ignitor Wire PERF137-101 Bushing for Rotisserie PERF13710H... -
Page 16: Warranty
WARRANTY ProFire, LLC hereby warrants to the Original Purchaser of the ProFire Gas Grill that it will be free of defects in material and workmanship from the date of purchase as follows: 10-YEAR (against rust-through) Stainless Steel Bodies, Smoker Tops, Lids, Carts, Cooking Grids, Stainless Steel Burners...
