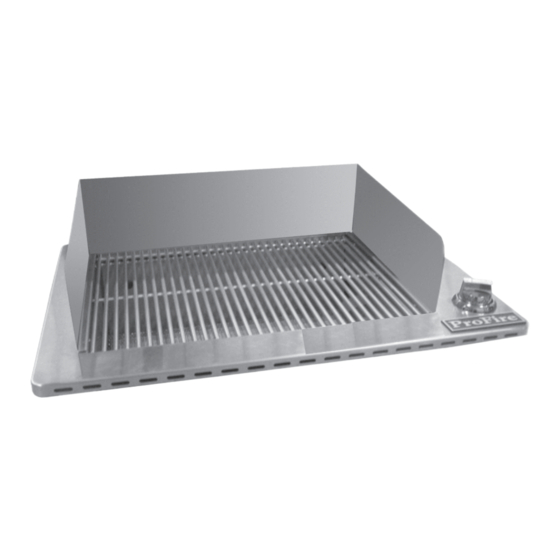

Owner's Manual & Installation Instructions
For questions about features, operation/performance, parts or service, call 888.781.4657 or
Before using your appliance, be sure to read and save these instructions.
Pay special attention to the Important Safety Instructions located at the beginning of the manual.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Visit our website at www.profiregrills.com
Write the model and serial number here:
MODEL #_________________________
SERIAL #_________________________
Find these numbers on the grill body.
www.profiregrills.com
Patent Pending
PF0215
Advertisement
Table of Contents
Related Manuals for ProFire ProSear
Summary of Contents for ProFire ProSear

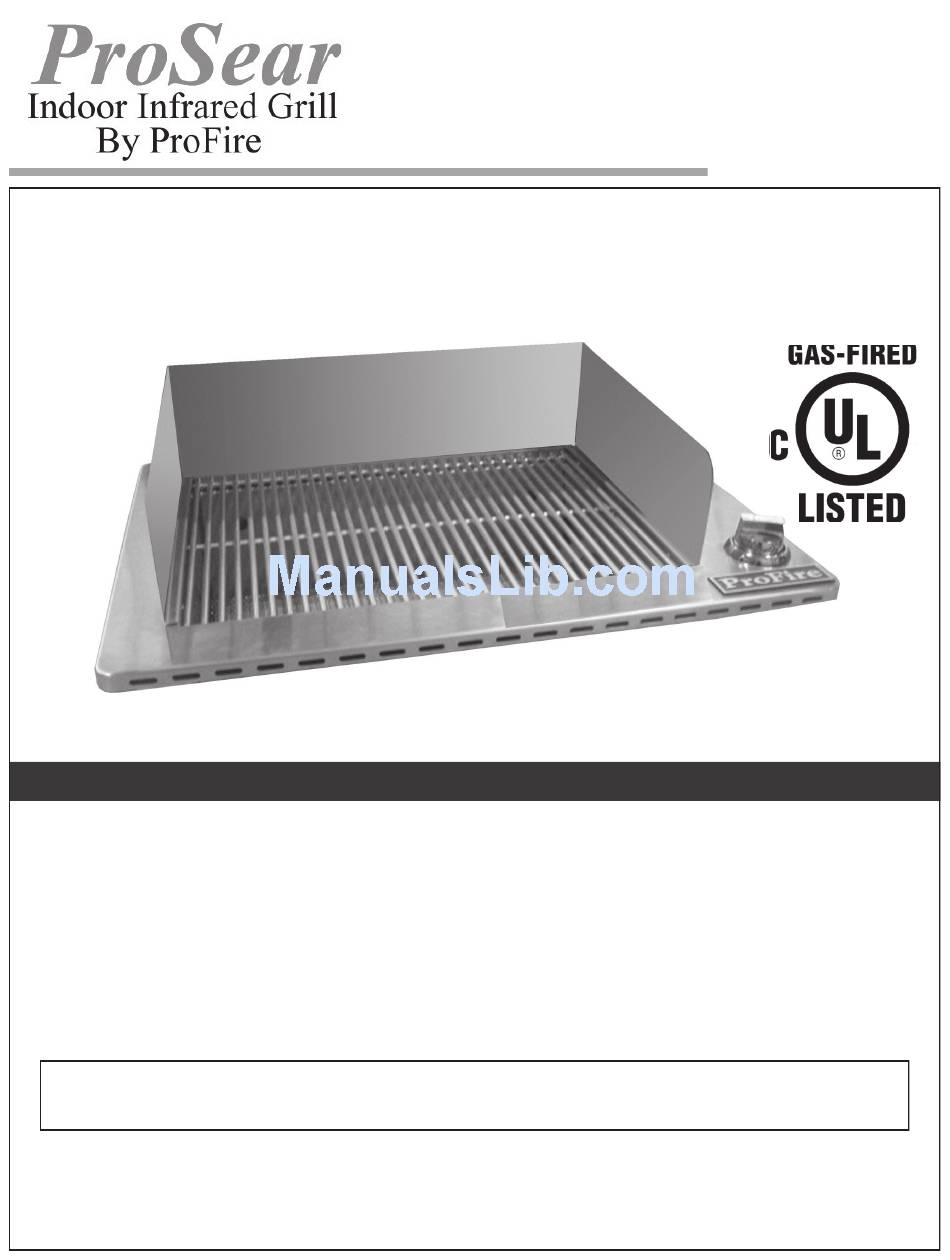

- Page 1 www.profiregrills.com Owner’s Manual & Installation Instructions For questions about features, operation/performance, parts or service, call 888.781.4657 or Visit our website at www.profiregrills.com Patent Pending Write the model and serial number here: MODEL #_________________________ SERIAL #_________________________ Find these numbers on the grill body. Before using your appliance, be sure to read and save these instructions.
-
Page 2: Table Of Contents
Checking for Leaks..............8 Trouble Shooting..............18 Ventilation................9 Warranty................19 Maintenance................10 Lighting..................11 Accessories and Cooking Tips..........12 Gas Conversion...............13, 14 This ProSear Infrared Grill is made by ProFire Grills 5565 12th Street Butler, WI 53007 Questions? 888.781.4657 www.profiregrills.com We look forward to hearing from you! -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Safety WARNING Important Safety Instructions To reduce the risk of fire, electrical shock, injury to persons, or WARNING damage when using the grill, follow basic precautions, includ- ing the following: When property cared for, your new appliance has been designed to be ... - Page 4 IMPORTANT SAFETY INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS Burn Prevention Use this appliance only for its intended use as described in manual. For example, never use the appliance for DO NOT TOUCH SURFACE UNITS OR AREAS heating the room. Never use the appliance for storage. NEAR UNITS—Surface units may be hot even though ...
-
Page 5: Safe Guards
Female Label Socket Electrical and Gas Connection Location 3/8 NPT 120 Volt, 60H, 12 Amp Typical 36" Pipe The ProSear grill comes with a 48” Minimum 20" 120V electric cord. Recommended 15" Socket Recommended 16" Recommended Shut OFF Valve Location-X... -
Page 6: Cabinet Preparation
Min. 1" Shut Off Valve Gas Pressure The ProSear grill comes with 3/8” NPT For proper operation of this unit the MAXIMUM threaded pipe. A manual valve must be gas inlet pressure for Nat. and LP gas is 13”WC. installed in an accessible location in the... -
Page 7: Installation Of Grill
Installation Of Your Indoor Grill Your ProSear Indoor Grill is fully insulated and can be installed into standard wood cabinetry with zero clearance to combustibles. The grill was designed to fit into a standard 30” base cabinet. A cut out of 29" x 20" is required in the counter top. -
Page 8: Checking For Leaks
ProSear Installation Instructions Checking For Leaks After installing the grill or after any service or repair you must check all gas connec- tions for leaks. Spray or brush a solution of 50% water and 50% liquid soap on to all gas connections and the valve. -
Page 9: Ventilation
A minimum 600CFM Internal Blower or 900 CFM External blower ventilation hood is required over your ProSear Indoor Infrared Grill. The maximum height above the cook- ing surface is 30” to the bottom of the hood. The hood must overlap the cooking surface a minimum of 3”... -
Page 10: Maintenance
Your ProSear Indoor Infrared Grill requires occasional cleaning. Use only non abrasive cleaners or de- greasers designed for use on Stainless Steel when cleaning your ProSear Grill. Always apply a Stainless Shine product such as Sheila Shine to all external Parts of your grill after cleaning. This will keep the finish of your grill like new for many years. -
Page 11: Lighting
Relight & Safety Shut Off: The ProSear Indoor Infrared Grill also includes a relight feature that will begin trying to light the grill again if the flame were to be extinguished while in the “ON” position. If the grill fails to light, the unit will retry 2 more times and after the 3rd time if it fails, the unit will auto- matically shut “OFF”. -
Page 12: Accessories And Cooking Tips
4. Always use long handled grill tools for grilling. A grilling mitt may be useful for handling hot items. 5. The use of a fork is not recommended for grilling on your new ProFire grill. A fork may mar the surface of the cooking grids. Piercing foods while cooking will allow the juices to escape, causing the finished product to be drier than may be desired. -
Page 13: Gas Conversion
Gas Conversion Your ProSear Grill was designed for LP or Natural gas. You must be sure that the type of gas used is the same as what the grill was set up for. Check the label located on the front of grill to determine if your grill was set up from the factory for use with LP or Nat gas. -
Page 14: Flame Adjustment
ProSear Installation Instructions Gas Conversion and Low Flame Adjustment Conversion to LP or Natural Gas operation should be performed by a qualified technician or installer. TURN OFF GAS AND ELECTRIC SUPPLY. Before you begin, turn off the gas supply at the shut-off valve. -
Page 15: Wiring Diagram
Service & Wiring Diagram The ProSear Indoor Infrared Grill was designed with a removable control panel that houses all the electronics & gas compo- nents. See Figure K, page 13. This exclusive feature allows for the easy repair or replacement of all electrical and gas compo- nents of your grill. -
Page 16: Parts List
Indoor Grill Body PF30-GD INDOOR GRILL GREASE DEFLECTOR PF30-GT Indoor Grill Top PF30-HGS Indoor Grill Heat and Grease Shield PF30- Indoor Grill Orifice Spacing Washer ORIFICEWASH Replacement parts are available from your local ProFire dealer or ProFire Grills 888-781-4657 www.profiregrills.com... -
Page 17: Parts List Drawing
ProSear Parts List Drawing Heat and Grease Shield... -
Page 18: Troubleshooting
This must be replaced or repaired. with the same precision used to build new ProFire applianc- Burner Will Not Operate • Gas supply not connected or turned on. -
Page 19: Warranty
Subject to the conditions, limitations, exclusions, disclaimers and remedies provided herein, ProFire LLC, (“Manufacturer”) warrants that its ProFire® Indoor Gas Grill (“Product”) is of good quality and workmanship in manufacture, conforms to the Manufacturer’s applicable specifica- tions, drawings and descriptions, and will be free from defects in materials and workmanship in manufacture for a period of one (1) year from the date the original consumer purchaser (“Purchaser”) initially purchased the Product. -
Page 20: Profire Grills
Grills Replacement Parts Charcoal Grill Patent Pending Because of constant product improvement, ProFire Grills reserves the right to change specification without notice. ©2015 ProFire MHP configuration, ProFire Grills, Phoenix are registered trademarks of Modern Home Products Corp Printed in U.S.A.
