CONTRACTOR DIESEL
Instruktionsbog ........................
Instruksjonsbok ........................ 13 - 24
Instruktionsbok......................... 25 - 36
Instruction manual ................... 37 - 48
Betriebsanleitung ..................... 49 - 60
Manual d'Instructions ............... 61 - 72
Gebruikershandleiding ............. 73 - 84
1 - 12
Advertisement
Table of Contents
Related Manuals for Nilfisk-ALTO CONTRACTOR DIESEL
Summary of Contents for Nilfisk-ALTO CONTRACTOR DIESEL

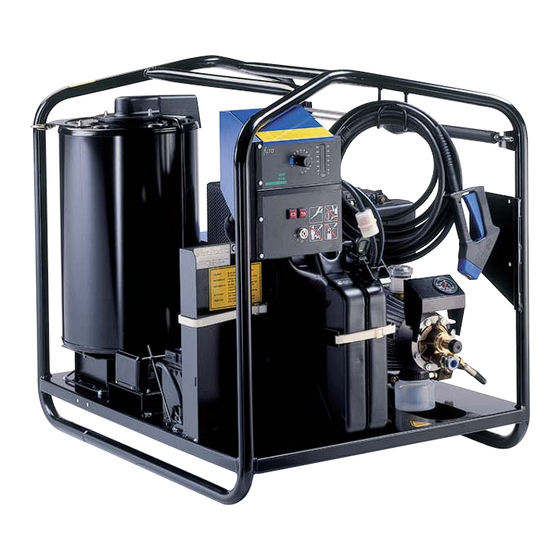

- Page 1 CONTRACTOR DIESEL Instruktionsbog ......1 - 12 Instruksjonsbok ......13 - 24 Instruktionsbok......25 - 36 Instruction manual ....37 - 48 Betriebsanleitung ..... 49 - 60 Manual d’Instructions ....61 - 72 Gebruikershandleiding ..... 73 - 84...
-
Page 2: Table Of Contents
Contents We’d like to say, “Thank You” for choosing the 1.0 Safety ............38 CONTRACTOR DIESEL. This instruction ma nu al 1.1 Warning Refi lling with diesel .... 38 is provided with your new High Pressure Washer 1.2 Asbestos ........... 38 to ensure that you obtain the best results, in the 2.0 Motor Protection Device ....... -
Page 3: Safety
1.0 Safety Your CONTRACTOR DIESEL washer has been 11. The machine must not be used in sur- developed and manufactured in accordance with roundings with risk of fi re or explosion. the latest working safety regulations. 12. Exhaust from engine and burner contains Caution! However, to prevent possible per so nal poisonous carbon monoxide gases. -
Page 4: Motor Protection Device
3.0 Key photo’s Motor Protection De vice (See drawing on the cover) The diesel engine is equipped with a protection device called ”Oil Alert”, which stops the engine 1. Water inlet and fi lter if the oil level is insuffi cient. If this occurs, check (quick-coupler for supply hose) the engine for leaks, and after making sure the 2. -
Page 5: Application
4.0 Application 6.0 Accessories Nilfi sk-ALTO’s diesel powered high pressure In order that you may make the most of your high washers can be used for all outdoor cleaning pressure washer, Nilfi sk-ALTO has produced a jobs for which steam, hot or cold water is used. very comprehensive accessory program, inclu- Detergents can be used (see section 8.5) ding a pneumatic tire kit especially for the CON-... -
Page 6: Functional Description
7.0 Functional description a Inlet quick-connector The water passes from the inlet connector (a) b Water fi lter through a water fi lter (b) and into the high pres- c High pressure pump su re pump (c). The high pressure water is pas- d Unloader/regulator (recycling valve) sed through the regulating unloader (recycling e Flow switch... -
Page 7: High Pressure Pump
Functional description 7.1 High pressure pump 7.4 Spray lance An unloader (recycling valve) and a safety valve The double spray lance is fi tted with 2 nozzles, a are located on the pres su re side of the high pres- high pressure nozzle and a low pressure nozzle. -
Page 8: Connections
8.0 Connections 8.1 High pressure Hose 8.4 Suction Mode Connect the high pressure, steam-capable hose The machine is self priming, when used from a (pos. 24), to the outlet quick-coupling (pos. 10) tank or stream, etc. The inlet hose must be fi lled on the machine front. -
Page 9: Operating Instructions
9.0 Operating instructions 9.1 Start-up procedure d) Start the machine, if stopped, and activate the spray handle to start the burner. 1. Check that the pump oil level is between the IMPORTANT: For safety reasons it is important MIN. and MAX. marks (pos. 2). Oil type: Nilfi sk- that instruction (a), above, always be followed! ALTO Pump Oil 100. -
Page 10: Storage/Frost Proofi Ng
10.0 11.0 Model tag Storage/frost proofi ng It is advisable to store the machine in a frost This machine has the model name, ”CONTRAC- proof place between operations. If this is not TOR DIESEL”. The model de sig na ti on is printed possible the machine should be protected in the on a decal positioned on the control panel and following way:... -
Page 11: Maintenance
12.0 Maintenance 2. ENGINE OIL CHANGE 12.1 Water inlet fi lter Refer to the Ruggerini engine manual for break- The inlet water connection (pos. 1) contains in and normal operating oil change requirements. a fi lter to prevent impurities entering the high- Carry out fi... -
Page 12: Instruction Manual
13.0 Warranty Maintenance 5. Leave the machine for 20 minutes. Nilfi sk-ALTO warrants against defects in the sup- 6. Start the machine and pump the used so lu ti on plied product for a period of 12 months from the into a container for proper disposal. -
Page 13: Troubleshooting
Should faults occur other than those mentioned above, please contact the nearest Nilfi sk-ALTO service organization *) IMPORTANT NOTE: To avoid damage to the electronic systems, the battery connecting cables must be removed when recharging the battery. 15.0 Technical data Model CONTRACTOR DIESEL Pump pressure, max. bar/psi 180/2610 Water volume at min/max pressure l/min-USgpm 20,5/19 - 5.42/5... - Page 16 FINLAND POLAND Nilfi sk-Advance Oy Ab Nilfi sk-Advance Sp. Z.O.O. Piispantilankuja 4 05-800 Pruszków 02240 Espoo ul. 3-go MAJA 8 Tel.: +358 207 890 600 Tel.: +48 22 738 37 50 Fax: +358 207 890 601 Fax: +48 22 738 37 51 E-mail: asiakaspalvelu.fi...
