Summary of Contents for Nilfisk-ALTO NEPTUNE 5 FA 107400337 C
-

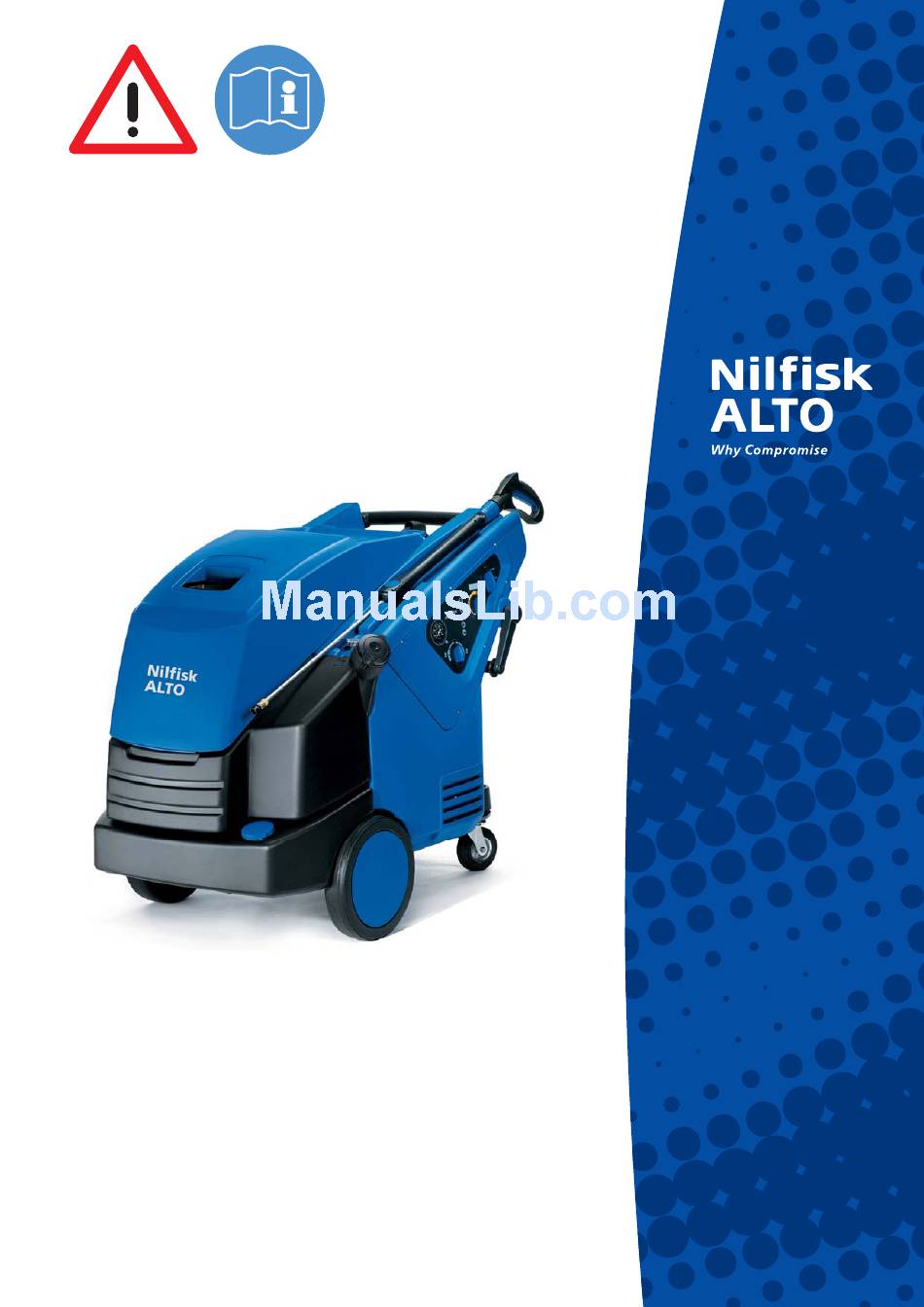

Page 1: Operating Instructions
NEPTUNE 5 FA Operating Instructions 107400337 C... - Page 2 NEPTUNE 5 FA...
-
Page 3: Table Of Contents
Set the brake ...5 Install Crank handle for high pressure hose reel/cord reel ...6 Fill up detergent tanks ...6 Fill up tank for Nilfisk-ALTO AntiStone (Anti-Scale) ...6 Antiscale ...6 Fill up fuel tank ...7 Connecting the high pressure hose ...7 Connecting the water supply ...8... -
Page 4: Important Safety Instructions
NEPTUNE 5 FA Symbols used to mark instructions Before using the h i g h - p r e s s u r e cleaner, be sure to also read the en- closed operating in- structions and keep them within reach at all times. 1 Important safety instructions For your own safety The appliance must... - Page 5 The length of the hose between the backflow preventer and the high pressure washer must be at least 12 metres (min diam- eter 3/4 inch) to absorb possi- ble pressure peaks. Operation...
-
Page 6: Purpose
NEPTUNE 5 FA Do not touch, cover or place hose or cord over the chimney. Danger for persons, risk of overheating and fi re. Electrical equipment CAUTION! Never spray electrical equip- ment with water: risk of elect- trical shock and short-circuit. The cleaner may only be con- nected to a correctly installed plug socket. -
Page 7: Operating Elements
Operating elements 3 Before starting the cleaner Transport and assembly 1. The safest way to lift the ma- chine is to use a fork-lift truck The arrows in the illustration indicate the best places to po- sition the fork. 2. It is also possible to lift the ma- Set the brake Options / model variants Original instructions... -
Page 8: Install Crank Handle For High Pressure Hose Reel/Cord Reel
For compatibility reasons, use only the tested Nilfisk-ALTO AntiStone (Anti-Scale) which is available as a six-pack of 1 liter bottles by ordering part number 8466. -
Page 9: Fill Up Fuel Tank
Fill up fuel tank The fuel must be free from con- tamination. Tank capacity see chapter 9.4 Technical data. Connecting the high pressure hose 3.8.1 Machines with high pressure hose reel 3.8.2 Machines without high pressure hose reel Options / model variants Original instructions NOTE! At temperatures below 8°C... -
Page 10: Connecting The Water Supply
NEPTUNE 5 FA Connecting the water supply NOTE! See chapter 9.4 Technical Data for required quantity of water and water pressure. In the case of poor water quality (sand, etc.), it is recommended that an inlet water fi lter be in- stalled. -
Page 11: Switching On The Cleaner
Switching on the cleaner 4.2.1 Cold water operation / Hot water operation (up to 100°C) NOTE! The cleaner switches off automatically twenty seconds after the spray gun has been closed. To start the cleaner again, squeeze the trigger and the machine will start automatically. -
Page 12: Using Cleaning Agents
NEPTUNE 5 FA Using cleaning agents The percentage shown in the illustration are only approximate data. For special applications such as disinfection, the exact detergent concentration has to be deter- mined by using a graduated measuring container. For water outlet volume of the machine see chapter 9.4 technical data. -
Page 13: Applications And Methods
Accessories and detergents, when correctly chosen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning. Encrusted or thick layers of dirt can be loosened or softened up by a period of soaking. -
Page 14: Some Typical Cleaning Tasks
3. Clean fragile areas such as motors, rubber at lower pressure levels to avoid damage. 4. Apply a liquid wax using the pressure washer in order to protect the bodywork from pollution. Options / model variants... - Page 15 These are merely several examples of cleaning tasks that can be solved by a pressure washer in asso- ciation with accessories and detergents. Each cleaning task is different. Please consult your local dealer or Nilfi sk-ALTO representative in order to discuss the best solution for your own cleaning tasks.
-
Page 16: After Using The Cleaner
NEPTUNE 5 FA 6 After using the cleaner Switching off the cleaner Disconnecting supply lines Rolling up the electrical cord and storing accessories Storing the cleaner (below 0°C (32°F)) 1. Turn the main switch to posi- tion „OFF“. 2. Tur n off water supply at faucet. -
Page 17: Maintenance Schedule
7 Maintenance Maintenance Schedule 7.2.1 Water fi lters 7.2.2 Oil fi lter 7.2.3 Checking the pump oil quality 7.2.4 Changing the pump oil 7.2.5 Emptying the fuel oil tank 7.2.6 Flame Sensor Maintenance work 7.2.1 Water fi lters 7.2.2 Maintenance of fuel fi... - Page 18 NEPTUNE 5 FA 7.2.3 Checking the pump oil quality 7.2.4 Changing the pump oil 7.2.5 Emptying the fuel oil tank 7.2.6 Flame sensor 1. Check color of pump oil. If the oil has a grey or white shade, change the oil (see chapter 7.2.4) 2.
-
Page 19: Troubleshooting
8 Troubleshooting Indications on Display Indication on Display > Flow sensor fault > Water supply turned off or inadequate supply to machine > Detergent tank empty > Pressure regulation on the safety control block set to low water volume > Machine scaled Fuel shortage >... -
Page 20: Indication Lights On Control Panel
NEPTUNE 5 FA Indication lights on control panel Indication light fl ashing fl ashing Other Faults Fault not ON Pressure too low Machine is running with pulsating pressure and makes knocking noise No detergents drawn in Burner soots Cause see FLO >... -
Page 21: Further Information
The use of parts other than Nilfisk-ALTO Cleaning Sys- tems, Inc. original spare parts and/or accessories. The burner coil on all Nilfisk-ALTO Cleaning Systems, Inc. hot water/ steam cleaners is under warranty for five (5) years against defects, and the high pressure hose is cov-... -
Page 22: Eu Declaration Of Conformity
NEPTUNE 5 FA EU Declaration of Conformity EU Declaration of Conformity Product: High Pressure Cleaner Type: NEPTUNE 5 Description: 400 V 3~ 50 Hz IPX5 400/230 V 3~ 50Hz IPX5 230-240 V 1~ 50Hz IPX5 The design of the unit corresponds to the EC Machine Directive following pertinent regulations: EC Low-voltage Directive... -
Page 23: Technical Data
NEPTUNE 5 FA Technical Data Voltage 200 V / 3~ / 50Hz Voltage 200 V / 3~ / 60Hz Voltage 230 V / 1~/ 60Hz Voltage 400 V / 3~ / 50Hz Voltage 400/230 V / 3~ / 50Hz Voltage 220/440 V / 3~ / 60Hz Fuse Power rating Power consumption... - Page 24 http://www.nilfi sk-alto.com HEAD QUARTER DENMARK Nilfi sk-Advance Group Sognevej 25 DK-2605 Brøndby Tel.: (+45) 4323 8100 Fax: (+45) 4343 7700 E-mail: mail.com@nilfi sk-advance.com SALES COMPANIES ARGENTINA Nilfi sk-Advance srl. Edifi cio Central Park Herrera 1855, Offi ce 604 Ciudad Autónoma de Buenos Aires Tel.: (+54) 11 6091 1571 Fax:(+54) 11 6091 1575 AUSTRALIA...
