Nilfisk-ALTO C 120.2 Instruction Manual

Hide thumbs Also See for C 120.2:

Advertisement

Table of Contents

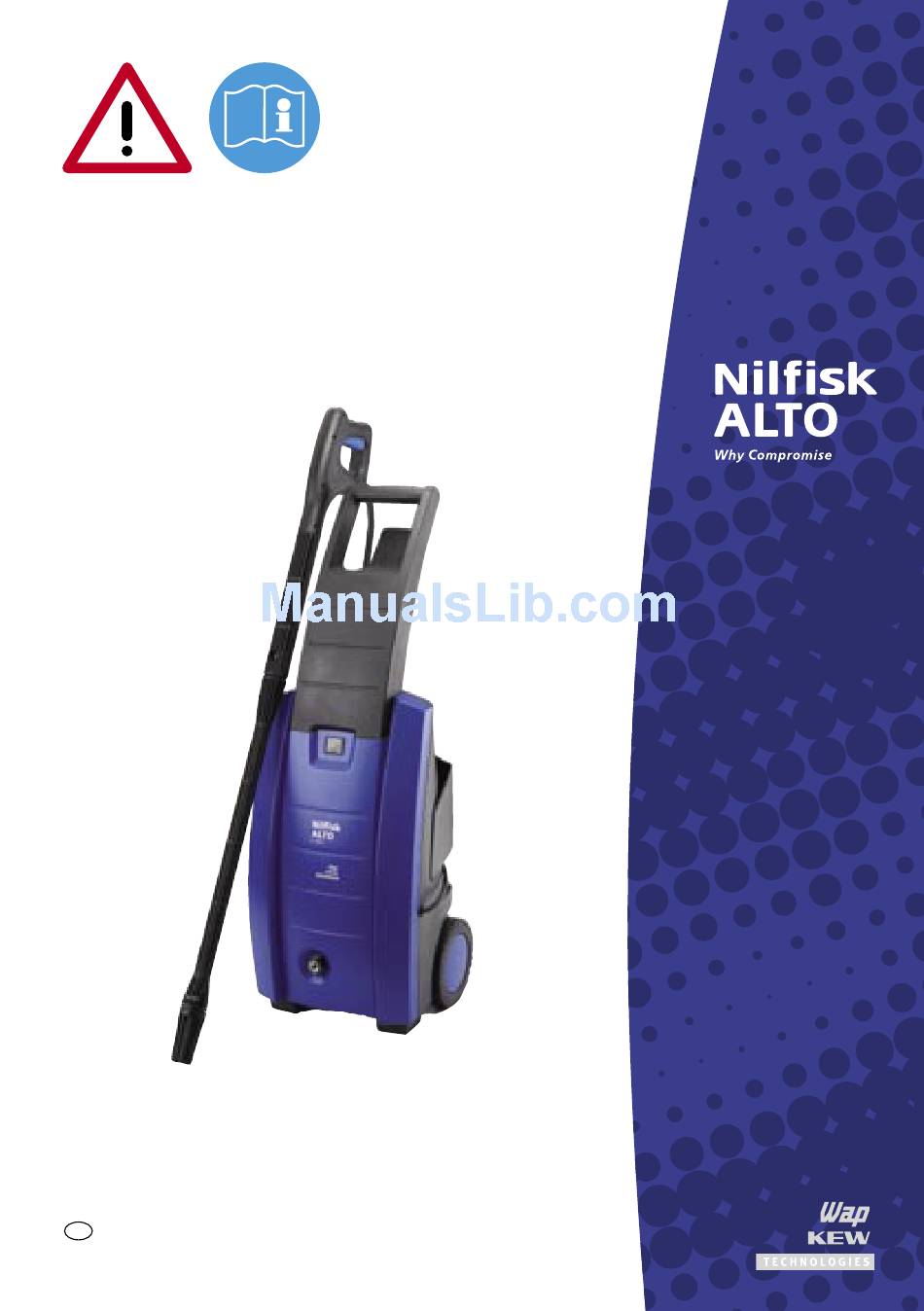

24-01-2006
Nilfisk-ALTO C 120.2
Instruction manual..........................................
3 - 16
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 120.2 and is the answer not in the manual?

Questions and answers

John Pedersen
July 20, 2025

What is the PSI for the C120.2

0

Related Manuals for Nilfisk-ALTO C 120.2

Summary of Contents for Nilfisk-ALTO C 120.2

  • Page 1 24-01-2006 Nilfisk-ALTO C 120.2 Instruction manual.......... 3 - 16...

  • Page 3: Table Of Contents

    Index 1 Safety precautions and warnings ..........3 2 Description ................4 3 Before you start using your pressure washer ......5 4 Operating your pressure washer ..........6 5 Fields of Application and Working Methods ......8 6 After using your pressure washer ...........10 7 Maintenance ................11 8 Trouble Shooting ..............13 9 Further information ..............14...

  • Page 4: Description

    To ensure the appliance If an extension cable is used, Water connection safety only use original spare the plug and the socket must be Connection to the public parts from the manufacturer waterproof and comply with the mains according to regula- or approved by the manufac- below-mentioned requirements tions.

  • Page 5: Before You Start Using Your Pressure Washer

    2.2 Operation elements See foldout at the end of this nozzle and model survey manual. 10 Click & Clean foam sprayer 11 Nozzle cleaning tool 1 Start/stop switch 12 Trolley handle 2 Water inlet with fi lter (2a) 13 Hose hook 3 High pressure connection 14 Model tag 4 High pressure hose...

  • Page 6: Operating Your Pressure Washer

    4 Operating your pressure washer 4.1 Connection of high 1. Mount the high pressure pressure hose hose on the outlet (3). 4.2 Mounting of spray lance and Click & Clean nozzles 1. Push the spray lance (6) into the spray gun (7) and screw it on.
  • Page 7 4.3 Water connection An ordinary 1/2" garden hose IMPORTANT! Only use wa- of min. 5 m and max. 25 m will ter without any impurities. If be suitable. there is a risk of running sands in the inlet water (i.e. from your own well), an additional fi...

  • Page 8: Fields Of Application And Working Methods

    4.5 Pressure regulation on The pressure can be regulated ® ® the TORNADO on the TORNADO PR nozzle Højtryk nozzle (8). High pressure Low pressure Lavtryk 5 Fields of application and working methods 5.1 General Effi cient high pressure cleaning is achieved by following a few guidelines, combined with your own personal experience of specifi...
  • Page 9 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk-ALTO in association with accessories and detergents. Task Accessories ‘Click Cleaning method &...

  • Page 10: After Using Your Pressure Washer

    6 After using your pressure washer 6.1 Storing the washer The machine should be 3. Stop the machine, unplug stored in a frost-free room! and wind up hose and cable. 4. Place spray handle, nozzles Pump, hose and accessories and other accessories in the should always be emptied of holders of the machine.

  • Page 11: Maintenance

    7 Maintenance WARNING! Always disconnect Wash out water hose, high the electrical plug from the pressure hose, spray lance socket prior to maintenance or and accessories before cleaning. mounting. Clean the connectors of dust To ensure a long and problem and sand.
  • Page 12 7.2 Cleaning of nozzle A clogging up in the nozzle causes a pump pressure which is too high. This is why cleaning is required immediately. 1. Stop the machine and dis- connect the nozzle. 2. Clean the nozzle. IMPOR- TANT: The cleaning tool (11) should only be used when the nozzle is detached! 3.

  • Page 13: Trouble Shooting

    8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk- ALTO service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse.

  • Page 14: Further Information

    9 Further information 9.1 Recycling the washer Make the old cleaner unusable As specifi ed in European Direc- immediately. tive 2002/96/EC on old electri- cal and electronic appliances, 1. Unplug the cleaner and cut used electrical goods must the electric cable. be collected separately and recycled ecologically.
  • Page 15 9.3 Accessories Only use original accessories. Click & Clean Special nozzle for enameled surfaces. Optimal distance: 30 Car nozzle - 50 cm. Click & Clean 90° angled special nozzle for undercarriage and wheel arches. Undershassis Integrated guide shoes. nozzle Click & Clean Adjusted in angles from 0°...

  • Page 16: Main Technical Data

    For cleaning of grease and oil on motors for instance. Applied with an atomizer. Wood Cleaner For cleaning of wooden surfaces incl. of wooden garden furniture. 10 Main Technical Data Type C 120.2 Rated pressure bar/MPa 100/10.0 Permissible pressure bar/MPa max.

  • Page 17: Declaration

    Name of the person responsible for the technical Wolfgang Nieuwkamp documentation Description of the equipment: High pressure washer Equipment name Nilfi sk-ALTO Model C 120.2 Dimension 280 x 270 x 820 mm Rated output voltage AC 230-240 V Rated frequency 50 Hz Rated input power 1.65 kW...
