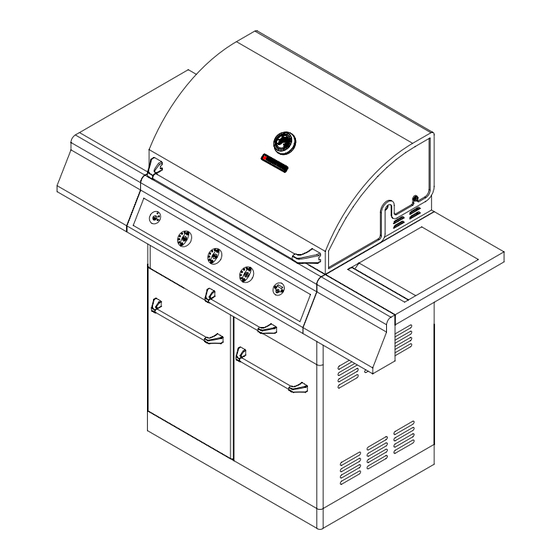

Electronic touchpad control lp gas grill
Hide thumbs Also See for 720-0533:

Advertisement

Quick Links

This Owner's Manual is provided and hosted by Appliance Factory Parts.
Perfect Flame - Old 720-0533 -
Old
Owner's Manual
Shop genuine replacement parts for Perfect Flame -
Old 720-0533 - Old
Find Your Perfect Flame - Old Grill Parts - Select From 2 Models
-------- Manual continues below --------

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 720-0533 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Perfect Flame 720-0533

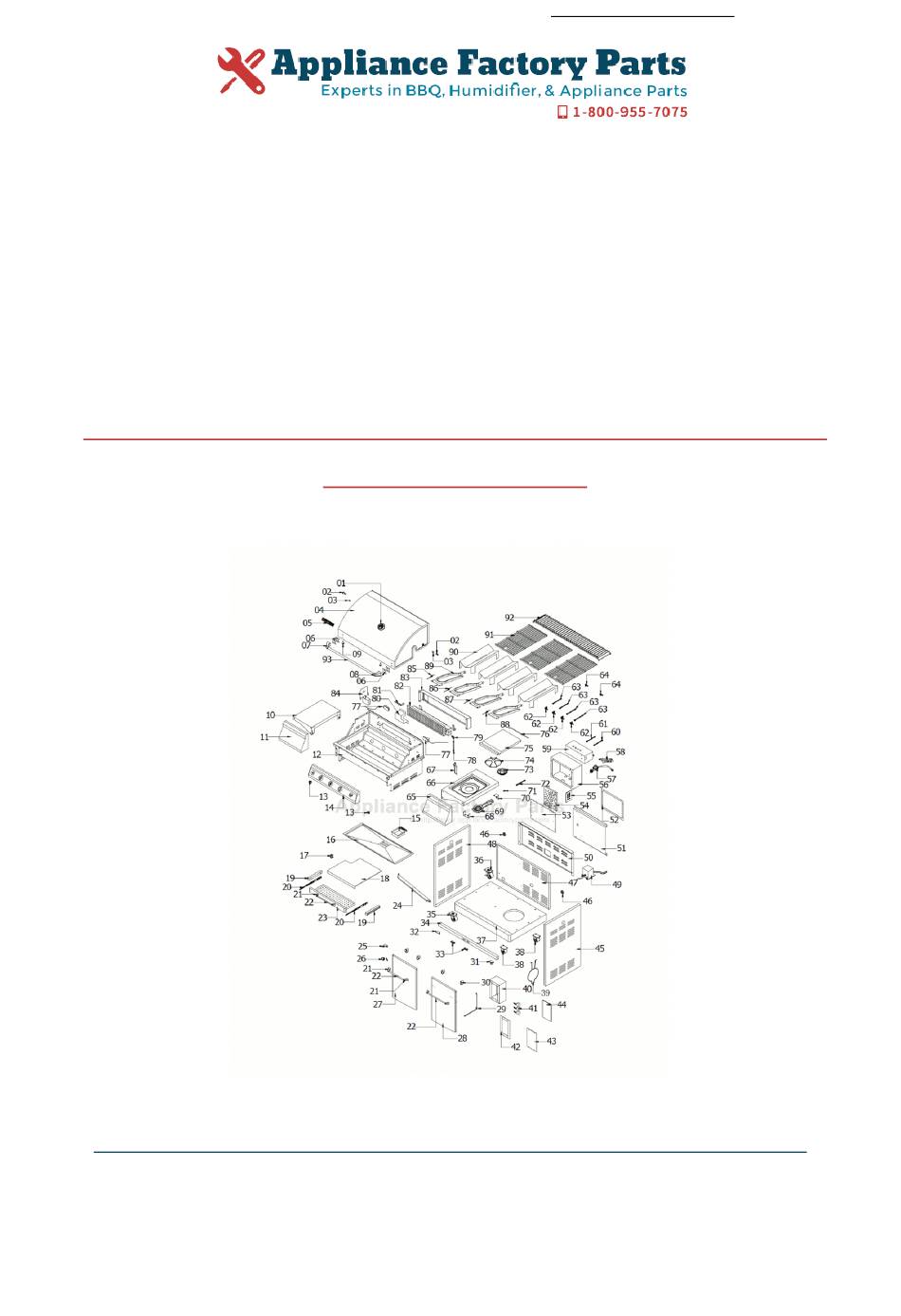

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Perfect Flame - Old 720-0533 - Owner's Manual Shop genuine replacement parts for Perfect Flame - Old 720-0533 - Old Find Your Perfect Flame - Old Grill Parts - Select From 2 Models -------- Manual continues below --------...
  • Page 2: Warning For Outdoor Use Only

    GRIL AU GAZ PL AVEC COMMANDE TACTILE ÉLECTRONIQUE (page 34) PARRILLA A GAS PL CON CONTROL ELECTRÓNICO SENSIBLE AL TACTO (página 67) MODEL/MODÈLE/MODELO # 720-0533 WARNING WARNING To reduce the risk of fire, burn hazard or FOR OUTDOOR USE ONLY...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety Information.……………………………………………………………………….…..……..…3 Preparation………………….…………………. ……………………….…………..……………….7 Assembly Instructions…………………………...……………………………………..…………...…7 Installation Instructions………………………………………..…………………..……….…..….10 Operating Instructions……………………………….…………………………..…..…..………..…13 Lighting Instructions..……………………………….………………………………………………..13 Touch Panel Flow Chart………………………………………..…………………………………...20 Additional Touch Panel Information………..………………………………………………………22 Light Operation Instructions...….………………….……………………………….……………….22 Care and Maintenance….…….……………………………………………………..………………23 Troubleshooting………..…………………………………………………………..…………………25 Warranty…………….…………….……….…………………………………………..……………...30 Replacement Parts List……..………….…...………………………………………..……………...31 WARNING WARNING If you smell gas: 1.
  • Page 4: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product please call customer service at 1-877-323-5263, 8 a.m. - 6 p.m., PST, Monday -Friday, 8 a.m. – 12 p.m. on Saturday. 1.
  • Page 5: Before Lighting

    WARNING Do not use the grill if the odor of gas is present. Contact customer service at 1-877-323-5263. CAUTION 1. Before cleaning, make sure the gas supply is “OFF,” the grill is unplugged from the electrical outlet and the burners have cooled. 2.
  • Page 6: Safety Practices To Avoid Injury

    WARNING Electrical Grounding Instructions for Rotisserie Motor – This appliance (rotisserie motor) is equipped with a plug and should be plugged directly into a properly grounded receptacle. When installed, it must be electrically grounded in accordance with local codes or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22.1.
  • Page 7 If the unit is stored indoors, make sure it is cool. • Do not use briquettes of any kind in the grill. The 720-0533 Liquid Propane grill is designed for optimum performance without the use of briquettes. Do not place briquettes on the flame tamers, as this will block the vent to the grill burners.
  • Page 8: Placement Of The Grill

    PLACEMENT OF THE GRILL WARNING Do not install this unit into combustible enclosures. There should be a minimum clearance of 24 inches from all sides to combustible materials. Outdoor cooking appliances should not be used under overhead combustible construction. When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths, and keeping gas supply lines as short as possible.
  • Page 9 Fig. 2 2. Side Burner Shelf Assembly Open the grill lid (A). The five screws used to attach the side burner (B) are already screwed into the right side panel of the grill cart (C). Remove the screws from the side panel. Align the holes on the side burner (B) with the holes in the grill cart (C).
  • Page 10 Fig. 4 Side Burner Igniter Wire Assembly Insert the side burner igniter wire male end (A) into the igniter female end (B) as shown in Fig. 4. Fig. 5 4. Rotisserie Bracket Assembly Align the holes on the rotisserie bracket (A) with the holes located on the left side of the firebox.
  • Page 11: Installation Instructions

    This grill is configured for Liquid Propane. Do not use a Natural Gas supply. Total gas consumption (per hour) of the 720-0533 Liquid Propane gas grill with all burners set on the highest level of flame (with all flame-indication lights illuminated): Main burners 48,000 BTU/Hr.
  • Page 12: Connecting The Liquid Propane Cylinder

    Storage of an outdoor cooking gas appliance indoors is permissible only if the cylinder is disconnected and removed from the outdoor cooking gas appliance. The cylinder system must be arranged for vapor withdrawal. The cylinder must include a collar to protect the cylinder valve. Manifold pressure: (operating) 10 inches water column (W.C.), (non-operating) 11.2 inches water column (W.C.).
  • Page 13: Before Testing

    BEFORE TESTING Make sure all packing materials have been removed from the grill, including the burner tie-down straps. WARNING Check all gas supply fittings for leaks before each use. Do not use the grill until all connections have been checked and do not leak. Do not smoke while leak testing. Never leak test with an open flame. Make a solution of one part liquid detergent and one part water.
  • Page 14: Operating Instructions

    OPERATING INSTRUCTIONS General Use of the Grill Each main burner is rated at 12,000 BTU/Hr. The main grill burners encompass the entire cooking area and are side ported to minimize blockage from falling grease and debris. Above the burners are flame tamers.
  • Page 15 Operation of the Computer-controlled Touch Panel System “ON/OFF” Rear MAIN BURNER (3-4) TIMER Control Button Button Burner Control Buttons (“Timer”, “+”, and “-” (“3-4”, “+”, and “-” Buttons) Buttons) “RB” Button MAIN BURNER (1-2) Control Buttons SIDE BURNER Control Button (“1-2”, “+”, and “-”...
  • Page 16 To Ignite the Main Burners (1 and 2) “+” (HI) Button Flame-Indication “1-2” Button Light “-” (LO) Button 1. The two main burners on the left side of the firebox are named as the Main Burners “1-2”. These main burners can be activated by touching the “1-2” Button for 3 seconds (1 beep will sound). Once the two burners are activated, touch the “1-2”...
  • Page 17 1. The two main burners on the right side of the firebox are named as the Main Burners “3-4”. These main burners can be activated by touching the “3-4” Button for 3 seconds (1 beep will sound). Once the two burners are activated, touch the “3-4” Button again immediately (2 beeps will sound) to ignite the burners;...
  • Page 18 To Ignite the Rear Rotisserie Burner RB ON/OFF-Indication Light “RB” Button 1. The rear rotisserie burner is abbreviated as rear burner or “RB”. It can be activated by touching the “RB” Button for 3 seconds (1 beep will sound). Once the burner is activated, touch the “RB” Button again immediately (2 beeps will sound) to ignite the burner;...
  • Page 19: To Match Light The Grill

    and held for more than 2 seconds. After the desired time is set, touch the “Timer” Button to confirm the readout and begin counting down, To turn the timer “OFF”, touch the timer “Timer” Button for 3 seconds. O MATCH LIGHT THE GRILL If the burner will not light after sev eral attempts using the electronic control buttons, the burners may be lit ith a match.
  • Page 20 Fig. 9 Side Burner 1. If you have already attempted to light the side burner with the electronic control button, allow 5 minutes for any accumulated gas to dissipate. Insert a match into the lighting rod (A) as shown in Fig 9.
  • Page 21: Touch Panel Flow Chart

    Computer-Controlled Touch Panel System -- Flow Chart Start Turn the Main Power Switch to “ON” Self Inspection No (1 Beep) Yes (3 Beeps) Any error detected? System can be System cannot be operated. operated. Error code would be shown on (Proceed to the timer LED display, and Attachment 2)
  • Page 22 Attachment 2: Touch “ON/OFF” Button for 3 seconds When the system is “OFF” When the system is ON System turned “ON”. Main System turned “OFF”. All LED Power LED Light is “ON”. lights are “OFF”. Is any burner turned System is automatically “ON”...
  • Page 23: Additional Touch Panel Information

    Halogen Lights Light Operation Instructions . Make sure the light power switch on the control panel is in the “OFF” position 2. Connect power plug to prop erly grounded outlet. 3. Turn the light power switch to “ON”. WARNING Keep any electrical supply cord away from any heated surface. alogen Bulb Replacement .
  • Page 24: Care And Maintenance

    7. To re-install the light, replace the glass cover, insert the light bulb housing into the grill and insert and tighten the screw. leaning Method Follow steps 1 through 4 above for glass cover removal. Use a damp towel to clean the surface of the glass cover.
  • Page 25 The easiest way to clean the grill is immediately after cooking is completed, and the flames have been turned off. ear a barbeque mitt to protect your hand from heat and steam. crub the hot cooking grates by dipping a bristle barbecue brush in tap water. Cleaning will be more difficult if the grill is allowed to cool.
  • Page 26: Troubleshooting

    Flame Characteristics Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting as shown in Fig. 12. The following steps should be followed for correcting the flame characteristics: 1. Turn the grill “OFF ”...
  • Page 27: Before Calling For Service

    BEFORE CALLING FOR SERVICE the grill/computer-controlled touch panel system does not function properly, use the following checklist before contacting your dealer for serv ice. You may save yourself the cost of a service call. Testing Item Specification The system will per form a self-insp ection every time the main power is switched “ON”.
  • Page 28: Main Burners

    Touch “ON/OFF” Button and hold for 3 seconds to “ON/OFF” Button activate/deactivate the system. The grill cannot be operated unless the system is activated. System “ON/OFF” indication light will illuminate; 1 beep will When system is activated activation/ sound; safety valve will open. deactivation “ON/OFF”...
  • Page 29 Touch “SB” Button and hold for 3 seconds to Burner activation activate the burner. 1 beep will sound when activated. Once the burner is activated, press “SB” Button Turn burner “ON” again immediately to ignite the burner; 2 beeps will sound when the burner start igniting.
  • Page 30 Touch the “Timer” Button and hold for 3 seconds to turn the timer “ON” or “OFF”. 1 beep will sound when the timer is turned “ON”, and 3 beeps will sound when Operation turned “OFF”. The timer can only be activated when either the main burners or the rear burner is ignited.
  • Page 31: Warranty

    WARRANTY Nexgrill Industries, Inc., warrants to the original consumer-purchaser of each Perfect Flame Outdoor Gas Grill that when subject to normal residential use, it is free from defects in workmanship and materials for the periods specified below. This warranty excludes grills used in rental or commercial applications.
  • Page 32: Replacement Parts List

    REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-877-323-5263, 8 a.m. – 6 p.m., PST, Monday – Friday and 8 a.m. – 12 p.m. PST, Saturday. REF# DESCRIPTION REF# DESCRIPTION Temperature Gauge Swivel Caster Main Lid Screw Swivel Caster with Brake Main Lid Screw Cover Bottom Panel, LP...
  • Page 33 REF# DESCRIPTION REF# DESCRIPTION Side Burner Pipe Rotisserie Motor Bracket Side Burner Fix Bracket Main Burner Igniter Wire A Side Burner Orifice Brass Connector Main Burner Igniter Wire B Side Burner Flex Gas Line Main Burner Igniter Wire C Side Burner Ring Main Burner Igniter Wire D Side Burner Cooking Grid Main Burner...
