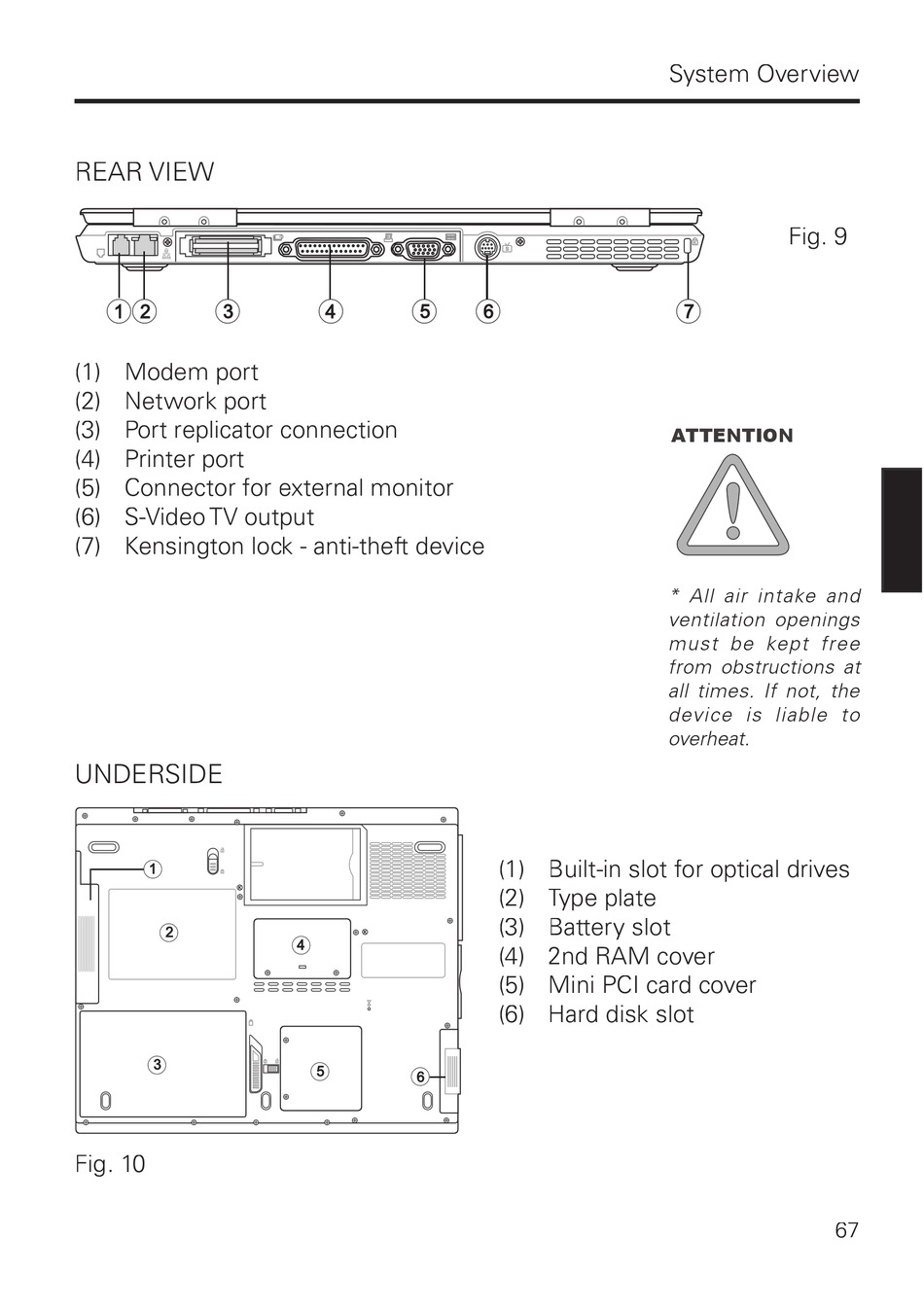

REAR VIEW

(1) Modem port
(2) Network port
(3) Port replicator connection
(4) Printer port
(5) Connector for external monitor
(6) S-Video TV output
(7) Kensington lock - anti-theft device

UNDERSIDE

Fig. 10
System Overview
��TENTION
* All air intake and
ventilation openings
must be kept free
from obstructions at
all times. If not, the
device is liable to
overheat.
(1) Built-in slot for optical drives
(2) Type plate
(3) Battery slot
(4) 2nd RAM cover
(5) Mini PCI card cover
(6) Hard disk slot
Fig. 9
67
