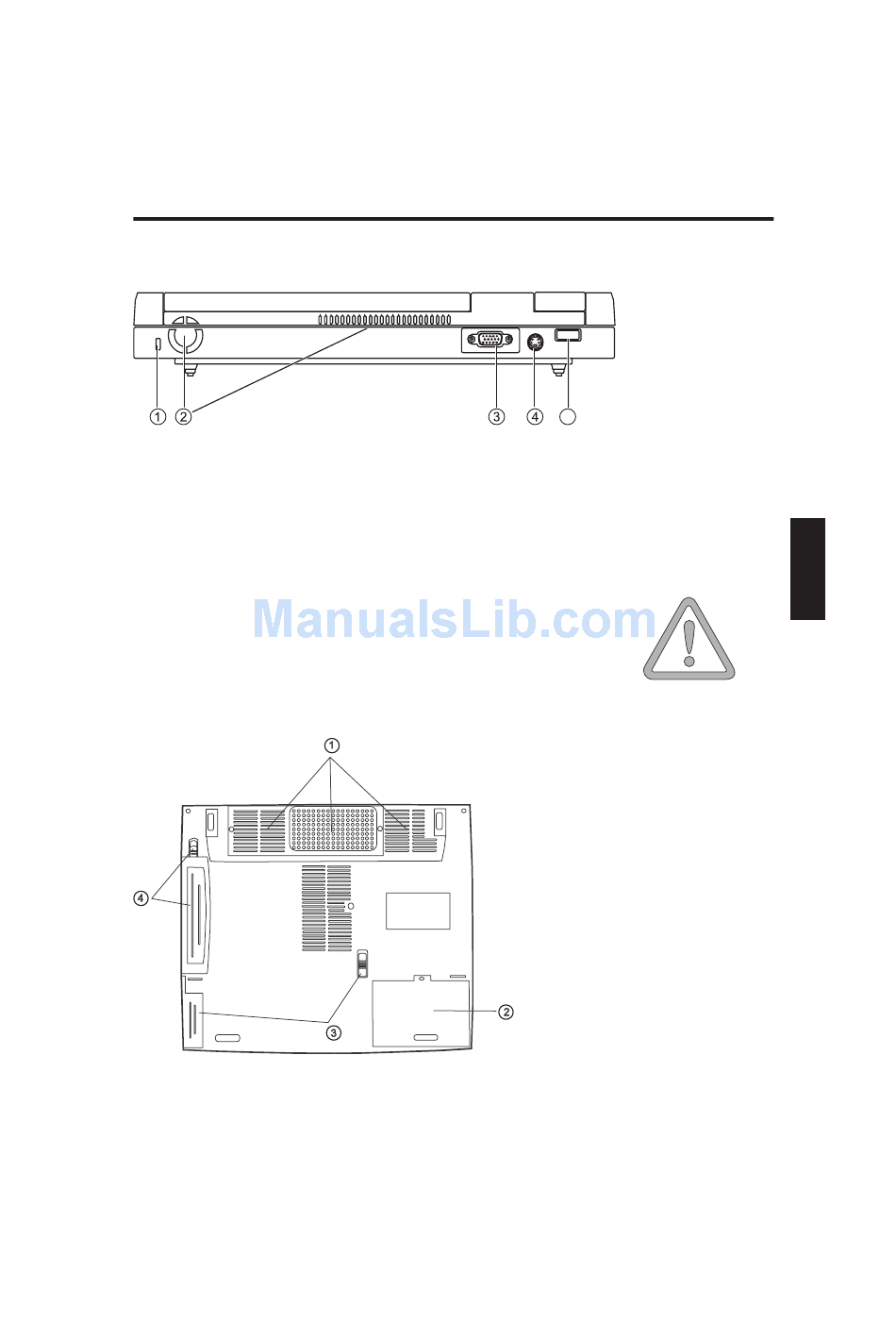

REAR VIEW

(1) Kensington lock
(2) Ventilation slots *
(3) Connector for external monitor
(4) S-Video TV output
(5) Infrared interface

UNDERSIDE

Fig. 10
System Overview
Fig. 9
5
* All air intake and ventilation
openings must be kept free from
obstructions at all times.
If not, the device is liable to
overheat.
PLEASE NOTE
(1) Ventilation slots *
(2) Hard disk slot
(3) Battery pack and
release catch
(4) Removable disk drive
with release catch
The floppy disk drive can
be removed after releasing
the catch and replaced
with an optionally available
CDRW drive.
