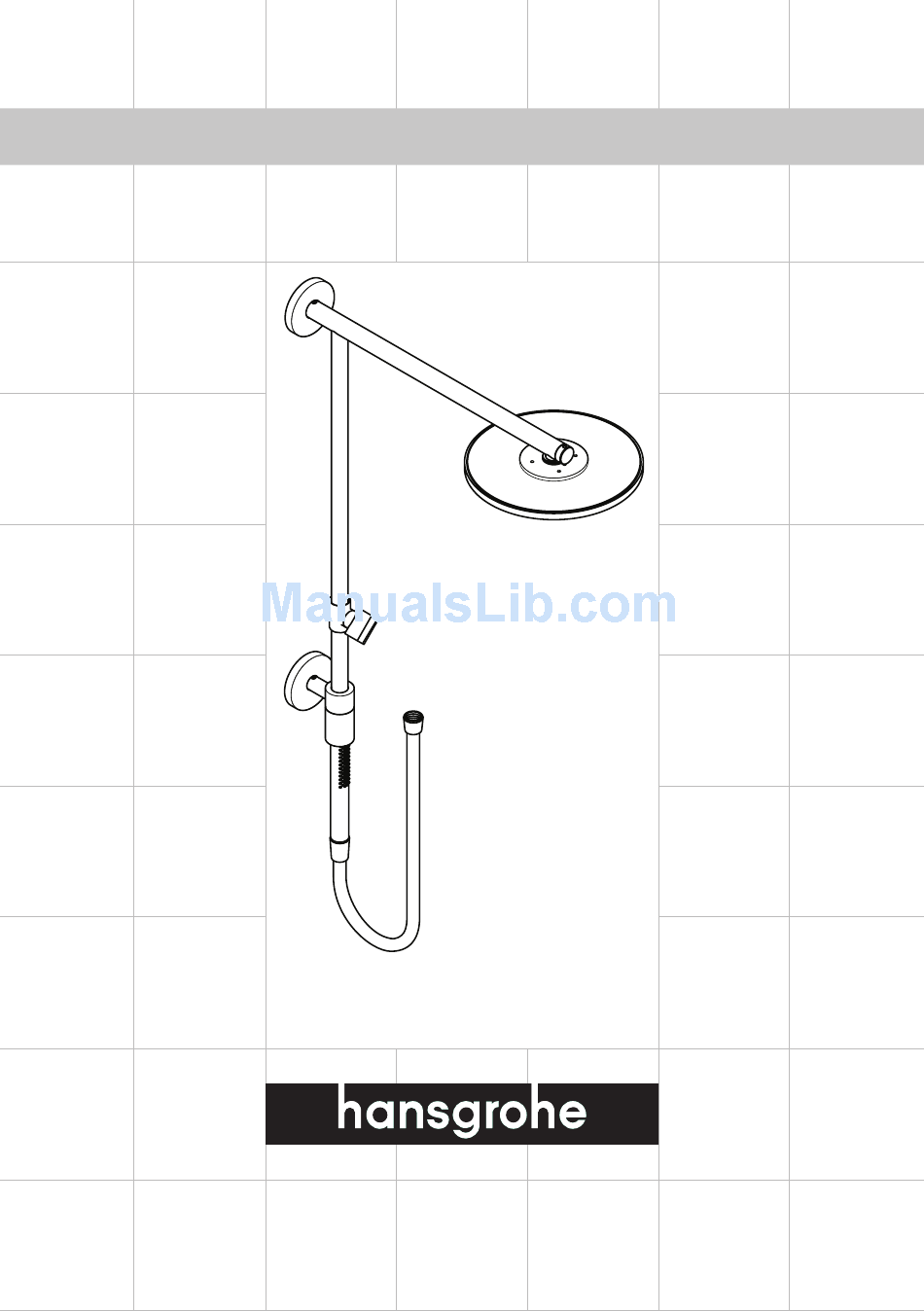

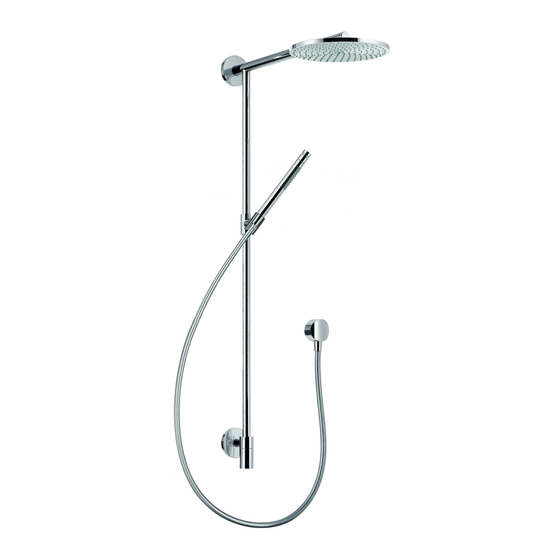

- Page 1 Installation Instructions / Warranty Raindance Connect Showerpipe 27164001...
-
Page 2: Suggested Installation
Raindance Connect Showerpipe 27164001 Suggested installation... -
Page 3: Technical Information
Technical Information Max. water pressure Recommended water pressure Test pressure Max. flow rate showerhead handshower Installation Considerations This unit does not include a water supply. Use Hansgrohe model 27458XX3 or another supply that complies with ASME A112.18.1/CSA B215.1 including ASME A112.18.3. The installer should be sure that the mounting location for this product is flat (no projecting joints or tiles) and that the wall is suitable for... -
Page 4: Installation
Installation Drill the screw holes with a 6 mm bit. Install the anchors. If both ends of the showerpipe are mounted on tile, install the top and bottom mounting wall flanges. - Page 5 If the bottom of the showerpipe is mounted on tile, but the top is not, install the top wall flange with the tile matching disk. Push the shower arm and lower support into the ends of the riser. Install the escutcheons. Push the showerpipe assembly over the wall flanges.
- Page 6 Install the showerhead on the shower arm. Use a level to make sure that the shower arm is straight. If it is not, loosen the mounting screws slightly with an 8 mm wrench. Reposition the arm until it is straight. Tighten the mounting screws.
- Page 7 Tighten the shower arm safety screw with a 2 mm Allen wrench. Place a hose washer in one end of the hose. Connect this end to the water supply (not included). This unit does not include a water supply. Use Hansgrohe model 27458XX3 or another supply that complies with ASME A112.18.1/ CSA B215.1 including ASME...
-
Page 8: User Instructions
User instructions When the water is turned on, it will come from the handshower. To use the showerhead, push the handshower up into the handshower holder on the bottom of the showerpipe. To remove the handshower from the showerpipe, push downwards on the holder (1), then pull the handshower down and out of the pipe(2). -
Page 9: Scale Removal
Scale removal The showerhead and the handshower use the Quick Clean™ cleaning system. If scale deposits are noticed in the spray channels, turn the water on lightly and rub across the channels with a finger or a sponge to dislodge them. To remove scale deposits from the showerhead spray face, pour about /4”... -
Page 10: Replacement Parts
10x1,5 15x2,5 15x2,5 15x2,5 10x1,5 Replacement Parts hose slider riser escutcheon wall flange shower arm screen washer showerhead handshower mounting kit tile-matching-disk escutcheon handshower holder 28255000 98714000 96770000 98672000 9867000 98675000 94246000 98855001 98715001 98716000 98681000 9879000 98821000... -
Page 11: Limited Lifetime Consumer Warranty
Cleaning Recommendation for Hansgrohe Products Modern lavatory faucets, kitchen faucets, and showers consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and returns, it is necessary to consider certain criteria when cleaning. - Page 12 the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Hansgrohe and Commercial products, and (ii) for 5 years, with respect to AXOR products. THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: A.
