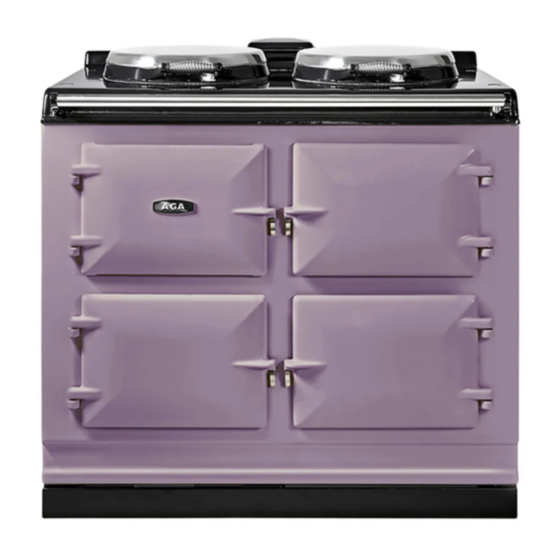

AGA EC3 Owner's Manual
3 oven electric cooker
Hide thumbs
Also See for EC3:
- Owner's manual (21 pages) ,
- Users instructions & cooking manual (20 pages) ,
- Installation instructions manual (16 pages)
Subscribe to Our Youtube Channel
Related Manuals for AGA EC3
Summary of Contents for AGA EC3

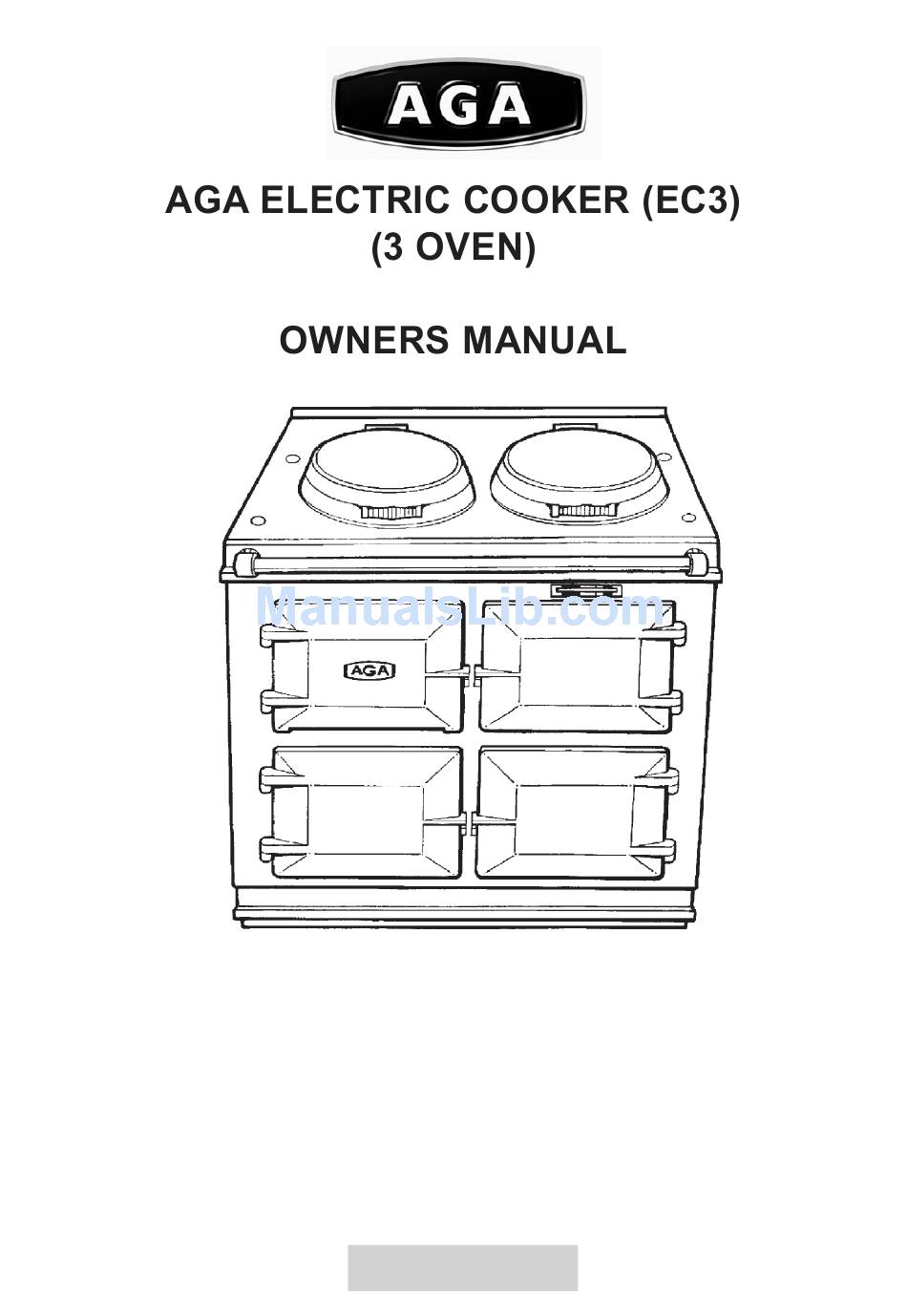

- Page 1 Comprising Installation & Users Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AUSTRALIA 03/12 EINS 515134...
- Page 2 Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA.
-
Page 3: Installation Section
As responsible manufacturers we take care to make sure that our products are designed and constructed to meet the required safety standards when properly installed and used. Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could alao affect your statutory rights. - Page 4 Fig. 1 DESN 514194 mm 987 889 851 679 1330 756 1125 698 484 816 116 52 55 699 662 When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be increased overall by 10mm beyond the figures quoted. This allows safe margin to take into account the natural dimensional variations found in major castings.
- Page 5 The isolator should not be positioned immediately above the cooker, but must be fitted within 2 metres of the appliance. A metal plate which is provided in the AGA pack MUST be positioned on the top runners of the Baking Oven. Slide the plate in fully, until it makes contact with the back of the oven.
- Page 6 Fig. 3 DESN 514245 Fig. 4 DESN 514205 A...
- Page 7 Hand this Owners Manual to the User for retention and instruct in the safe operation of the appliance. Also advise the user that, for continued efficient and safe operation of the appliance that servicing is carried out at intervals recommended by the AGA distributor. 1. Select 1250v Flash Test on Clare Test equipment.
- Page 8 See Figs. 6, 7, 8 & 9 Pre-site visiting will have determined where and how the layout of the oven vent pipework should be designed and installed. It is then necessary to check that the pipework design and the pipework resistance are within the parameters possible.
- Page 9 Fig. 7 Fig. 6 DESN 513937 DESN 513938 Fig. 8 DESN 516111...
- Page 10 1 AGA book 1 Plain shelf A full description of cooking with your AGA is given in the AGA Book. For the most effective operation of the cooker the following points should be carefully observed: 1. Close the insulating lids whenever the hotplates are not in use.
- Page 11 Since the purpose of the heat indicator is to show that the AGA contains the full amount of stored heat it is best to refer to it first thing the morning or after a period of several hours during which no cooking has been done.
- Page 12 To turn cooker off, switch off electrical supply at the wall. When the cooker is in use the control knob should be in the HIGH (ie 4/5) section of the numbered band, with the indicator on or about the centre of the silver section of the heat indicator. It may be necessary to adjust the control knob slightly to achieve this.
- Page 13 When first used, your AGA will emit an odour for a short while. Do not worry, this is simply due to protective oil burning off the hotplates. If the inside of the hotplate lids are wiped whilst the AGA is heating up it will avoid a film of this oil being deposited on the inside of the lids.
- Page 14 If this is the first time you have used this type of oven shelf, go through the procedure of changing it with the aid of Figs. 11 to 14. Fig. 11 DESN 514201 Fig. 12 DESN 514202...
- Page 15 Fig. 13 DESN 514203 Fig. 14 DESN 514204...
- Page 16 The easiest way to clean the AGA top plate and front plate is to mop up spills as they happen. Baked-on food is more difficult to clean but can usually be removed with proprietary vitreous enamel cleaners or mild cream cleaners using a cloth, or, if necessary, a nylon scouring pad.
- Page 17 As the AGA Cooker is heated differently from an ordinary cooker, exact conversions are not possible. Look in the AGA Book for a similar recipe. Below is a quick guide to oven usage. GRILLING Top - grilling SCONES 2nd runner - scones, small pastries;...
- Page 18 For continued efficient and safe operation of this appliance, it is important that servicing is carried out at regular intervals as recommended by your AGA Specialist, once every 5 years. The cooker should be turned OFF by the user the night...
- Page 20 With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time. Manufactured by AGA Rangemaster Station Road Ketley Telford Shropshire TF1 5AQ England www.agaliving.com...
