AGA ELECTRIC (EC-LMV & EE-LMV) COOKER
- (EXTENDED OVEN VENT)
OWNERS MANUAL
Comprising
Installation & Users
Instructions
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety
and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE
For use in GB and IE
04/14 EINS 513935
Advertisement
Table of Contents
Related Manuals for AGA EC-LMV
Summary of Contents for AGA EC-LMV

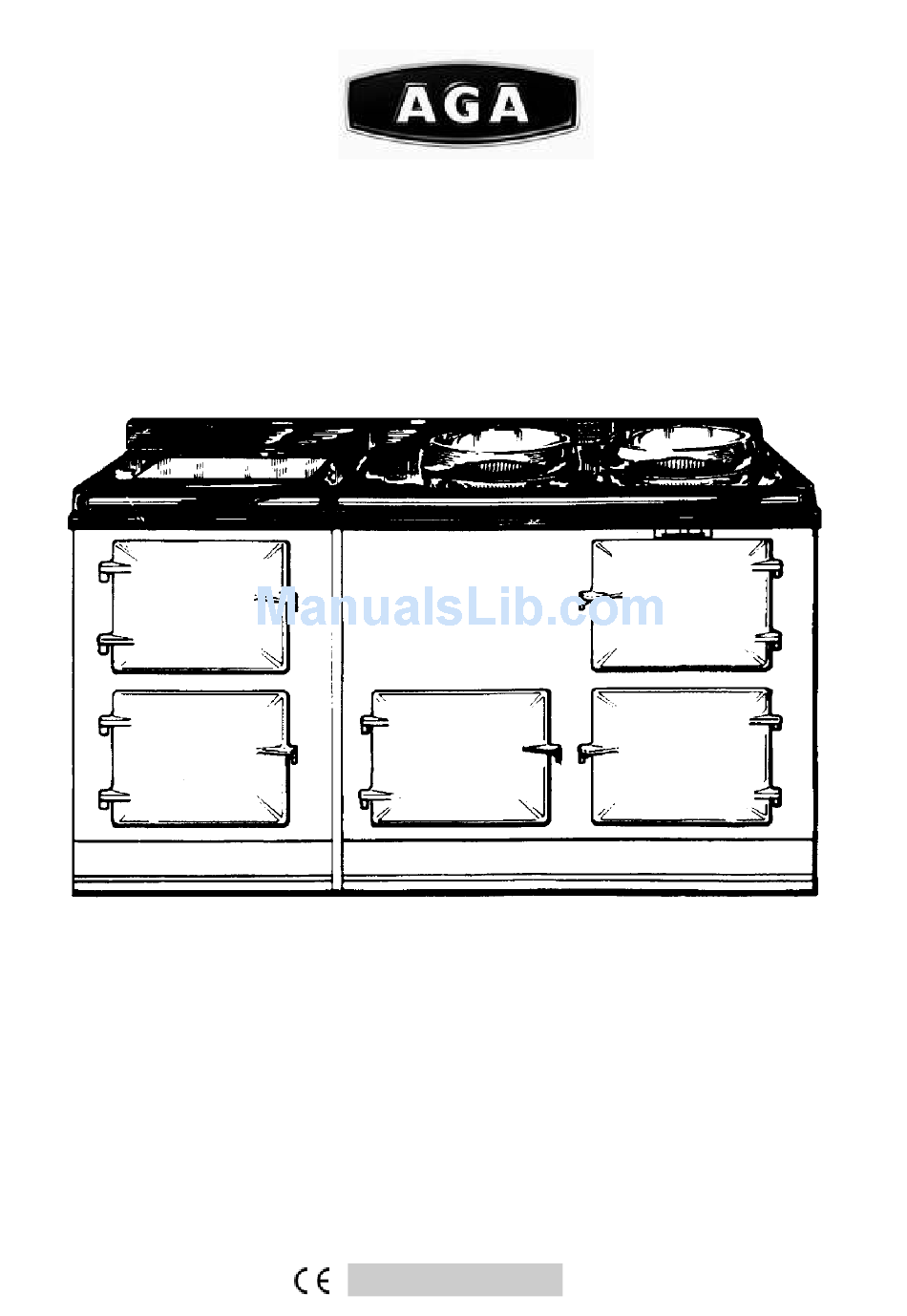

- Page 1 AGA ELECTRIC (EC-LMV & EE-LMV) COOKER - (EXTENDED OVEN VENT) OWNERS MANUAL Comprising Installation & Users Instructions Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA.
-
Page 2: Table Of Contents
8 - 9 USER GUIDE HEALTH & SAFETY THE AGA COOKER OPERATING THE AGA THE HEAT INDICATOR THERMOSTAT CONTROL POWERED OVEN VENTING GUIDE TO AGA COOKING FITTING OF OVEN SHELVES REMOVAL OF OVEN SHELVES CARING AND CLEANING FOR THE AGA SERVICING... -
Page 3: Installation Section
RH side for oven doors access. If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 10mm on either side, to allow for the walls not being square and also for the natural dimensional variations found in the castings. - Page 4 It should be in accordance also with any relevant requirements of the local authority. In your own interest, and that of safety to comply with the law, all appliances should be installed by an authorised AGA distributor, in accordance with the relevant regulations.
-
Page 5: Electrical
EE-LMV MODEL THIS HOLE IF REQUIRED FOR OVEN VENT PIPE IS TO BE CUT ON SITE IN THE LEFT OR RIGHT HAND SIDE PANEL. Fig. 1A mm 1487 889 851 679 1330 756 1125 698 484 816 52 790 873 55 699 662 ELECTRICAL WARNING: THIS APPLIANCE MUST BE EARTHED. -
Page 6: Instructions
Hand this Owners Manual to the User for retention and instruct in the safe operation of the appliance. Also advise the user that, for continued efficient and safe operation of the appliance that servicing is carried out at intervals recommended by the AGA distributor. ELECTRICAL TEST PROCEDURE... -
Page 7: Oven Vent Pipe Connection Options
OVEN VENT PIPE CONNECTION OPTIONS Fig. 3 DESN 513987... -
Page 8: Oven Venting Systems
OVEN VENTING SYSTEMS See Figs. 4, 5 & 6 Pre-site visiting will have determined where and how the layout of the oven vent pipework should be designed and installed. It is then necessary to check that the pipework design and the pipework resistance are within the parameters possible. - Page 9 Fig. 5 Fig. 4 DESN 513937 DESN 513938 Fig. 6 DESN 516111...
-
Page 10: User Guide
IMPORTANT NOTICE: PLEASE READ THE ACCOMPANYING WARRANTY Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could also affect your statutory rights. -
Page 11: The Aga Cooker
The AGA is also supplied with the following accessories: 1 Large roasting tin with grill rack 1 Half size roasting tin with grill rack 2 Oven grid shelves A full description of the cooking with the AGA is given in the AGA book. -
Page 12: Operating The Aga
When first switched on, the AGA will emit an odour for a short while. This is simply due to protective oil burning off the hotplates. Wipe the inside of the lids whilst the AGA is heating up to avoid a film of this oil being deposited on the inside of the lids. -
Page 13: The Heat Indicator
Since the purpose of the heat indicator is to show that the AGA contains the full amount of stored heat it is best to refer to it first thing the morning or after a period of several hours during which no cooking has been done. -
Page 14: Guide To Aga Cooking
GUIDE TO AGA COOKING As the Aga Cooker is heated differently from an ordinary cooker, exact conversions are not possible. Look in the Aga Book for a similar recipe. Below is a quick guide to oven usage. 2 = TWO OVEN AGA... -
Page 15: Fitting Of Oven Shelves
FITTING OF OVEN SHELVES When using the oven shelves for the first time follow Figs. 10 - 13. Fig. 10 Fig. 11 DESN 512403 DESN 512404 REMOVAL OF OVEN SHELVES Fig. 12 Fig. 13 DESN 512405 DESN 512406... -
Page 16: Caring And Cleaning For The Aga
Top Plate and Front Plate The easiest way to clean the AGA top plate and front plate is to mop up spills as they happen. Baked-on food is more difficult to clean but can usually be removed with AGA vitreous enamel cleaner or mild cream cleaners using a cloth, or, if necessary, a nylon scouring pad. - Page 20 For further advice or information contact your local AGA Specialist With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time. Manufactured by...
