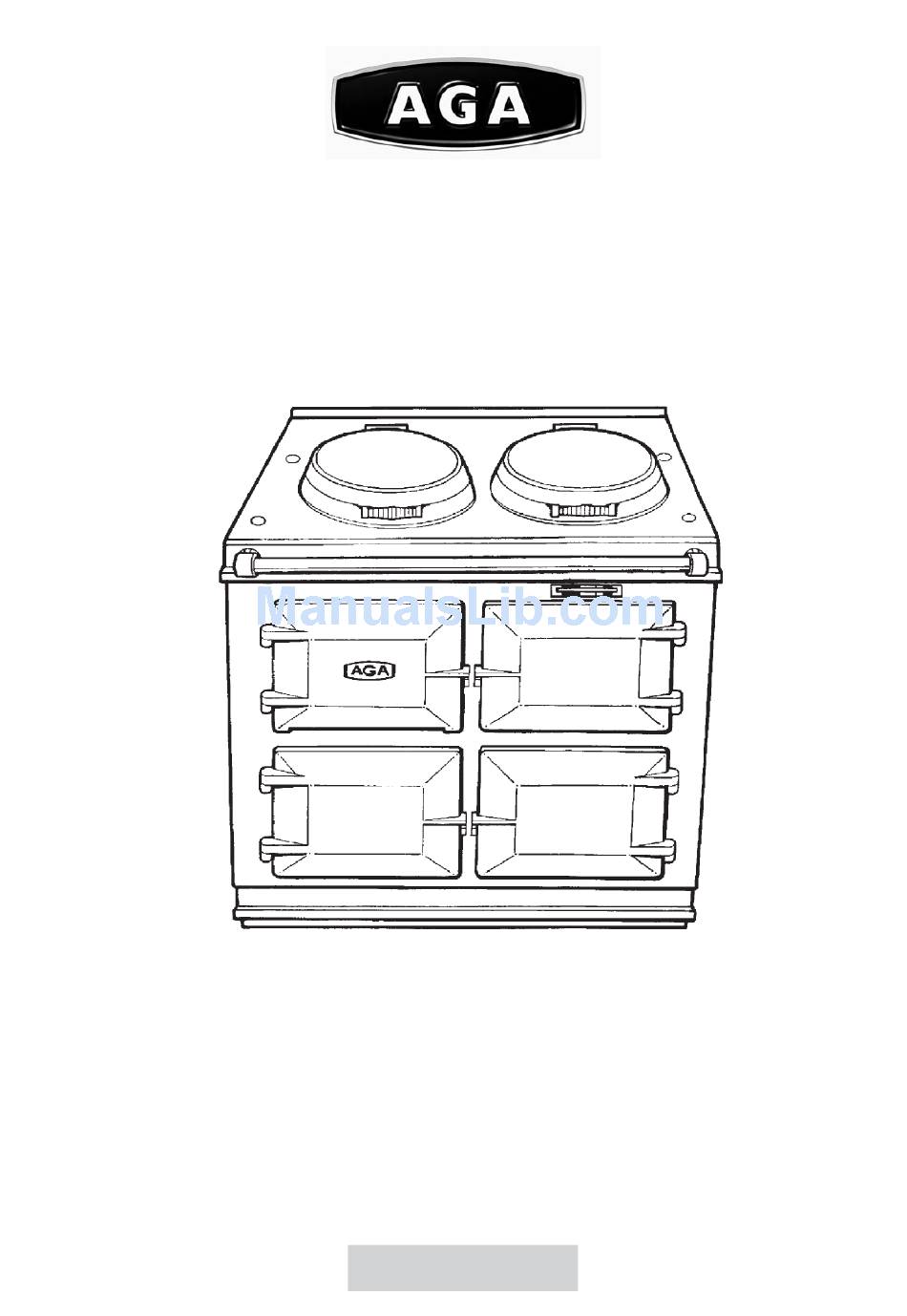

- Page 1 AGA ELECTRIC COOKER (EC3-LM) (3 OVEN) OWNERS MANUAL Comprising Installation & Users Instructions PLEASE READ THESE INSTRUCTIONS BEFORE USING THIS APPLIANCE AUSTRALIA 05/14 EINS 516066...
-
Page 2: Installation
Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA. - Page 3 If the AGA is to be installed in a brick recess, then the minimum clearance should be increased by at least 10mm on either side to allow for the walls not being square and also for the natural dimensional variations found in the castings.
- Page 4 Installation must be to Local and National Wiring Regulations/Codes in force, and carried out by a Qualified Engineer. Product Approved for Australia to AS/NZ 560335.2.6 : 2002 Electrical Safety Queensland Q 050049. NOTE: The main AGA cooker is delivered ex-works unassembled. Assembly is undertaken on site by an authorised AGA Distributor.
- Page 5 TECHNICAL DATA - AGA EC3-LM (3 Oven) FOR WALLS EXTENDING BEYOND THE FRONT OF THE COOKER Fig. 1 DESN 514194 mm 987 889 851 679 1330 756 1125 698 484 816 116 52 55 699 662 * THIS HOLE IF REQUIRED FOR OVEN VENT PIPE IS TO BE CUT ON SITE IN THE LEFT OR RIGHT HAND SIDE PANEL.
-
Page 6: Baking Oven Baffle Plate
BAKING OVEN BAFFLE PLATE A metal plate which is provided in the AGA pack MUST be positioned on the top runners of the Baking Oven. Slide the plate in fully, until it makes contact with the back of the oven. -
Page 7: To Test The Aims Control Handset
Fig. 2 TO TEST THE AIMS CONTROL HANDSET Fig. 3 Press the fan button on the handset, the vent fan symbol should show on the handset screen. The oven vent fan should operate and the fan oven neon on the control panel should illuminate. Press the fan button again and the fan should go off. - Page 8 MAINS CABLE AND GUIDE TUBE ASSEMBLY Fig. 4 DESN 514243 A/ DESN 514626...
-
Page 9: Oven Vent Pipe Connection Options
ELEMENTS AND ELECTRICAL HOUSING PARTS ASSEMBLY Fig. 3 DESN 514245 OVEN VENT PIPE CONNECTION OPTIONS Fig. 4 DESN 514205 A... -
Page 10: Oven Thermocouple
OVEN THERMOCOUPLE NOTE: On AIMS controlled cookers the thermostat phial (probe) has been replaced by an oven thermocouple sensor, which is fitted to the PCB on the controls chassis. (See Fig. 2). 1. Feed the thermocouple sensor through the guide tube into the Roasting oven. -
Page 11: Oven Venting Systems
OVEN VENTING SYSTEMS See Figs. 9, 10 & 11 Pre-site visiting will have determined where and how the layout of the oven vent pipework should be designed and installed. It is then necessary to check that the pipework design and the pipework resistance are within the parameters possible. - Page 12 Fig. 9 DESN 515608 Fig. 10 DESN 513938 Fig. 11 DESN 516111...
-
Page 13: Aims Handset
AIMS HANDSET Handset can be wall mounted as described below. Remove backplate from the rear of the Handset by sliding down with hand and away from the Handset (Fig. 12). Select the site for the handset and use the backplate to mark the position of fixing holes. Drill 6mm dia. -
Page 14: The Aga Cooker
AIMS programme. The AGA EC3 cooker has three ovens, namely the Roasting Oven, Baking Oven and Simmering Oven. ‘Grilling’ and ‘frying’ can be done in the top and floor positions in the Roasting Oven. -
Page 15: The Heat Indicator
When first switched on, the AGA will emit an odour for a short while. This is simply due to protective oil burning off the hotplates. Wipe the inside of the lids whilst the AGA is heating up to avoid a film of this oil being deposited on the inside of the lids. -
Page 16: Baking Oven
Store the Plain Shelf out of the AGA. Use it cold in the Roasting Oven to deflect the heat from the top of the oven, creating a more moderate oven temperature underneath. It can also be used as a baking sheet. -
Page 17: Fitting Of Oven Shelves
FITTING OF OVEN SHELVES If this is the first time you have used this type of oven shelf, go through the procedure of changing it with the aid of Figs. 11 to 14. Fig. 11 DESN 514201 Fig. 12 DESN 514202... -
Page 18: Removal Of Oven Shelves
REMOVAL OF OVEN SHELVES Fig. 13 DESN 514203 Fig. 14 DESN 514204... -
Page 19: Aims Controller Handset
AIMS (AGA INTELLIGENT MANAGEMENT SYSTEM) CONTROLS Fig. 15 DESN 515282 AIMS SET-UP (SEE FIG. 15) 1. Connect the electricity supply. 2. Turn the right hand control knob from the OFF setting to the Normal manual control setting. The cooker will heat up until it reaches the Normal temperature as indicated by the black line on the heat indicator. - Page 20 The AIMS has one or two programmable events: The two events programme will enable the AGA to be at ‘Normal’ in the morning, (ie to cook breakfast) drop to a lower temperature during the day, and return to ‘Normal’ temperature in the evening (ie: to cook dinner) and drop to ‘Slumber’...
-
Page 21: Information (Main Menu) Screen
(Normal, Low or Slumber). If an arrow is automatically (AIMS) or manually showing this indicates the cooker is (according to switch position on main AGA heating up from Low or Slumber to Normal. control panel) Black band - correct amount of... -
Page 22: Aims Programme Screen
‘Slumber’ mode, its lowest setting until the next morning. Boost If cooking is required when the Aga is in the AIMS program i.e ‘Low’ or ‘Slumber’, you can boost the cooking temperature by pressing the Button which will bring the AGA upto ‘Normal’ operating temperature. This will take up... - Page 23 THE HOLIDAY SCREEN Press the button to activate this screen and to move through the different operations and set a holiday programme. 1. Set a start date and time using the + or - buttons. Pressing the button after each field has been entered to move you to the next field.
-
Page 24: Cleaning And Caring For Your Aga
Top Plate and Front Plate The easiest way to clean the AGA top plate and front plate is to mop up spills as they happen. Baked-on food is more difficult to clean but can usually be removed with proprietary vitreous enamel cleaners or mild cream cleaners using a cloth, or, if necessary, a nylon scouring pad. -
Page 25: Aims Handset Care
Complete the following procedure to check the handset is communicating with the base unit and to select a language option. 1. Press and hold the oven vent fan button on the control panel in the AGA until the blue neon vent fan indicator flashes, then release button. -
Page 26: Guide To Aga Cooking
GUIDE TO AGA COOKING As the AGA Cooker is heated differently from an ordinary cooker, exact conversions are not possible. Look in the AGA Book for a similar recipe. Below is a quick guide to oven usage. OVEN TEMPERATURE AGA OVENS... - Page 27 For continued efficient and safe operation of this appliance, it is important that servicing is carried out at regular intervals as recommended by your AGA Specialist, once every 5 years. The cooker should be turned OFF by the user the night preceding the day of servicing so that the appliance will have cooled down by the following morning.
- Page 28 For further advice or information contact your local AGA Specialist With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time. Manufactured by...
