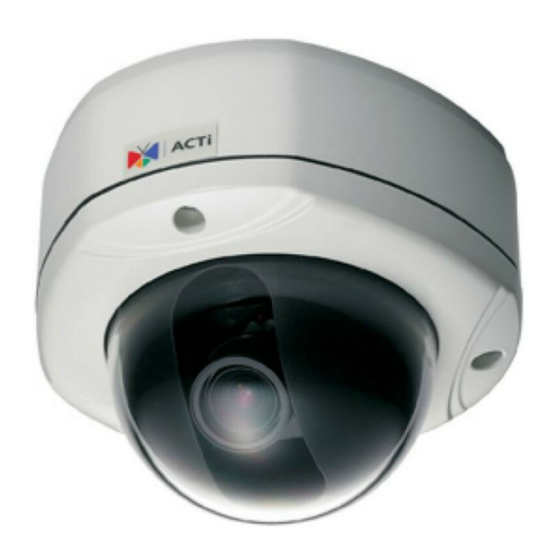

TCM-7411
H.264 Megapixel IP Outdoor Rugged Dome
Camera Hardware User's Manual
(DC 12V / PoE)
Ver. 2010/1/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCM-7411 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi TCM-7411

Summary of Contents for ACTi TCM-7411

  • Page 1 TCM-7411 H.264 Megapixel IP Outdoor Rugged Dome Camera Hardware User’s Manual (DC 12V / PoE) Ver. 2010/1/5...

  • Page 2: Table Of Contents

    TCM-7411 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ............... 5 Safety Instructions ................7 Physical description ................9 Installation Procedure Connect the IP Outdoor Rugged Dome ......... 13 Remove the cover ............... 13 Insert the cable ..............

  • Page 3: Precautions

    TCM-7411 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    TCM-7411 Hardware User’s Manual 1. Introduction Package Contents TCM-7411 Power Adaptor (Optional) Product CD Terminal Blocks for Power, DI/O & Audio Warranty Card Accessories Drill Template www.acti.com...

  • Page 5: Features And Benefits

    TCM-7411 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (18 FPS @ SXGA, 1280x1024) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.
  • Page 6 TCM-7411 Hardware User’s Manual Software Development Kit Support This IP Camera can be integrated or controlled by applications from third party software developers. Software developers can save considerable efforts by using our Streaming Library or ActiveX control. Please contact us for details on integration support.

  • Page 7: Safety Instructions

    TCM-7411 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 8 TCM-7411 Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...

  • Page 9: Physical Description

    TCM-7411 Hardware User’s Manual Physical description 1) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). 2) Power Input Connect the power adaptor here if your power input is DC12V.
  • Page 10 TCM-7411 Hardware User’s Manual This camera provides: •1 transistor output - For connecting external devices such as relays and LEDs. Connected devices can be activated by Output buttons on the Live View page or through video management software. •1 Digital Input - An alarm input for connecting devices that can toggle between an open and closed circuit, for example: PIRs, door/window contacts, glass break detectors, etc.
  • Page 11 TCM-7411 Hardware User’s Manual 4) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button.
  • Page 12 TCM-7411 Hardware User’s Manual 6) LED Descriptions There are three Red LEDs in the system. They indicate the operational status for power, fan and heater. These LEDs will light up in different configurations under different temperature, indicating the temperature control mechanism at work. The detail is shown in the chart below. Please note that this is the “Internal Temperature”...

  • Page 13: Installation Procedure

    TCM-7411 Hardware User’s Manual 2. Installation Procedure There are three types of installation methods for this IP outdoor rugged dome camera. Surface mount Flush mount Wall mount Pictures ● ● Optional Bracket required The mounting procedure can be divided into two parts,...

  • Page 14: Insert The Cable

    TCM-7411 Hardware User’s Manual 2) Insert the cable There are two conduit holes on this rugged dome. One is at the bottom, while the other is at the side and covered with a plug. Remove the plug if your cable will go through the one at the side of...

  • Page 15: Mount The Ip Outdoor Fixed Dome (Surface)

    TCM-7411 Hardware User’s Manual Mount the IP Outdoor Fixed Dome (Surface) www.acti.com...

  • Page 16: Mount The Ip Outdoor Fixed Dome (Flush)

    TCM-7411 Hardware User’s Manual Mount the IP Outdoor Fixed Dome (Flush) www.acti.com...

  • Page 17: Mount The Ip Indoor Fixed Dome (Wall)

    TCM-7411 Hardware User’s Manual Mount the IP Indoor Fixed Dome (Wall) www.acti.com...

  • Page 18: Adjust The Camera

    TCM-7411 Hardware User’s Manual Adjust the camera Adjust zoom and focus Please adjust the camera direction first. Then move the focus and the zoom lever adjust the zoom and the focus. Fix the zoom and focus after adjusting. Adjust camera functions The illustration below shows where to adjust each axis.

  • Page 19: Product Specification

    TCM-7411 Hardware User’s Manual Product Specification TCM-7411 Device Micron Progressive Scan CMOS Image Size 1/3 inch Effective Pixels 1280(H) x 1024 (V) Color Color mode automatically switched to B/W mode under 4 Lux Min. scene 0.05 Lux at F1.0 (2400 °K, 30 IRE)

  • Page 20: Accessing Camera

    TCM-7411 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself.
  • Page 21 TCM-7411 Hardware User’s Manual Please set the settings as below.   IP address: 192.168. 0.xxx  Subnet mask: 255.255.255.0 (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
  • Page 22 TCM-7411 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
  • Page 23 TCM-7411 Hardware User’s Manual 10. Click “Apply” 11. Please go to Maintain -> Save & Reboot, and click ”Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
  • Page 24 TCM-7411 Hardware User’s Manual www.acti.com...
