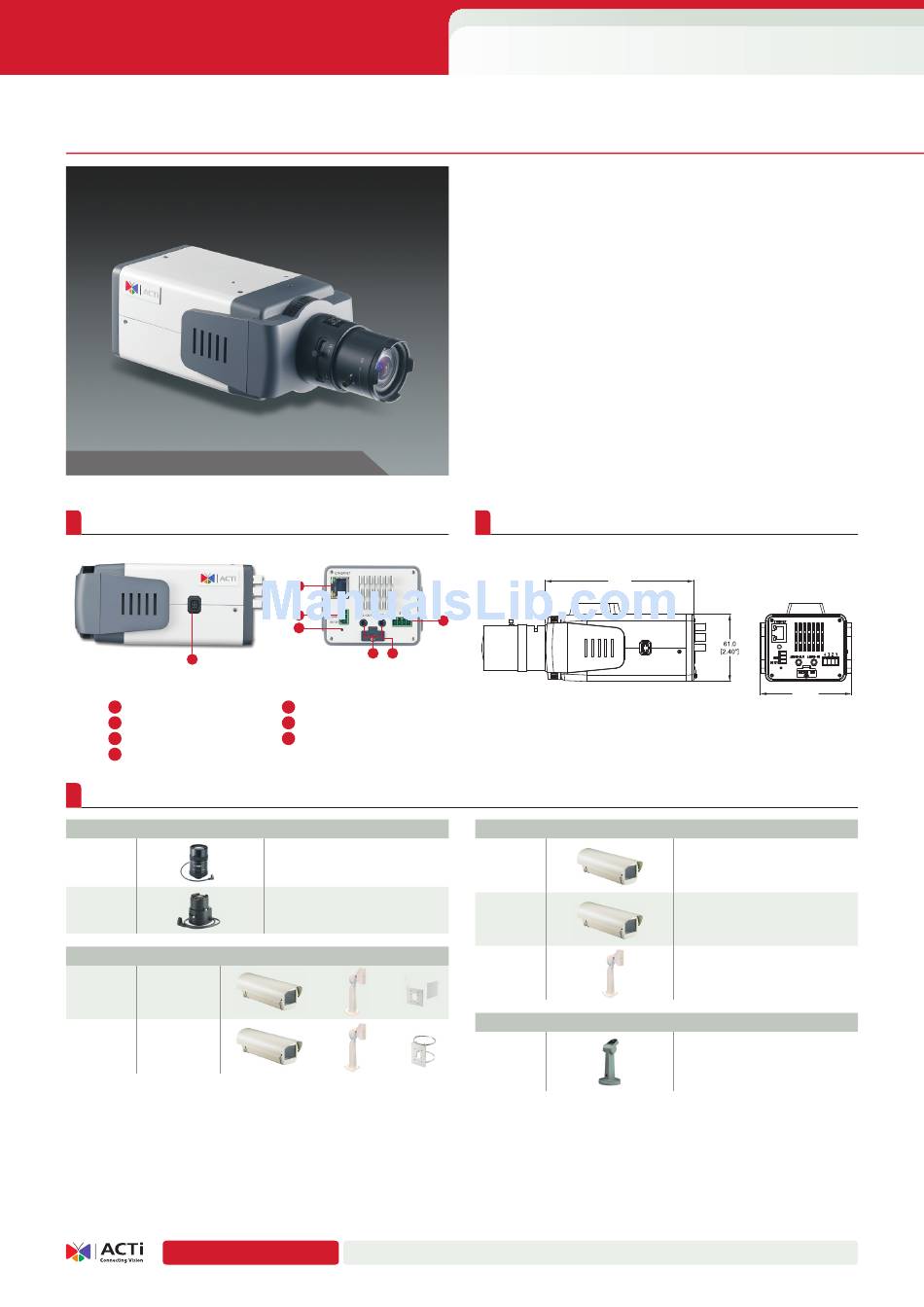

ACTi TCM-5311 Specifications

B ox C am e ra
TCM-5311
* The lens needs to be purchased separately.
PHOTO INDICATION
1
1 DC Iris Port
2 Ethernet Port
3 DC 12V Power Input
4 Reset Button
ACCESSORY OPTIONS
Lens
PLEN-0205
PLEN-0212
Popular Mounting Solutions
Corner PMAX-0200/
PMAX-0201
PMAX-1101
PMAX-0402
Pole PMAX-0200/
PMAX-0201
PMAX-1101
PMAX-0502
* For more mounting solutions, please refer to Mounting Accessory section of Buyer's
Guide or Project Planner on www.acti.com
w w w . a c t i . c o m
2
3
7
4
5 6
5 Audio Input / Output
6 MicroSD / MicroSDHC Card Slot
7 Digital Input / Output
IR Compatible, DC Iris,
F1.6, 8 mm - 80 mm, 34.4° - 3.7°
IR Compatible, DC Iris,
F1.2, 3.1 mm - 8 mm,
89.69° - 35.06°
+ +
+ +
* Latest product information: www.acti.com/product/
* Accessory information: www.acti.com/accessory/
H.264 Megapixel IP D/N PoE
• 1/3" Sony EXview HAD Progressive Scan CCD
• Day and night function with mechanical IR cut fi lter
• Minimum illumination 0.05 lux at F1.2
• DC Iris lens supported
• 15 fps at 1280 x 960 resolution
• Selectable H.264, MPEG-4 SP, MJPEG compressions
with dual streaming
• Two-way audio
• Video motion detection
• MicroSD/SDHC card slot for local storage
• Digital input and digital output
• Powered by PoE Class 3 / DC 12V

DIMENSION DIAGRAM

135.6
[5.34"]
Outdoor Housing & Bracket
PMAX-0200
PMAX-0201
PMAX-1101
Camera Bracket
PMAX-1100
CCD Box Camera
82.6
[3.25"]
Unit: mm [inch]
IP66, with heater and fan powered by
110V AC,
-30 °C ~ 50 °C (-22 °F ~ 122 °F), requires
housing bracket
IP66, with heater and fan powered by
220V AC,
-30 °C ~ 50 °C (-22 °F ~ 122 °F), requires
housing bracket
Aluminum, max. load 10 kg (22.05 lb), tilt
angle 90°
(For PMAX-0200, PMAX-0201, PMAX-
0202)
Plastic, max. load 3.5 kg (7.72 lb), tilt
angle 90°
110823
