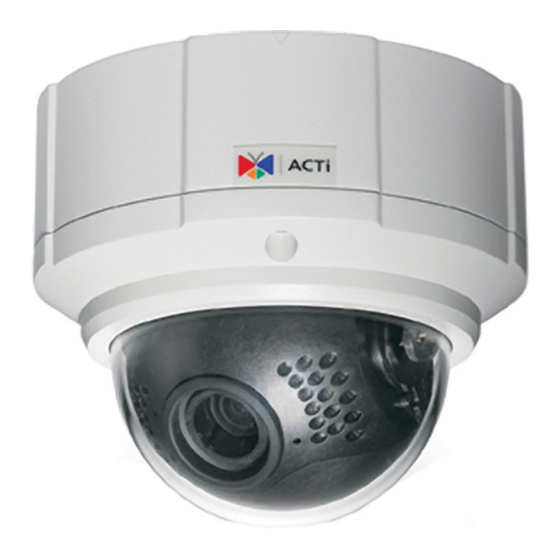

ACTi TCM-7811 User Manual

H.264 megapixel ip ir d/n ccd vandal proof outdoor poe fixed dome
Hide thumbs Also See for TCM-7811:
Table of Contents

Advertisement

Quick Links

Download this manual
TCM-7811
H.264 Megapixel IP IR D/N CCD Vandal Proof
Outdoor PoE Fixed Dome
(DC 12V / PoE)
Ver. 2012/6/25
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299

Advertisement

Table of Contents
loading

Related Manuals for ACTi TCM-7811

Summary of Contents for ACTi TCM-7811

  • Page 1 TCM-7811 H.264 Megapixel IP IR D/N CCD Vandal Proof Outdoor PoE Fixed Dome (DC 12V / PoE) Ver. 2012/6/25 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 2: Table Of Contents

    TCM-7811 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................7 Physical description ................ 9 Installation Procedure Connect the IP Outdoor Rugged Dome ........15 Remove the cover ............... 15 Select cable entrance ............

  • Page 3: Precautions

    TCM-7811 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    TCM-7811 Hardware User’s Manual 1. Introduction Package Contents TCM-7811 Product CD Terminal Blocks for Power, DI/O & Audio Warranty Card Accessories Drill Template www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 5: Features And Benefits

    TCM-7811 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality (15 FPS @ SXGA, 1280x960) through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system.
  • Page 6 TCM-7811 Hardware User’s Manual Digital Time Code Embedded The “Digital Time Code Embedded” function records video time in the video stream. Therefore, each image frame is marked with its original recording time. It is very useful when users want to find the video at an exact time or between a certain time intervals.

  • Page 7: Safety Instructions

    TCM-7811 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 8 TCM-7811 Hardware User’s Manual Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 9: Physical Description

    TCM-7811 Hardware User’s Manual Physical description 1) LED Indicators There are four Red LED lights numbered from 1 to 4. LED 1 indicates Boot Up status. It will briefly turn on and off during system boot up, and will stay continuously on after camera system completes boot up.
  • Page 10 TCM-7811 Hardware User’s Manual Note: PoE powered rugged dome does not have enough power available and cannot support Heater. 2) Digital Input / Output & Audio Terminal Connector This IP Camera supports DI/O & Audio input / output via terminal block.
  • Page 11 TCM-7811 Hardware User’s Manual Pin Name Description Spec DIO PW Electrically connected in parallel with the con- Voltage: 12V DC, nector for the power supply, this pin provides an Max: 1.2W auxiliary connector for mains power to the unit. This pin can also be used to power auxiliary equipment, with a maximum current of 100mA.
  • Page 12 TCM-7811 Hardware User’s Manual 6) IR LED IR LED lights provide sources of infrared illumination during night mode. This ensures that night time image stays clear even if there’s no visible light. 7) Focus Lever The focus lever controls the distance to the focal plane. You may fix or free the lever by turning the screw handle at the top.
  • Page 13 TCM-7811 Hardware User’s Manual completed. You may then release the reset This will take around 20 seconds from power up. button. This length of time fluctuates slightly with the environment. The Power LED light will come back on and stay on after a few more seconds. The unit will start up with factory default settings automatically.
  • Page 14 TCM-7811 Hardware User’s Manual The Lens Housing sphere has a cover that can be easily opened in two steps. You can lift the cover up by the two ears then slide the cover backwards to expose the interior. www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 15: Installation Procedure

    TCM-7811 Hardware User’s Manual 2. Installation Procedure Connect the IP Outdoor Rugged Dome 1) Remove the cover Remove the dome cover with special hex wrench in the accessory kit. 2) Select cable entrance There are two conduit holes on this rugged dome. One is at the bottom, while the other is at the side and covered with a plug.

  • Page 16: Mount The Ip Outdoor Fixed Dome (Surface)

    TCM-7811 Hardware User’s Manual Mount the IP Outdoor Fixed Dome (Surface) To mount the device to the ceiling, drill three holes that correspond to the three screw holes. Hold the camera against the ceiling, secure it with the three screws, connect the cables and replace the dome cover.
  • Page 17 TCM-7811 Hardware User’s Manual www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 18: Mount The Ip Outdoor Fixed Dome (Flush)

    TCM-7811 Hardware User’s Manual Mount the IP Outdoor Fixed Dome (Flush) www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 19: Mount The Ip Indoor Fixed Dome (Wall)

    TCM-7811 Hardware User’s Manual Mount the IP Indoor Fixed Dome (Wall) www.acti.com VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...

  • Page 20: How To Do The Waterproof Installation

    TCM-7811 Hardware User’s Manual How to Do the Waterproof Installation The following installation procedure makes the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain. The important part to focus on during the installation: The protection of the cabling has to be done by a proper flex conduit.
  • Page 21 TCM-7811 Hardware User’s Manual Scenario 1 – using the side hole. Scenario 2 – using the bottom hole. Screw the body of the conduit gland into the camera and fix it with the lock nut (included in the set of conduit gland that you purchased) from the inside of the camera..
  • Page 22 TCM-7811 Hardware User’s Manual Push the head of the flex conduit, wrapped with sealing insert, into the body of the conduit gland. Screw the clamping nut tightly onto the body of the conduit gland. Adjust the viewing angle and focus of the camera and put the dome cover back on, and tighten it by using the screws.

  • Page 23: Product Specification

    TCM-7811 Hardware User’s Manual Product Specification TCM-7811 Device SONY Progressive Scan 1.25M Pixel Exveiw HAD CCD Size 1/3 inch Image Effective Pixels 1296 (H) x 966 (V) Horizontal Resolution 900TVL Color Color mode automatically switched to B/W (User defined) 0 Lux (IR LED ON)

  • Page 24: Accessing Camera

    TCM-7811 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself.
  • Page 25 TCM-7811 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 26 TCM-7811 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
  • Page 27 TCM-7811 Hardware User’s Manual 12. Wait for 30 seconds, and open IE again to connect to the IP. (In this example, 192.168.0.101). For the second device or more you add into the network, please type the correct IP. 13. Adjust the default Video setting by going to Video & Audio -> Media 1 www.acti.com...
