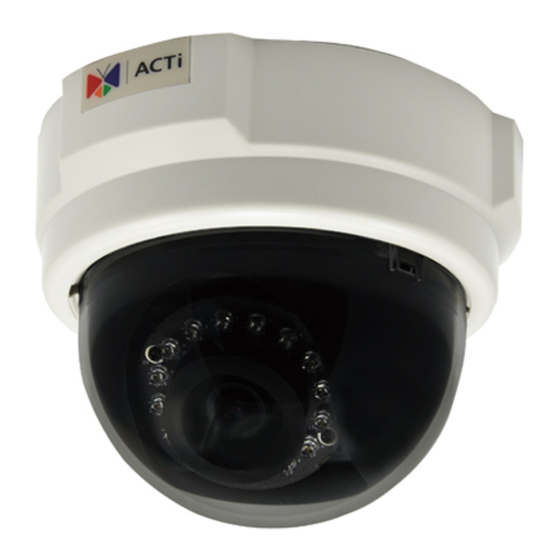

- Page 1 3” Indoor Dome Mounting on the Ceiling with Gang Box (Face Down) Installation Guide For Models: D5x / E5x / TCM-3xxx 2014/01/16...
-
Page 2: Table Of Contents
How to Adjust Focus and Viewing Angle ..........19 D51 / D52 / E51 ..................19 D54 / D55 / E52 / E53 / E54 / E56 / E57 / E58 / E59 ......20 Safety Information ............21 www.acti.com... -
Page 3: Installation Procedures
Step 1: Install the Gang Box Before installation, note that the gang box must be installed with either of the following orientation: Screw Holes from Left to Right Screw Holes from Right to Left 4” Round 4” Octagon www.acti.com... -
Page 4: Step 2: Install The Gang Box Converter
3. Attach the gang box on the surface or inside the surface according to the recommended orientation above. Step 2: Install the Gang Box Converter 1. Route the network cable to pass through the hole of the gang box converter. www.acti.com... - Page 5 Note which screw holes to attach to secure the converter to the gang box. Screw Holes from Left to Right Screw Holes from Right to Left Same screw holes apply when using the 4” round gang boxes. NOTE: Installed gang box converter example is shown below. www.acti.com...
-
Page 6: Step 3: Unpack The Camera
1. Slide the mounting plate counter-clockwise to detach it from the camera. 2. Remove the silicon bag. 3. Slide the dome cover counter-clockwise to remove the cover from the camera. www.acti.com... -
Page 7: Step 4: Attach The Mounting Plate
2. Align the screw holes of the mounting plate to the marked holes on the gang box converter. 3. Attach the mounting plate to the gang box converter using the three (3) screws (included in the camera package). NOTE: Make sure the screw is flat on the plate. www.acti.com... -
Page 8: Step 5: Connect And Install The Camera
1. Connect the network cable to the Ethernet port of the camera and then push the extra length of cable into the gang box. 2. Align and insert the hooks on the camera to the slots on the mounting plate. 3. Slide the camera clockwise until it locks into place. www.acti.com... -
Page 9: Step 6: Access The Camera Live View
Step 8: Close the Dome Cover 1. Align the dome cover shroud to the camera lens, press on the edges of the dome cover and push it into the groove until it clicks into place. 2. Remove the plastic covering the dome cover. www.acti.com... - Page 10 Installation Guide Below is an installation example. www.acti.com...
-
Page 11: Appendices
PC. The user, however, might not know the IP address of the camera yet. It is necessary to know the IP address of the camera in other to be able to access it by using a Web browser. www.acti.com... - Page 12 – by using IP Utility. The IP Utility is a light software tool that can not only discover the cameras, but also list lots of valuable information, such as IP and MAC addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple devices at the same time. www.acti.com...
- Page 13 Installation Guide The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
- Page 14 Installation Guide Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 15 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
- Page 16 When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com...
- Page 17 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
- Page 18 Installation Guide To check the firmware version through the Web Configurator, access the Setup page and click System > System Info. For further operations, please refer to the Firmware User Manual downloadable from the website (www.acti.com). www.acti.com...
-
Page 19: How To Adjust Focus And Viewing Angle
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix the tilt position. 2. Move the rotation adjustment to rotate the viewing orientation. 3. Turn the lens left or right to adjust the focus. www.acti.com... -
Page 20: D54 / D55 / E52 / E53 / E54 / E56 / E57 / E58 / E59
3. Attach the bundled lens focus tuner unto the lens and turn left or right to adjust the focus. NOTE: Focus adjustment is not available for E59 because the camera already comes with fixed focus and fixed viewing angle. www.acti.com... -
Page 21: Safety Information
Do not use attachments not recommended by the video product manufacturer as they may cause hazards. Do not use accessories not recommended by the manufacturer Only install this device in a dry place protected from weather Servicing Do not attempt to service this video product yourself. Refer all servicing to qualified service personnel. www.acti.com... - Page 22 Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...
