30" (76 cm) and 36" (91.4 cm) gas built-in cooktop
Hide thumbs

Advertisement

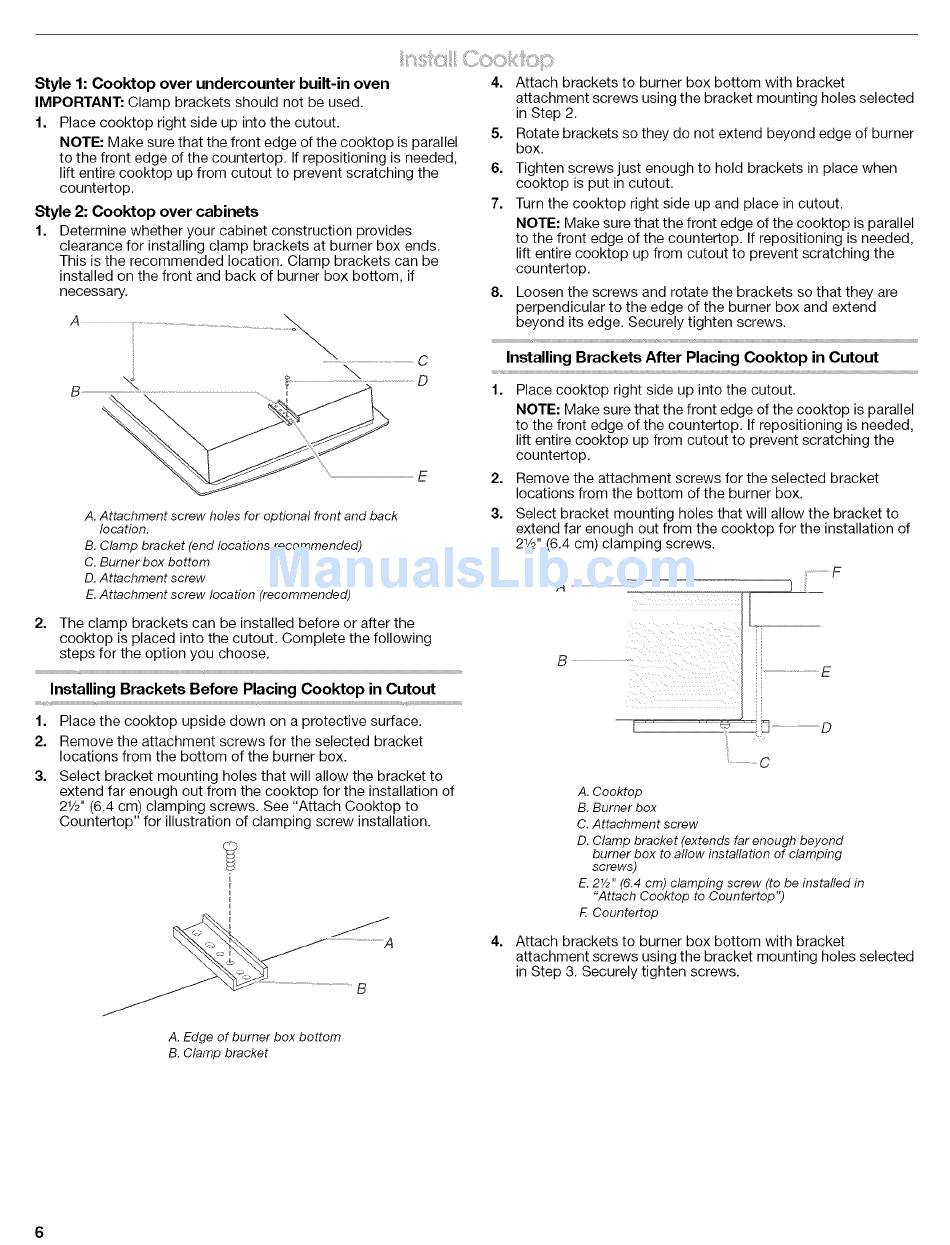

Style 1: Cooktop
over undercounter
built-in oven
IMPORTANT: Clamp brackets should not be used.
1. Place cooktop right side up into the cutout.
NOTE: Make sure that the front edge of the cooktop is parallel
to the front edge of the countertop.
If repositioning is needed,
lift entire cooktop up from cutout to prevent scratching the
countertop.
Style 2: Cooktop
over cabinets
1. Determine whether your cabinet construction provides
clearance for installing clamp brackets at burner box ends.
This is the recommended
location. Clamp brackets can be
installed on the front and back of burner box bottom, if
necessary,
A. Attachment
screw holes for optional front and back
location.
B. Clamp bracket (end locations recommended)
C. Burner box bottom
D. Attachment
screw
E. Attachment
screw location (recommended)
2. The clamp brackets can be installed before or after the
cooktop is placed into the cutout. Complete the following
steps for the option you choose,
Installing Brackets
Before Placing Cooktop
in Cutout
1. Place the cooktop upside down on a protective surface.
2. Remove the attachment
screws for the selected bracket
locations from the bottom of the burner box.
3. Select bracket mounting holes that will allow the bracket to
extend far enough out from the cooktop for the installation of
21/2 '' (6.4 cm) clamping screws, See "Attach Cooktop to
Countertop"
for illustration of clamping screw installation,
A
4. Attach brackets to burner box bottom with bracket
attachment screws using the bracket mounting holes selected
in Step 2.
5. Rotate brackets so they do not extend beyond edge of burner
box.
6. Tighten screws just enough to hold brackets in place when
cooktop is put in cutout.
7. Turn the cooktop right side up and place in cutout.
NOTE: Make sure that the front edge of the cooktop is parallel
to the front edge of the countertop.
If repositioning
is needed,
lift entire cooktop up from cutout to prevent scratching the
countertop,
8. Loosen the screws and rotate the brackets so that they are
perpendicular
to the edge of the burner box and extend
beyond its edge. Securely tighten screws.
Installing Brackets After Placing Cooktop
in Cutout
1. Place cooktop right side up into the cutout.
NOTE: Make sure that the front edge of the cooktop is parallel
to the front edge of the countertop.
If repositioning
is needed,
lift entire cooktop up from cutout to prevent scratching the
countertop.
2. Remove the attachment
screws for the selected bracket
locations from the bottom of the burner box.
3. Select bracket mounting holes that will allow the bracket to
extend far enough out from the cooktop for the installation of
21/2 '' (6.4 cm) clamping screws.
F
A
)
E
__
D
C
A. Cooktop
B. Burner box
C. Attachment
screw
D. Clamp bracket (extends far enough beyond
burner box to allow installation of clamping
screws)
E. 2Y2" (6.4 cm) clamping screw (to be installed in
"Attach Cooktop to Countertop")
F. Countertop
Attach brackets to burner box bottom with bracket
attachment screws using the bracket mounting holes selected
in Step 3, Securely tighten screws.
A. Edge of burner box bottom
B. Clamp bracket
