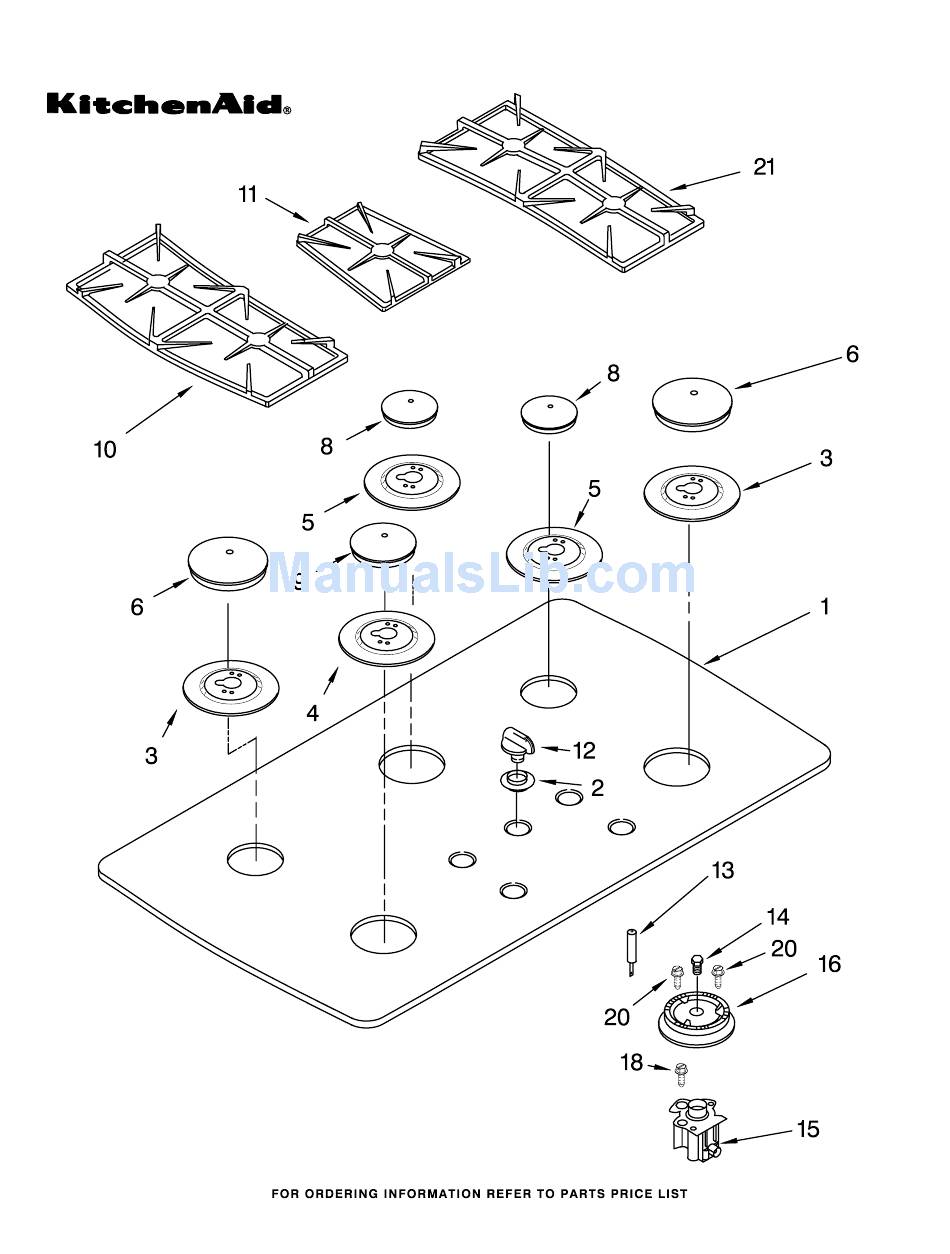

- Page 1 COOKTOP, BURNER AND GRATE PARTS For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1 36" GAS GLASS SURFACE COOKTOP (Black) (White) (Biscuit) 9−00 Litho in U.S.A. (RS) Part No.8185558...
- Page 2 COOKTOP, BURNER AND GRATE PARTS For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cap, (RF)(LR) 9754215 Ignitor Cooktop, Glass 3191729 White Orifice 4455575 White 3191728 Black 3192528 RF − LR 4455573 Black 3192523 Center 3191730 Moleskin 4455576 Biscuit...
- Page 3 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1 (Black) (White) (Biscuit) 8185558...
- Page 4 BURNER BOX, GAS VALVES, AND SWITCHES For Models: KGCC566HBL1, KGCC566HWH1, KGCC566HBT1 (Black) (White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3191557 Rail, Burner 3191336 Harness & Switches 3192603 Burner Box 3191317 Pipe, Manifold 3191324 Tubing, Gas 3190700 Module Spark 3192491 Bracket, Manifold Burner (RF) 3192613 Bracket, Mounting...
