30" (76 cm) and 36" (91.4 cm) gas built-in cooktop
Hide thumbs

Advertisement

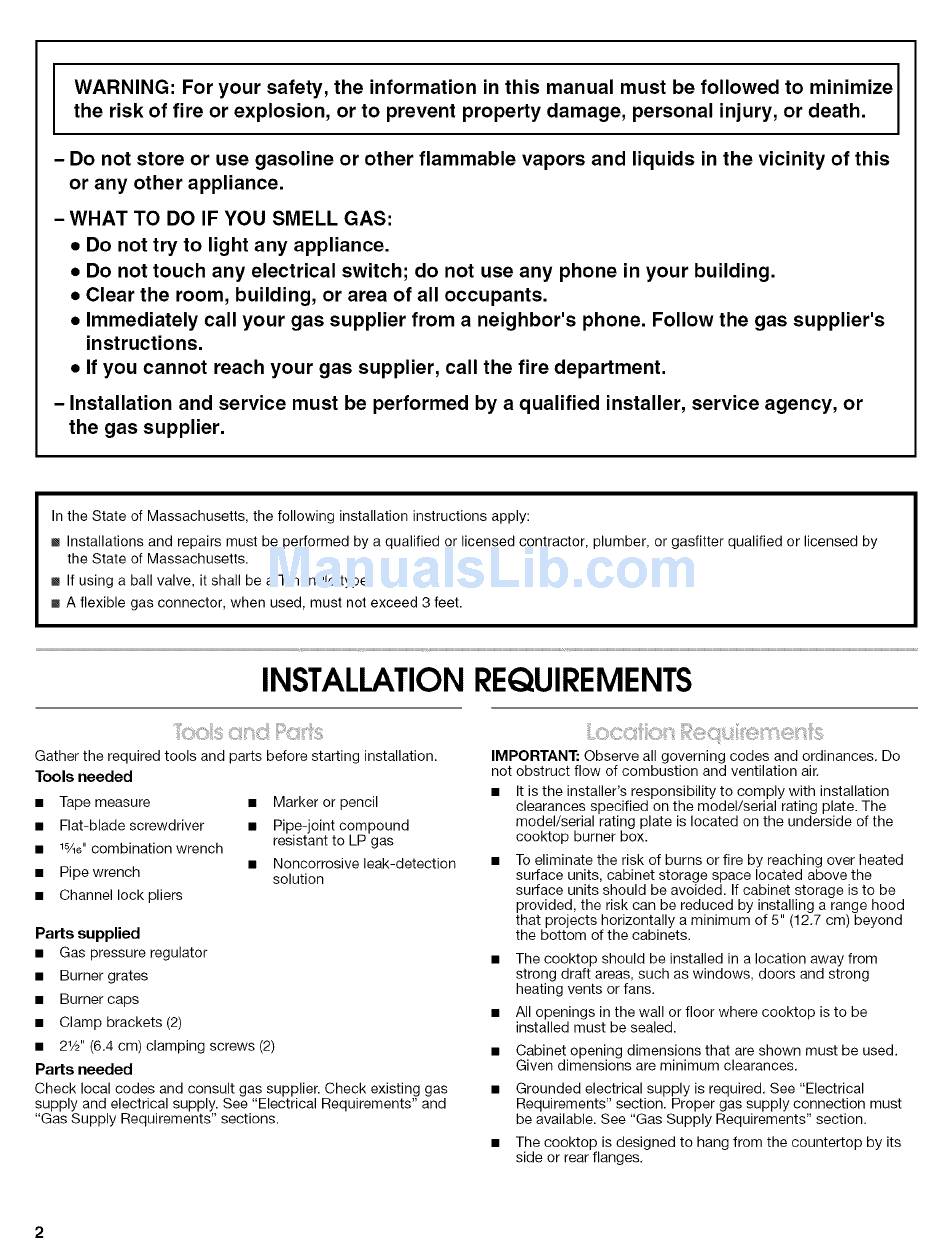

I WARNING: For your safety, the information in this manual must be followed to minimize
the risk of fire or explosion, or to prevent property damage, personal injury, or death.
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical
switch; do not use any phone in your building.
• Clear the room, building,
or area of all occupants.
• Immediately
call your gas supplier
from a neighbor's
phone. Follow the gas supplier's
instructions.
• If you cannot
reach your gas supplier,
call the fire department.
- Installation and service must be performed by a qualified installer, service agency, or
the gas supplier.
In the State of Massachusetts,
the following installation instructions apply:
= Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
= If using a ball valve, it shall be a T-handle type.
= A flexible gas connector, when used, must not exceed 3 feet.
INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation.
Tools needed
Tape measure
Flat-blade screwdriver
1%6"combination
wrench
Pipe wrench
Channel lock pliers
Marker or pencil
Pipe-joint compound
resistant to LP gas
Noncorrosive leak-detection
solution
Parts supplied
Gas pressure regulator
Burner grates
Burner caps
Clamp brackets (2)
21/2 '' (6.4 cm) clamping screws (2)
Parts needed
Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See "Electrical Requirements"
and
"Gas Supply Requirements"
sections.
IMPORTANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
It is the installer's responsibility to comply with installation
clearances specified on the model/serial
rating plate. The
model/serial rating plate is located on the underside of the
ceoktep burner box.
To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5" (12.7 cm) beyond
the bottom of the cabinets.
The cooktop should be installed in a location away from
strong draft areas, such as windows, doors and strong
heating vents or fans.
All openings in the wall or floor where cooktop is to be
installed must be sealed.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
Grounded electrical supply is required. See "Electrical
Requirements" section. Proper gas supply connection must
be available. See "Gas Supply Requirements" section.
The cooktop is designed to hang from the countertop by its
side or rear flanges.
