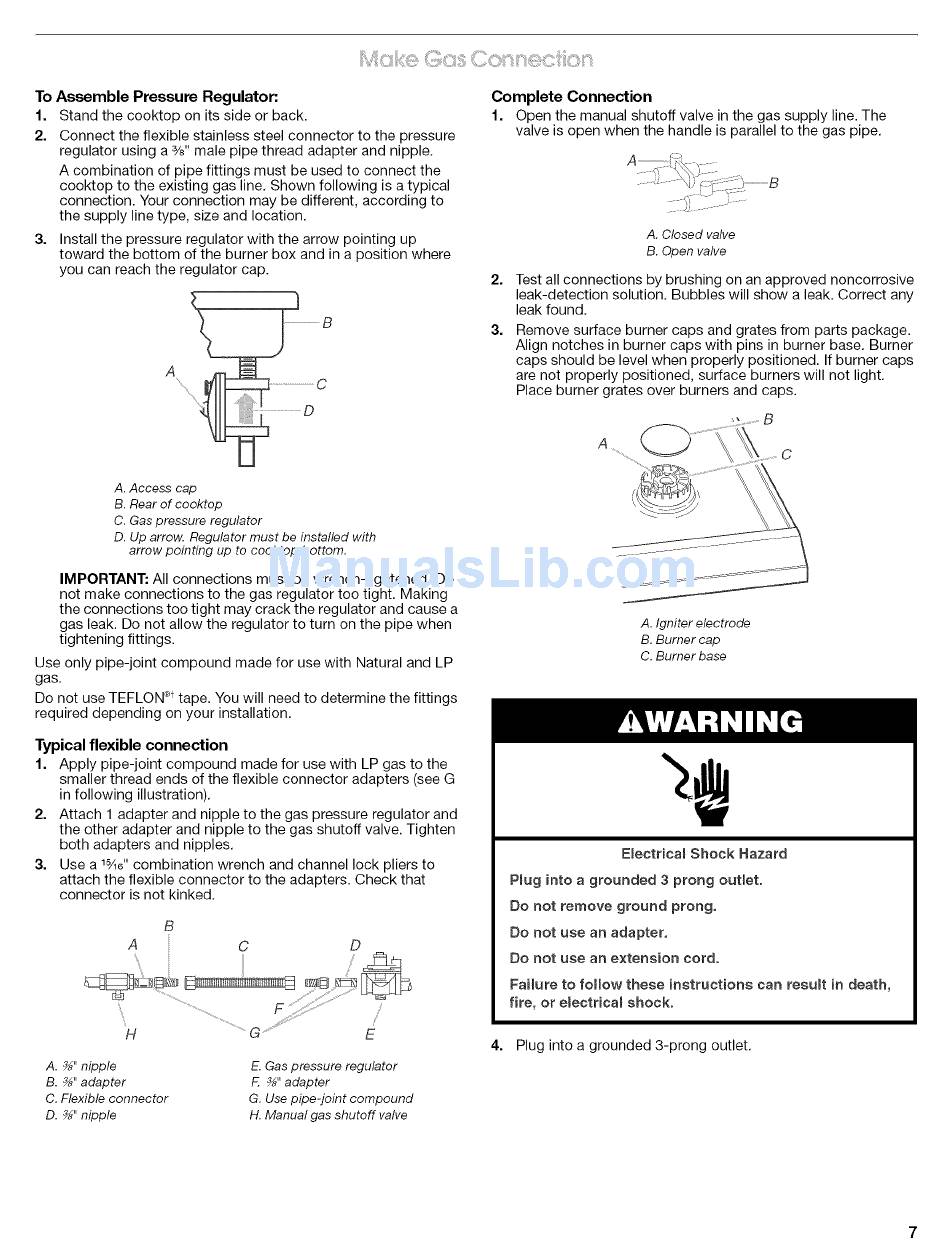

1. Stand the cooktop on its side or back.
2. Connect the flexible stainless steel connector to the pressure
regulator using a %" male pipe thread adapter and nipple.
of pipe fittings must be used to connect the
cooktop to the existing gas line. Shown following is a typical
connection. Your connection may be different, according to
the supply line type, size and location.
3. Install the pressure regulator with the arrow pointing up
toward the bottom of the burner box and in a position where
you can reach the regulator cap.
1. Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
A. Closed valve
B. Open valve
Test all connections by brushing on an approved noncorrosive
solution. Bubbles will show a leak. Correct any
Remove surface burner caps and grates from parts package.
Align notches in burner caps with pins in burner base. Burner
caps should be level when properly positioned. If burner caps
are not properly positioned, surface burners will not light.
Place burner grates over burners and caps.
A. Access cap
B. Rear of cooktop
C. Gas pressure regulator
D. Up arrow. Regulator must be installed with
arrow pointing up to cooktop bottom.
IMPORTANT: All connections must be wrench-tightened.
not make connections to the gas regulator too tight. Making
the connections too tight may crack the regulator and cause a
gas leak. Do not allow the regulator to turn on the pipe when
Use only pipe-joint compound made for use with Natural and LP
Do not use TEFLON ®ttape. You will need to determine the fittings
required depending on your installation.
1. Apply pipe-joint compound
made for use with LP gas to the
smaller thread ends of the flexible connector adapters (see G
in following illustration).
2. Attach 1 adapter and nipple to the gas pressure regulator and
the other adapter and nipple to the gas shutoff valve. Tighten
both adapters and nipples.
3. Use a 1%6" combination
wrench and channel lock pliers to
attach the flexible connector to the adapters. Check that
connector is not kinked.
A. Igniter electrode
B. Burner cap
C. Burner base
Pmug into a grounded
3 prong outlet.
Do not remove ground prong,
Do not use an adapter.
Do not use an extension
Failure to follow these instructions
can resumt in death,
fire, or eJectdcam shock.
A. ¾" nipple
B. _" adapter
C. Flexible connector
D. ¾" nipple
E. Gas pressure regulator
F. _" adapter
G. Use pipe-joint
H. Manual gas shutoff valve
4. Plug into a grounded 3-prong outlet.
