KitchenAid KGCS105GSS Product Dimensions

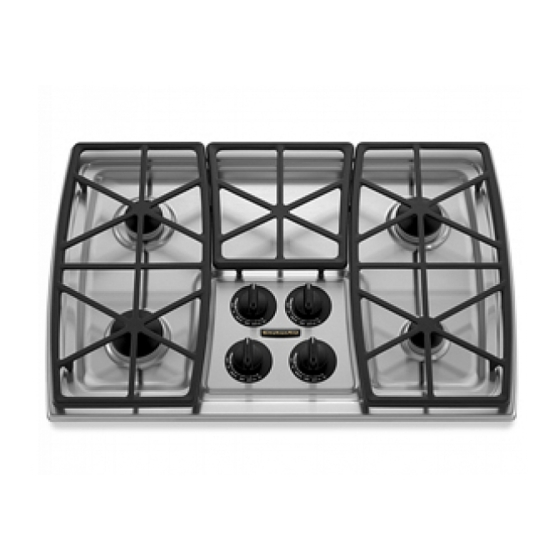

Gas built-in cooktop
Hide thumbs


Advertisement

PRODUCT MODEL NUMBERS
KGCC505H
KGCT055G
KGCC566H
KGCT305G
KGCR055G
KGCT365G
KGCS105G
KGCT366G
KGCS127G
KGCV566M
KGCS166G
Gas supply: Cooktop is equipped for use with
NATURAL gas (except model KGCR055 - L.P. gas
only). Cooktop can be converted to L.P. gas. Gas
supply line of 3/4" rigid pipe to cooktop location. If
local codes permit, a new AGA or CSA design-
certified, 4-5 foot (1.2-1.5 m) long, 1/2" or 3/4"
I.D., flexible metal appliance connector is
recommended for connecting cooktop to gas
supply line. Pressure regulator has 3/8" female
pipe threads. The supply line shall be equipped
with an approved shutoff valve.
Electrical: 120-volt, 60 Hz, AC-only, 15 amp.
electrical supply. Use copper wire only. A time-
delay fuse or circuit breaker and separate circuit is
recommended.
Grommet is required for electrical cable or power
supply cord hole cut in a metal cabinet.
CABINET OPENING DIMENSIONS
See NOTE*
for minimum
clearances.
Do not seal cooktop
to countertop.
24" (61 cm) min. –
deep countertop is
required.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Gas Built-in Cooktop
OVERALL DIMENSIONS
(7.3 cm)
combustible area
above countertop
Gas line opening –
Wall: anywhere 5" (12.7 cm) below
underside of countertop.
Cabinet floor: anywhere within 6" (15.2 cm)
of rear wall is recommended.
15"
(38.1 cm)
15" (38.1 cm)
21"
(53.3 cm)
2-7/8"
21"
(53.3 cm)
2-7/8"
(7.3 cm)
(53.3 cm)
2-7/8"
(7.3 cm)
13" (33 cm)
recommended
upper cabinet
depth
Cooktop width
18" (45.7 cm) min.
clearance upper
15"
cabinet to countertop
(38.1 cm)
within minimum
30"
clearances to cooktop
(76.2 cm)
36"
(91.4 cm)
42"
(106.7 cm) (108.6 cm) (48.3 cm) (106.7 cm) (5.4 cm) (7.3 cm) (28.4 cm)
Important note on base cabinet construction:
After making the countertop cutout, some
installations may require notching down the base
cabinet side walls to clear the burner box. To
avoid this modification, use a base cabinet having
sidewalls wider the cutout.
Gounded outlet –
Locate within 24"
(61 cm) of right rear
corner of cutout.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
21"
(53.3 cm)
2-7/8"
(7.3 cm)
36"
(91.4 cm)
36" (91.4 cm)
43"
(109.2 cm)
42" (106.7 cm)
21"
Illustration dimensions
13-3/4"
19"
(34.9 cm) (48.3 cm) (38.1 cm) (5.4 cm) (7.3 cm) (14.3 cm)
29"
19"
(73.7 cm) (48.3 cm) (76.2 cm) (5.4 cm) (7.3 cm) (14.3 cm)
35-1/4"
19"
(89.5 cm) (48.3 cm) (91.4 cm) (5.4 cm) (7.3 cm) (14.3 cm)
42-3/4"
19"
*
Note: 24" (61 cm) min. clearance if bottom of wood or metal
cabinet is protected by not less than 1/4" (0.6 cm) flame
retardant millboard covered with not less than No. 28 MSG sheet
steel, 0.015" (0.04 cm) stainless steel, or 0.024"(0.06 cm)
aluminum or 0.020" (0.05 cm) copper.
30" (76.2 cm) min. clearance between top of cooking platform
and bottom of unprotected wood or metal cabinet.
30"
(76.2 cm)
30" (76.2 cm)
min.
15"
2-1/8"
2-7/8"
5-5/8"
30"
2-1/8"
2-7/8"
5-5/8"
36"
2-1/8"
2-7/8"
5-5/8"
42"
2-1/8"
2-7/8"
11-1/2"
Minimum distance
to combustible
surface above
countertop
Ref. 4455834 Rev. A
05-12-04
